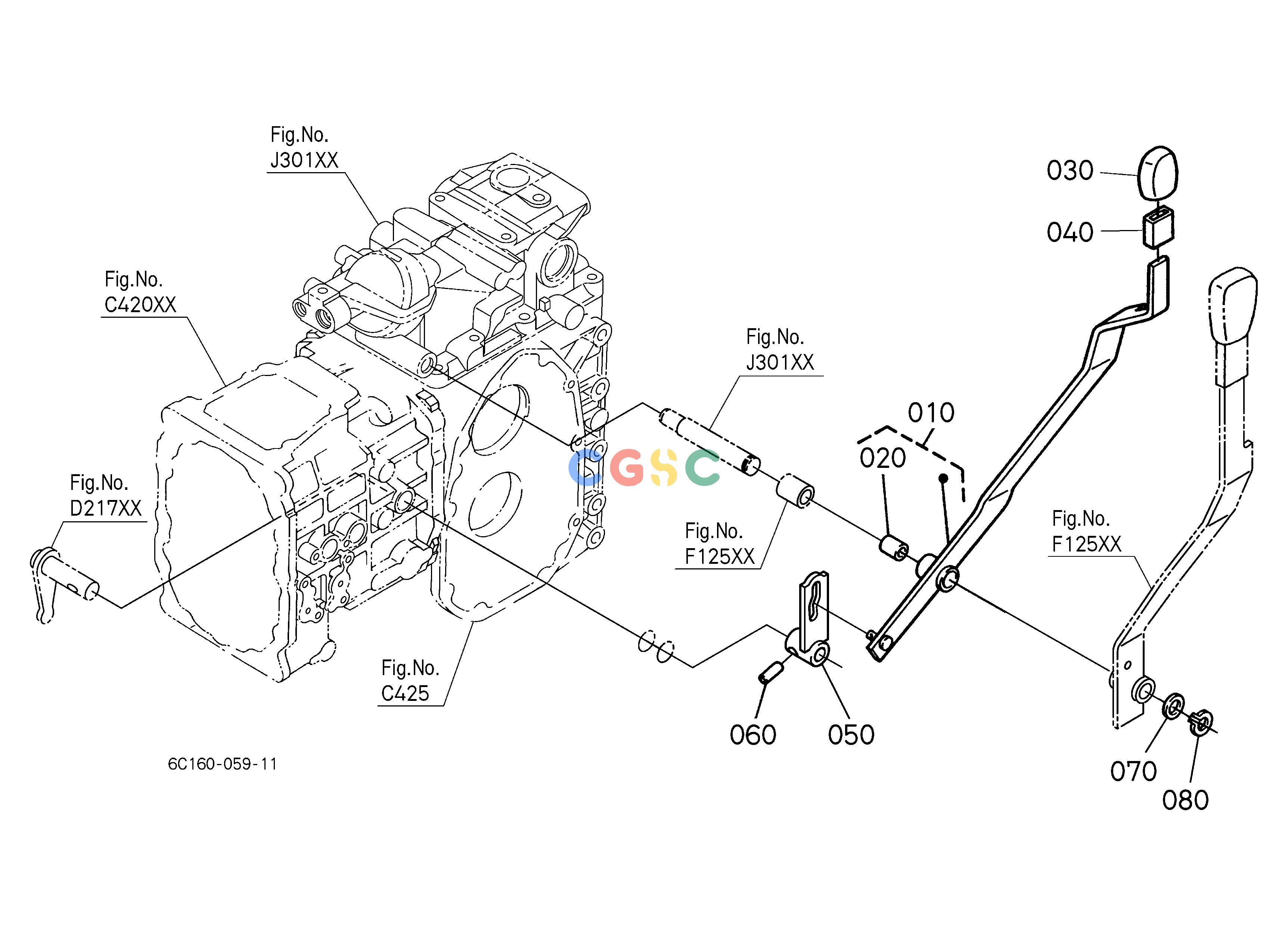

久保田零件查询F11001 RANGE GEAR SHIFT LEVER SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04042600
|
[1] |
LEVER,RANGE SHIFT
|
1.8260(lbs); 0.830
|
| 020. |
0851101825
|
[1] |
BUSH
|
0.0220(lbs); 0.010
|
| 030. |
6A32042630
|
[1] |
GRIP,LEVER
|
0.0418(lbs); 0.019
|
| 040. |
3741043570
|
[1] |
PIPE
|
0.0110(lbs); 0.005
|
| 050. |
6C14042620
|
[1] |
LEVER,SHIFT ARM
|
0.3740(lbs); 0.170
|
| 060. |
0541100832
|
[1] |
PIN,SPRING
|
0.0770(lbs); 0.035
|
| 070. |
0401150180
|
[1] |
WASHER,PLAIN
|
0.0264(lbs); 0.012
|
| 080. |
0461200180
|
[1] |
CIR-CLIP, EXTERNAL
|
0.0022(lbs); 0.001
|
