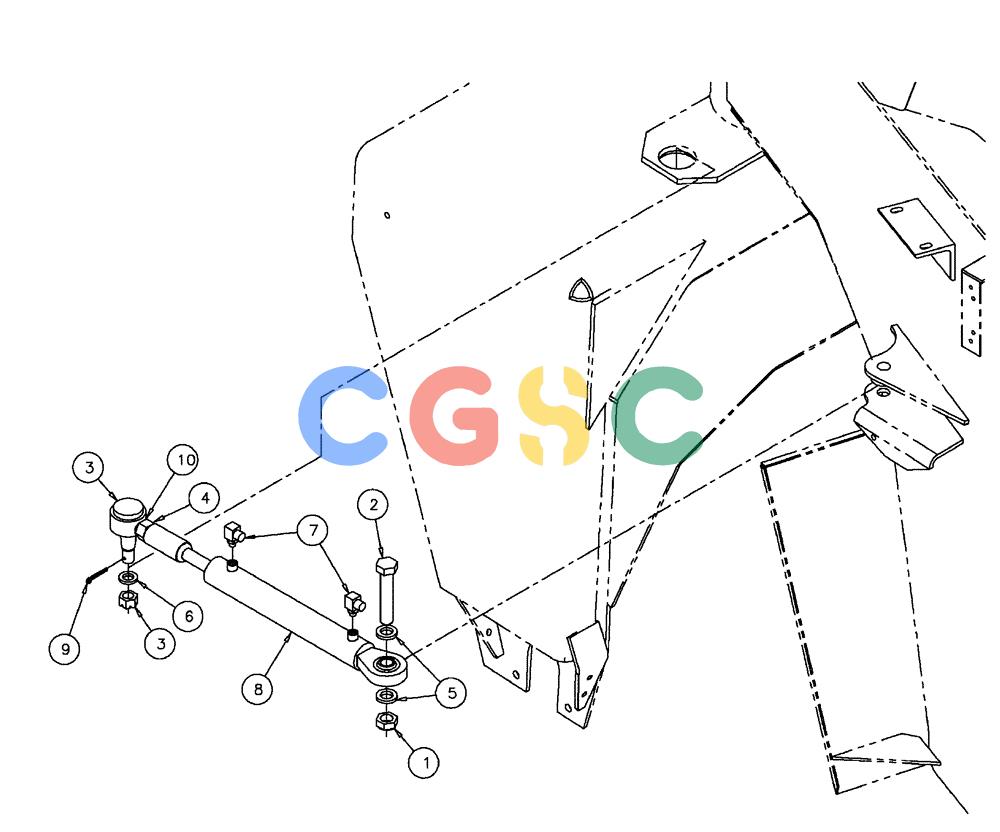

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (06-006) - STEERING CYLINDER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
232-46416
|
[1] |
NUT
|
BN
1-12, TLN, CL8 Superseded by part number: 87343997
|
| 2. |
428-1680
|
[1] |
BOLT,Hex, 1" - 14 x 5", Gr 8
|
BN
1-12 X 5, HH, G8
|
| 3. |
BN2290206
|
[1] |
STUD
|
BN
Ball, End L24-Sv
|
| 4. |
BN320210
|
[1] |
JAM NUT
|
BN
1 1/8"-12, Jam
|
| 5. |
BN2298333
|
[2] |
WASHER
|
BN
Hardened 1 WA1772
|
| 6. |
BN319879
|
[1] |
WASHER
|
BN
7/8, FW, Grade 5
|
| 7. |
BN302557
|
[2] |
FITTING
|
BN
8Mor-6Mbx90
|
| 8. |
344002A1
|
[1] |
CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke
|
BN
hydraulic, 2.00 x 12 x 1.00
|
| 9. |
BN1630444
|
[1] |
COTTER PIN
|
BN
1/8 X 1 1/2
|
