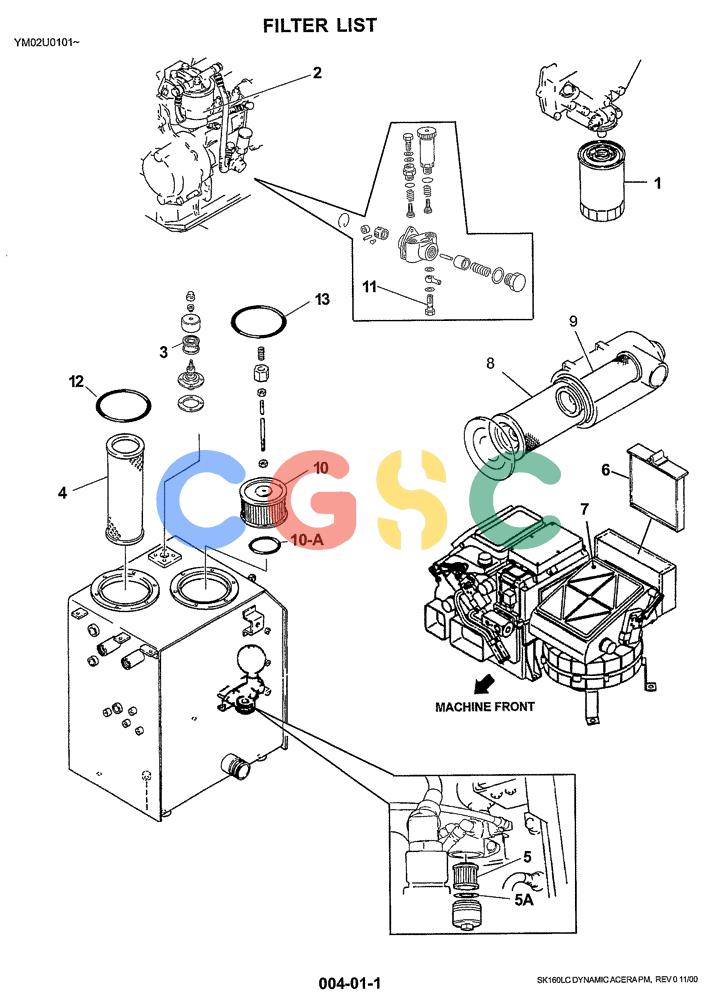

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (00-001) - FILTER LIST Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
511 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84218257 | [1] | FILTER | BRREngine Oil Element |
| 2. | VAME016823 | [1] | ELEMENT | KOBENG FUEL, APPLICABLE: (VAME016823) Superseded by part number: 2451R124-2A |
| 3. | YN57V00002S010 | [1] | ELEMENT | KOBHYD BREATHER Superseded by part number: 47640920 |
| 4. | YR50V00004P1 | [1] | HYDRAULIC OIL FILTER | KOBReturn (Std Tank) Superseded by part number: YR50V00004P1P |
| 4. | YV50V00001P1 | [1] | ELEMENT | KOBReturn (N & B Tank) |
| 5. | YN50V01001S005 | [1] | ELEMENT | KOBPILOT (MANIFOLD) Superseded by part number: 84565888 |
| 5A. | YN50V01001S007 | [1] | O-RING,2.5mm Thk x 53mm ID, 90 Duro | KOB Superseded by part number: 2446U346S5 |
| 6. | YN50V01006P1 | [1] | ELEMENT | KOBA/C (FRESH) (not HEPA) Superseded by part number: YN50V01006P1P |
| 7. | YT20M00004S050P | [1] | AIR FILTER | KOBA/C (RECYL) (not HEPA) |
| 8. | 2446R277S5 | [1] | AIR FILTER | KOBOUTER AIR |
| 9. | 2446R277S6 | [1] | AIR FILTER | KOBINNER AIR |
| 10. | YN50V00002S001 | [1] | STRAINER ASSY. | KOBHYD SUCTION, Remarks: (INCLUDES 10A) |
| 10A. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| 11. | VAME717651 | [1] | SPOOL | KOBFUEL GAUSE |
| 12. | ZD11P14000 | [1] | O-RING | KOB |
| 13. | ZD11G16500 | [1] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
