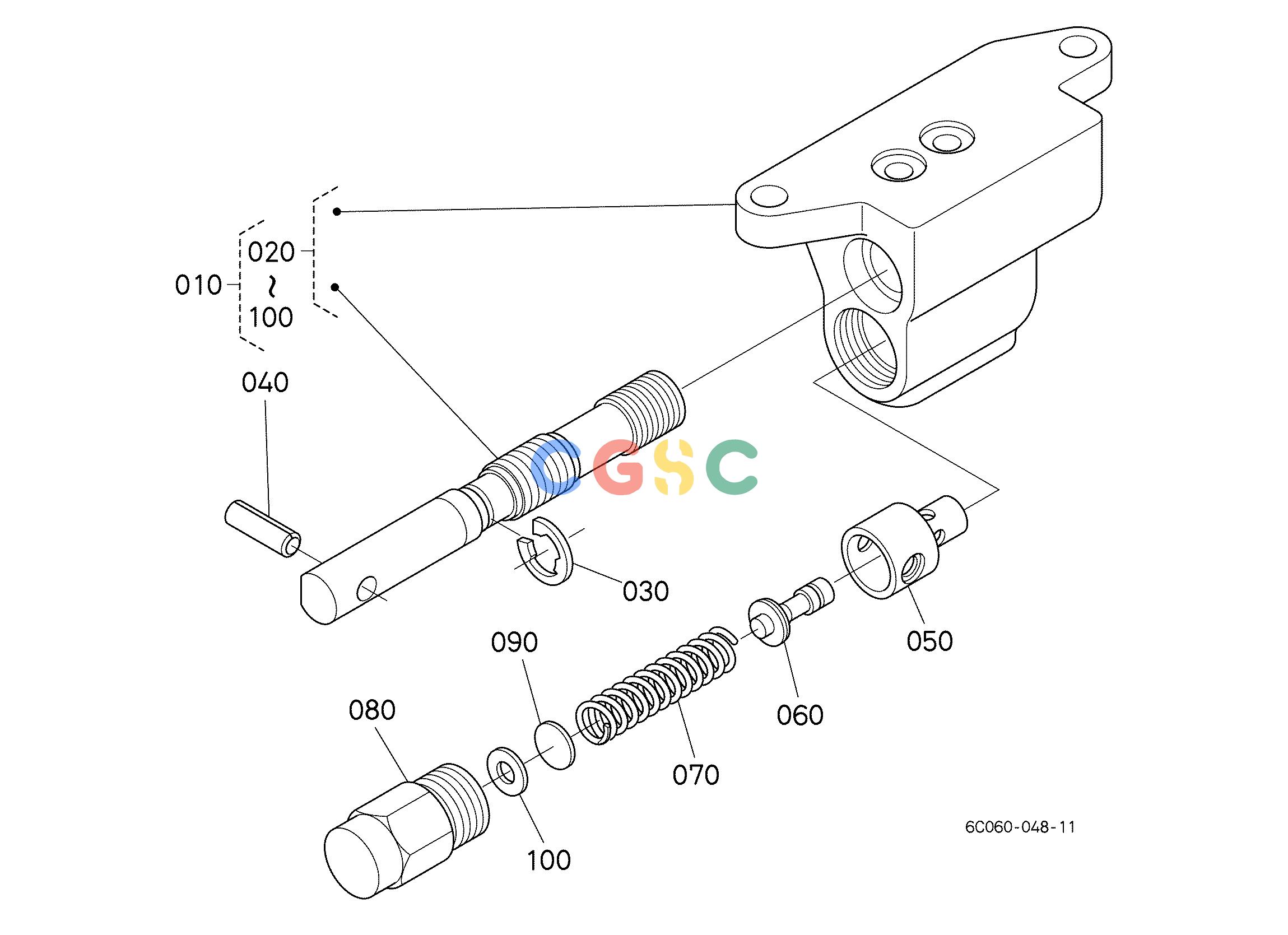

久保田零件查询J41001 CONTROL VALVE [COMPONENT PARTS] PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 020. |
YW17600100
|
[1] |
ASSY VALVE,CONTROL
|
1.9800(lbs); 0.900
|
| 030. |
YW17650100
|
[1] |
ASSY BODY-SPOOL
|
1.7380(lbs); 0.790
|
| 040. |
0461350090
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 050. |
0541100620
|
[1] |
ROLLER PIN
|
0.0044(lbs); 0.002
|
| 060. |
3135137930
|
[1] |
SEAT(RELIEF VALVE)
|
0.0352(lbs); 0.016
|
| 070. |
3135137941
|
[1] |
POPPET
|
0.0000(lbs); 0.000
|
| 070. |
YT45000220
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 080. |
3135137920
|
[1] |
SPRING,RELIEF
|
0.0440(lbs); 0.020
|
| 090. |
YW17600310
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 100. |
3135137970
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 100. |
3135137960
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 100. |
3135137950
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 110. |
0401350050
|
[2] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
