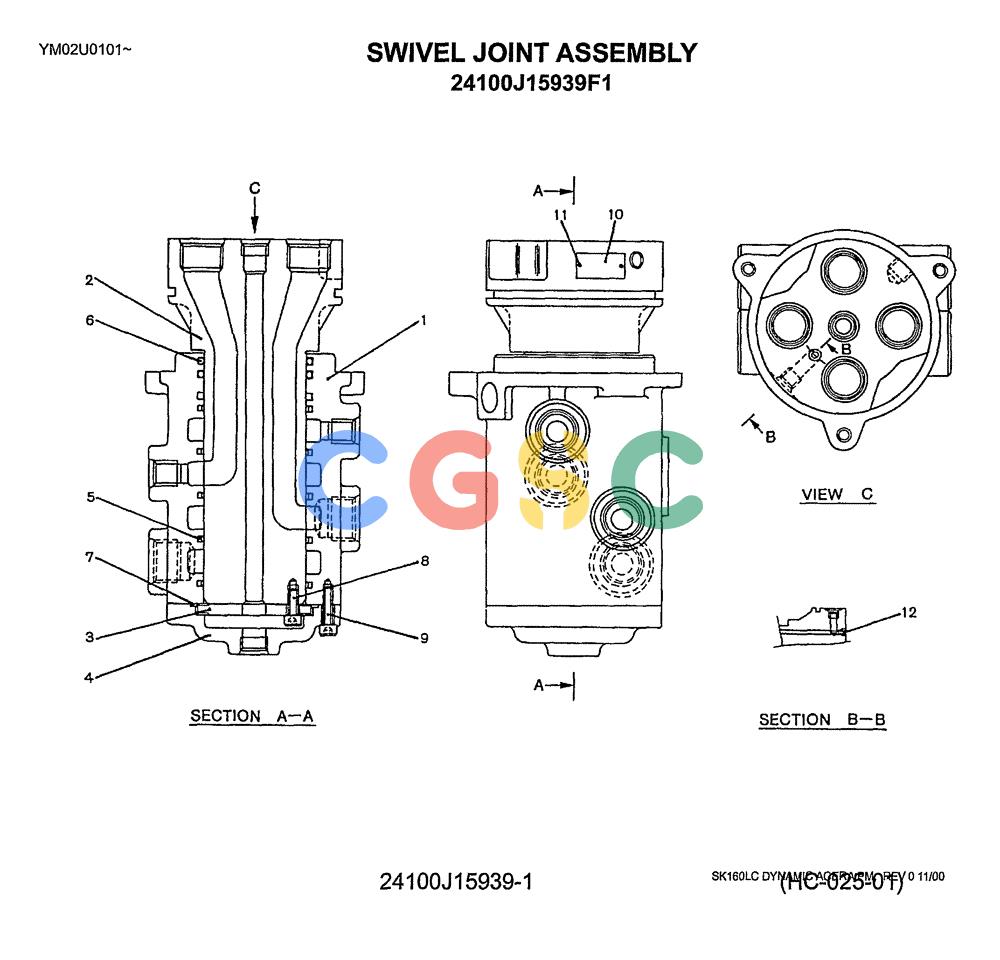

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-001) - SWIVEL JOINT ASSY P/N 24100J15939F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
569 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J15939F1 | [1] | FLEXIBLE JOINT | KOB Superseded by part number: 24100J15939F2 |
| 1. | NA | [1] | NOT SERVICED | FORBODY |
| 2. | 2410J268 | [1] | STEM | KOB |
| 3. | 2414T1991 | [1] | THRUST PLATE | KOB Superseded by part number: YN55V01115P1 |
| 4. | 2414P2980 | [1] | COVER | KOB |
| 5. | 2445Z736 | [5] | GASKET | KOBSEAL ASSY |
| 6. | 2445R152D1 | [2] | O-RING,5.7mm Thk x 79.6mm ID, 70 Duro | KOBID 79.6 ± 0.40 x OD 91mm |
| 7. | ZD11G09500 | [1] | O-RING,94.40mm ID x 100.60mm OD x 3.10mm | KOBID 94.40 ± 0.81 x OD 100mm |
| 8. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 9. | ZS23C08030 | [4] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 10. | 2432T2293 | [1] | TYPE PLATE | KOB Superseded by part number: YN22T00194P1 |
| 11. | 2420Z1036D3 | [2] | CLEVIS | KOB2.2x4.6mm |
| 12. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT |
