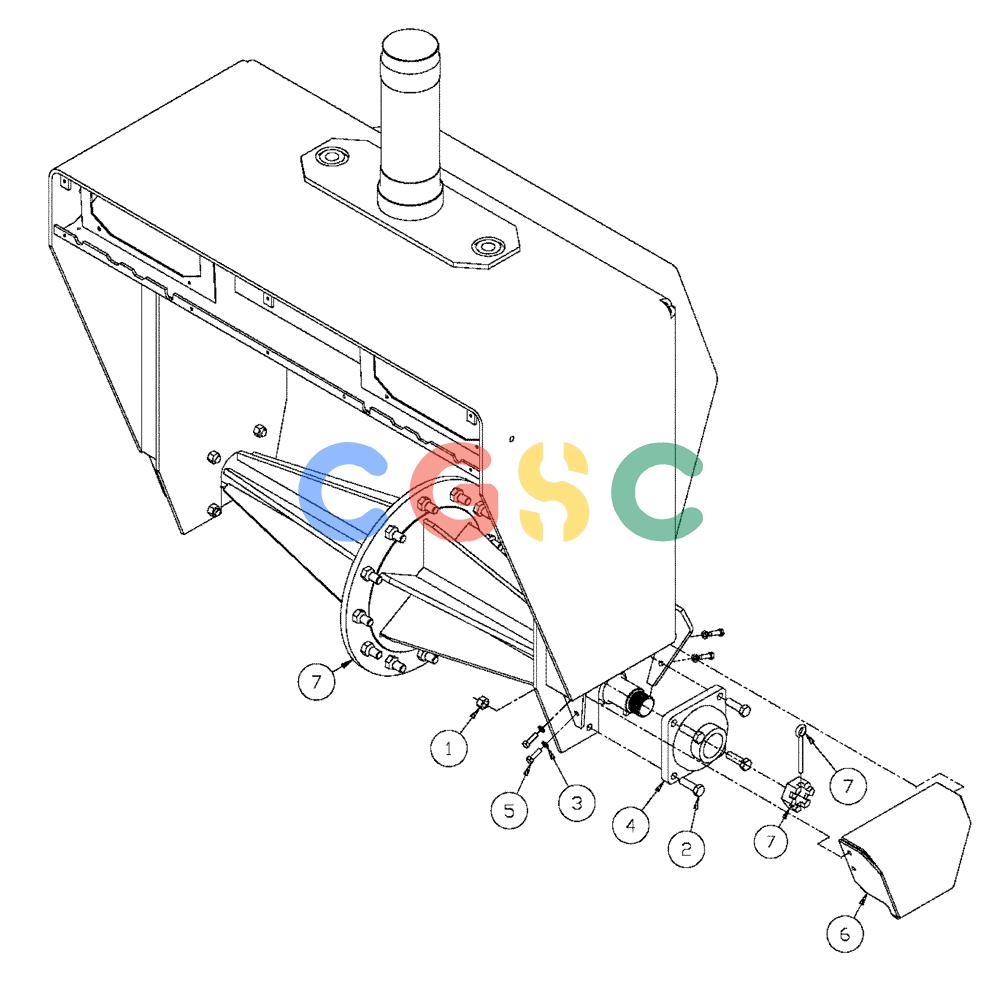

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (04-001) - FRONT AXLE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
324 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87310322
|
[8] |
NUT
|
BN
Hex, 5/8-11, GB, DOR
|
| 2. |
BN1913644F
|
[8] |
HH 5/8-18 X 2 NF G8
|
|
| 3. |
BN2303412
|
[8] |
LOCK WASHER
|
BN
3/8 Superseded by part number: 80680
|
| 4. |
BN321318
|
[2] |
FLANGED BEARING
|
BN
Flanged MSF-39
|
| 5. |
BN50403
|
[8] |
BOLT
|
BN
Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 413-620
|
| 6. |
BN7136046
|
[2] |
BEARING COVER
|
BN
Front Axle Bearing
|
| 7. |
BN7136030
|
[1] |
CENTER AXLE
|
TYR
Front Assembly
|
