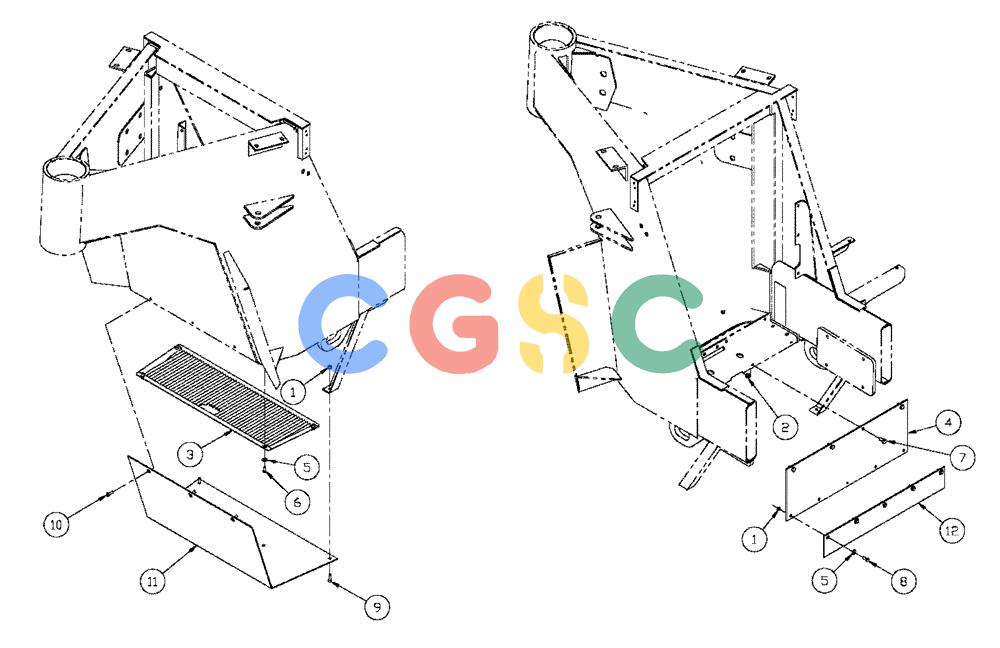

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (04-010) - LOWER BAFFLE COMPONENTS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN305104
|
[7] |
FLANGE NUT
|
BN
3/8-16, FLN, G8 Superseded by part number: 329-286
|
| 2. |
BN300407
|
[4] |
FLANGE NUT
|
BN
Flg, 1/2"-13, G8
|
| 3. |
BN315691
|
[1] |
Bottom Rad, Complete
|
|
| 3. |
BN316729
|
[1] |
BAFFLE
|
BN
Bottom Rad, (Flex-Air)
|
| 4. |
BN313958
|
[1] |
BAFFLE
|
TYR
Lower Radiator
|
| 5. |
BN50145
|
[9] |
WASHER
|
BN
3/8, G5 Superseded by part number: 87529312
|
| 6. |
BN50251
|
[4] |
BOLT
|
BN
3/8"-16 x 3/4, HH, G5, PL Superseded by part number: 86500692
|
| 7. |
87909
|
[4] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
GI
|
| 8. |
BN50367
|
[5] |
BOLT
|
BN
3/8"-16 x 1", G5 Superseded by part number: 413-616
|
| 9. |
BN50403
|
[2] |
BOLT
|
BN
Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 413-620
|
| 10. |
BN55378
|
[3] |
BOLT
|
BN
3/8-16 X 1.0, SK, FH
|
| 11. |
BN7131550
|
[1] |
PLATE
|
BN
Pump Guard
|
| 12. |
BN7136434
|
[1] |
COWLING
|
BN
Rubber, 3WH Lower
|
