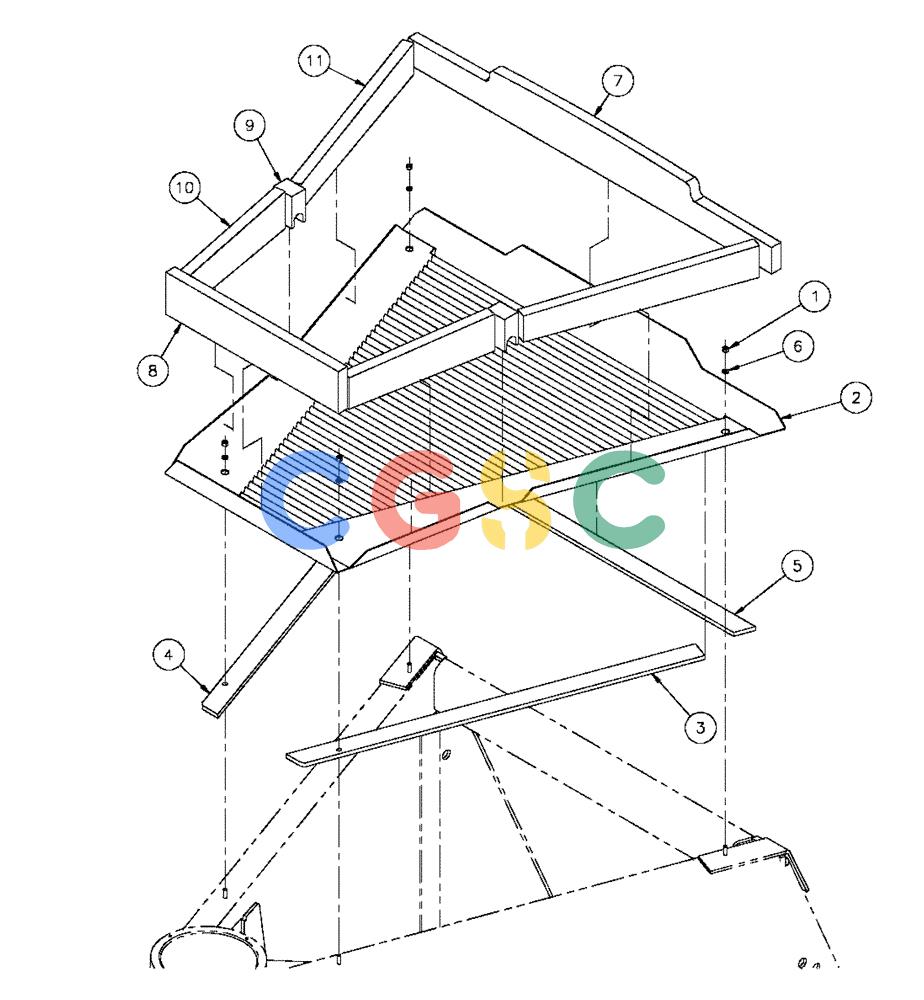

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (04-012) - RADIATOR SCREEN ASSEMBLY-TOP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2294431
|
[4] |
SET SCREW,1/4" - 20
|
BN
1/4-20, FLN, SS
|
| 2. |
BN318007
|
[1] |
SCREEN
|
BN
3-Wheel
|
| 3. |
BN314416
|
[1] |
Top Screen, RS
|
|
| 4. |
BN314417
|
[1] |
Top Screen, CS
|
|
| 5. |
BN314418
|
[1] |
Top Screen, Rear
|
|
| 6. |
BN50138
|
[4] |
WASHER,1/4", SS
|
BN
|
| 7. |
BN318013
|
[1] |
SCREEN
|
BN
Rear
|
| 8. |
BN318014
|
[1] |
SCREEN
|
BN
Front
|
| 9. |
BN318015
|
[2] |
SCREEN
|
BN
Rod
|
| 10. |
BN318016
|
[2] |
SCREEN
|
BN
Side-Short
|
| 11. |
BN318017
|
[2] |
SCREEN
|
BN
Side-Long
|
