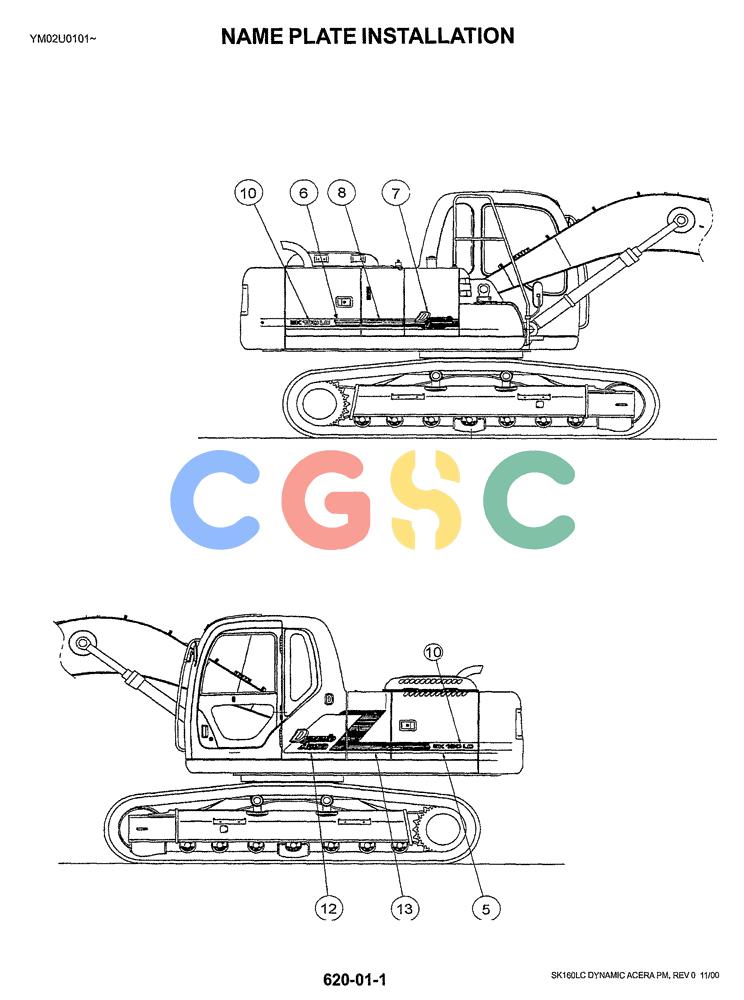

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (06-003[01]) - NAME PLATE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
606 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM22T00001F1 | [1] | NAME PLATE INSTAL | |
| 1. | YM20T01002P1 | [1] | LABEL | KOBLABEL |
| 2. | 2427Z329D2 | [3] | SHEET | KOBAnti-Slip (400x150mm) |
| 3. | 2427Z329 | [4] | SHEET | KOBAnti-Slip (300x150mm) |
| 4. | YN20T01282P1 | [7] | SHEET | KOBAnti-Slip (230x105mm) |
| 5. | YN20T01418D5 | [1] | LABEL | KOBDecal, Strip 1095mm Long (43-7/64 in) |
| 6. | YN20T01418D4 | [1] | LABEL | KOBDecal, Strip 855mm Long (33-21/32 in) |
| 7. | YN20T01420D1 | [1] | LABEL | KOBDecal, Dynamic Acera logo (Right Side) |
| 8. | YN20T01418D3 | [1] | LABEL | KOBDecal, Strip 640mm Long (25-3/16 in) |
| 10. | YM22T00003P1 | [2] | PLATE | KOBNAME PLATE |
| 11. | 2418T27058 | [2] | PLATE | KOBName, (Ø 30mm) |
| 12. | YN20T01317P2 | [1] | LABEL | KOBDecal, Dynamic Acera logo (Left Side) |
| 13. | YN20T01419D1 | [1] | LABEL | KOBDecal, Z Shape |
| 14. | 2432Z927 | [1] | LABEL | KOBDecal, Lubrication Labels Set (One Sheet), Not Illustrated |
