神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (06-004) - NAME PLATE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
509 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

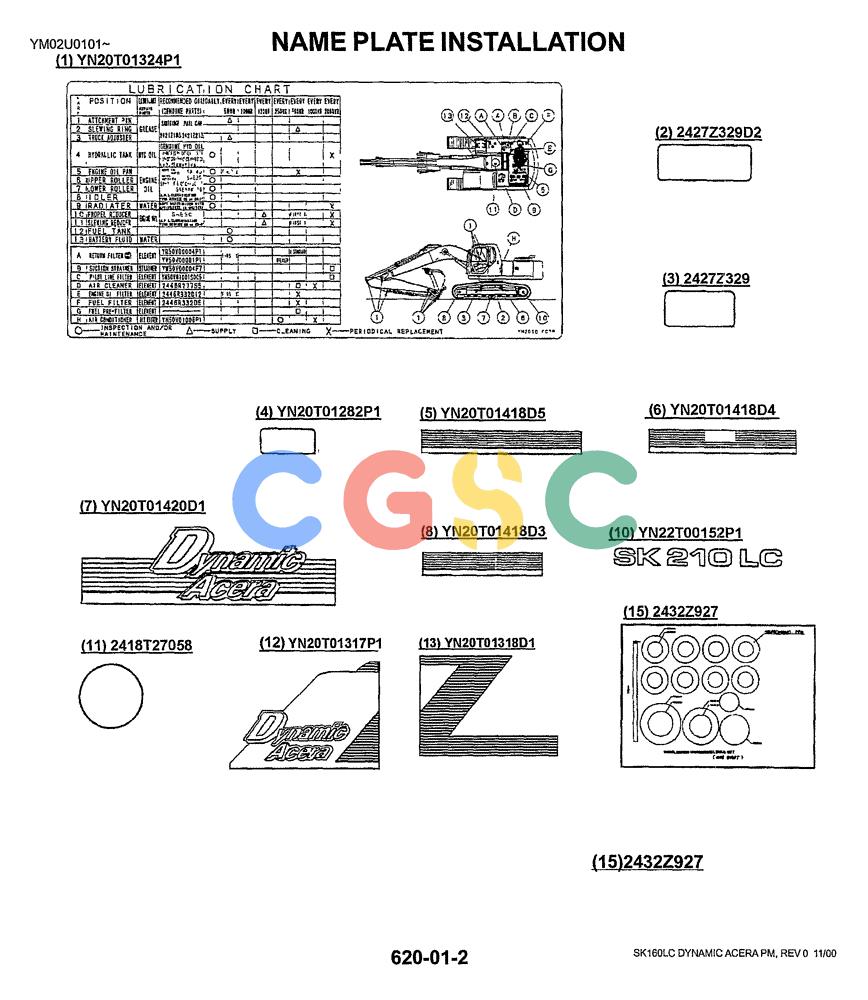

| . . | YN22T00150F2 | [1] | NAME PLATE INSTALLATION | |
| 1. | YN20T01324P1 | [1] | LABEL | KOBLABEL |
| 2. | 2427Z329D2 | [4] | SHEET | KOBAnti-Slip (400x150mm) |
| 3. | 2427Z329 | [6] | SHEET | KOBAnti-Slip (300x150mm) |
| 4. | YN20T01282P1 | [5] | SHEET | KOBAnti-Slip (230x105mm) |
| 5. | YN20T01304D5 | [1] | LABEL | KOBLABEL Superseded by part number: YN20T01418D5 |
| 6. | YN20T01304D4 | [1] | LABEL | KOBLABEL Superseded by part number: YN20T01418D4 |
| 7. | YN20T01325D1 | [1] | LABEL LABEL | LABEL LABEL |
| 8. | YN20T01304D3 | [1] | LABEL | KOBLABEL Superseded by part number: YN20T01418D3 |
| 10. | YN22T00152P1 | [2] | TYPE PLATE | KOBNAME PLATE |
| 11. | 2418T27058 | [2] | PLATE | KOBName, (Ø 30mm) |
| 12. | YN20T01326P1 | [1] | LABEL LABEL | LABEL LABEL |
| 13. | YN20T01318D1 | [1] | LABEL | KOBLABEL Superseded by part number: YN20T01419D1 |
