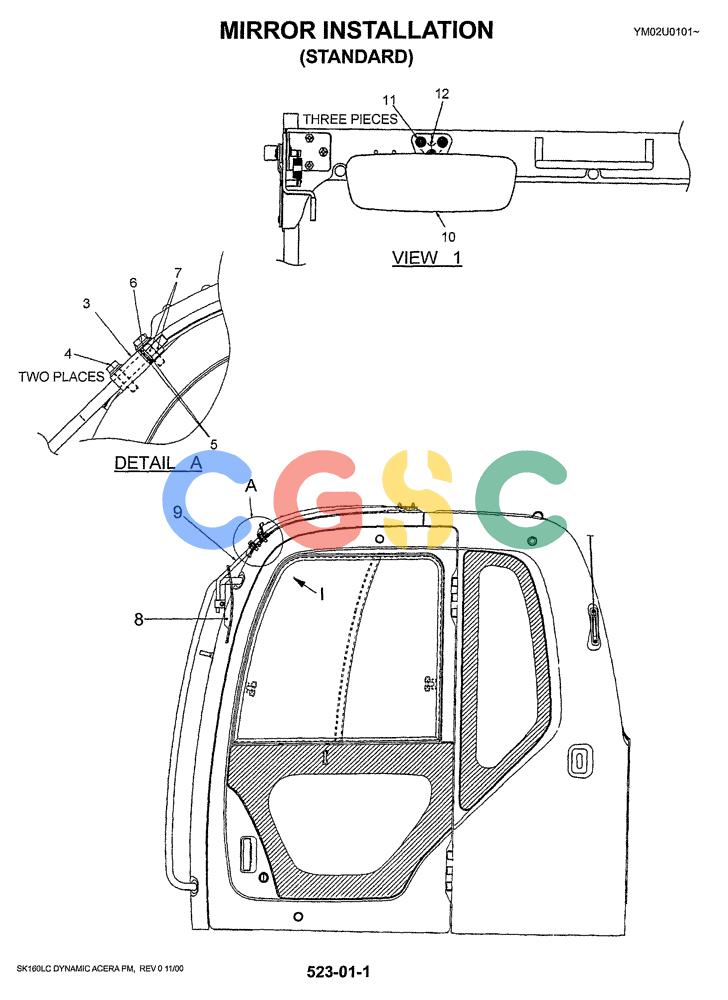

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (05-002) - MIRROR INSTALLATION (STANDARD) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
305 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52C00002F3 | [1] | MIRROR | KOBINSTALLATION |
| 3. | YN02C01762P1 | [1] | BRACKET | KOB |
| 4. | ZM27C10040 | [2] | SCREW | KOBM10x1.50x40mm (Incls. Washer & Lockwasher) |
| 5. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 6. | R16T0137D1 | [2] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 0.9mm |
| 7. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 8. | 2456R351 | [1] | MIRROR | KOB |
| 9. | YN02C01802P1 | [1] | STAY | KOBStay |
| 10. | YN02C01121P1 | [1] | MIRROR | KOB |
| 11. | ZM46C05016 | [3] | BOLT,Phillip, M5 x 0.8 x 15mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
| 12. | YT50C01077P1 | [1] | BLOCK | KOBTAPPED |
