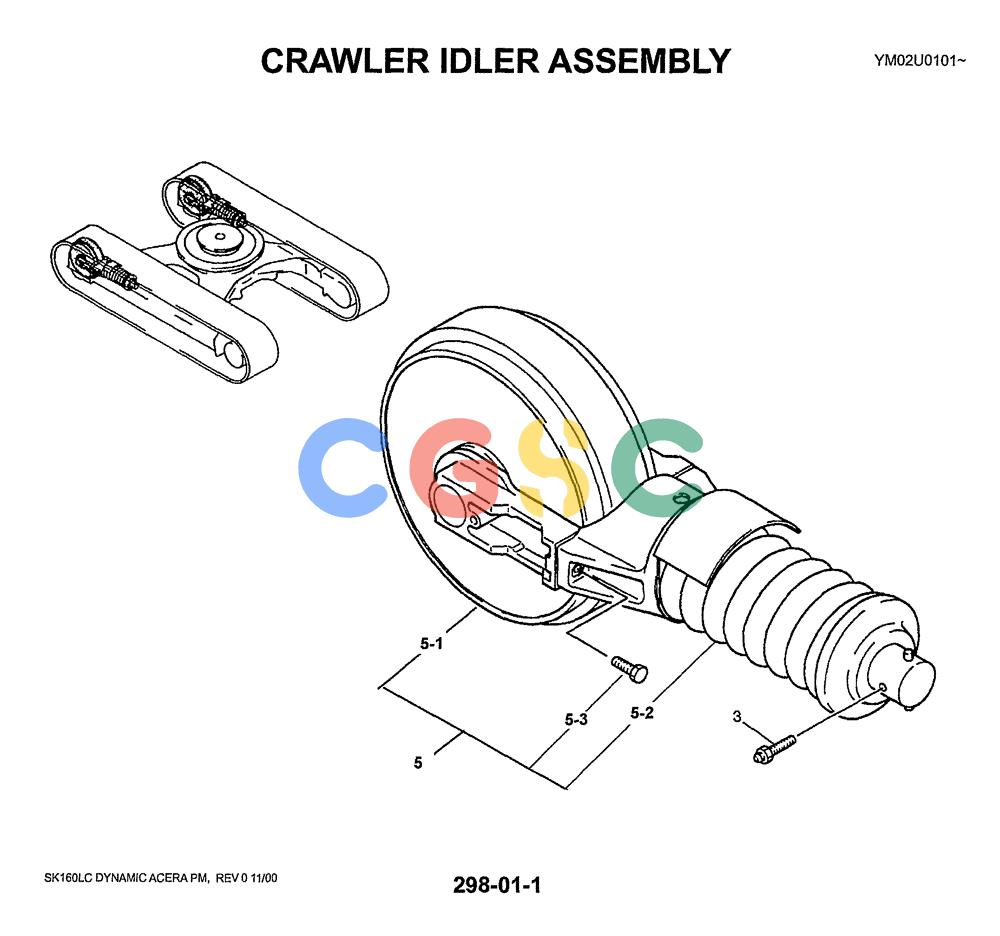

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (02-003) - CRAWLER IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
789 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52D00012F1 | [1] | IDLER | KOBIDLER ASSY, CRAWLER Superseded by part number: YN52D00023F2 |
| 3. | 2444P803 | [2] | LUBE NIPPLE,5/8" - 18 x 64mm L, 19mm Hex | KOB5/8" - 18 UNF, Straight |
| 5. | YN52D00017F1 | [2] | IDLER | KOBIDLER ASSY, CRAWLER Superseded by part number: YN52D00024F2 |
| 5-1. | YN52D00009F1 | [1] | IDLER | KOBASSY, See P. 306-01-1 Superseded by part number: LQ52D00044F1 |
| 5-2. | YN54D00003F1 | [1] | IDLER | KOBADJUST ASSY, See P. 314-01-1 Superseded by part number: YN54D00011F2 |
| 5-3. | ZS13C16045 | [2] | SCREW | KOBScrew -- M16x2.0x45mm |
