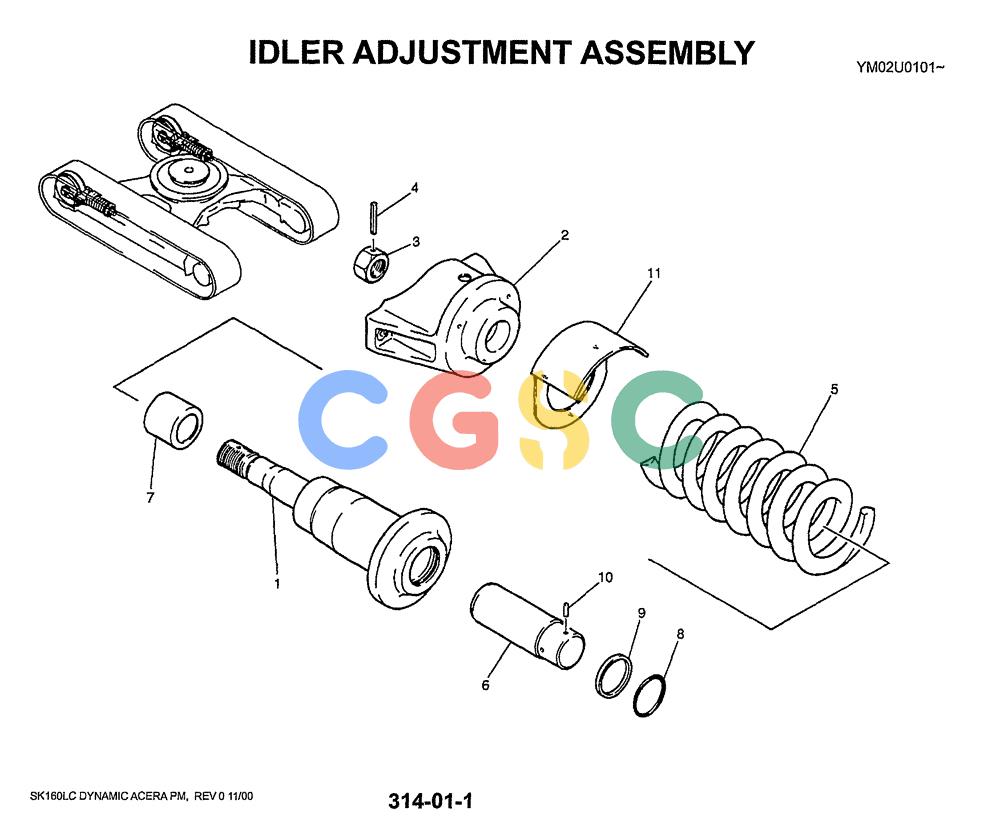

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (02-005) - IDLER ADJUSTMENT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN54D00003F1 | [1] | IDLER | KOBADJUST ASSY Superseded by part number: YN54D00011F2 |
| 1. | YN70V00003P1 | [1] | CYLINDER | KOBGREASE |
| 2. | YN54D01011P1 | [1] | BRACKET | KOB |
| 3. | YN54D01010P1 | [1] | NUT | KOB |
| 4. | ZP26D08080 | [1] | PIN | KOBRoll -- OD 08 x 80mm Long |
| 5. | YN54D01017P1 | [1] | SPRING | KOB Superseded by part number: YN54D01044P1 |
| 6. | 2439P177 | [1] | PISTON | KOB |
| 7. | 2418T21285 | [1] | COLLAR CLAMP | KOB |
| 8. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOBID 79.40 ± 0.69 x OD 85mm |
| 9. | 2418U130D35 | [1] | PACKING | KOBOIL SEAL |
| 10. | 2419T4748 | [2] | PIN | KOB Superseded by part number: LQ54D01023P1 |
| 11. | YN54D01027P1 | [1] | COVER | KOB |
