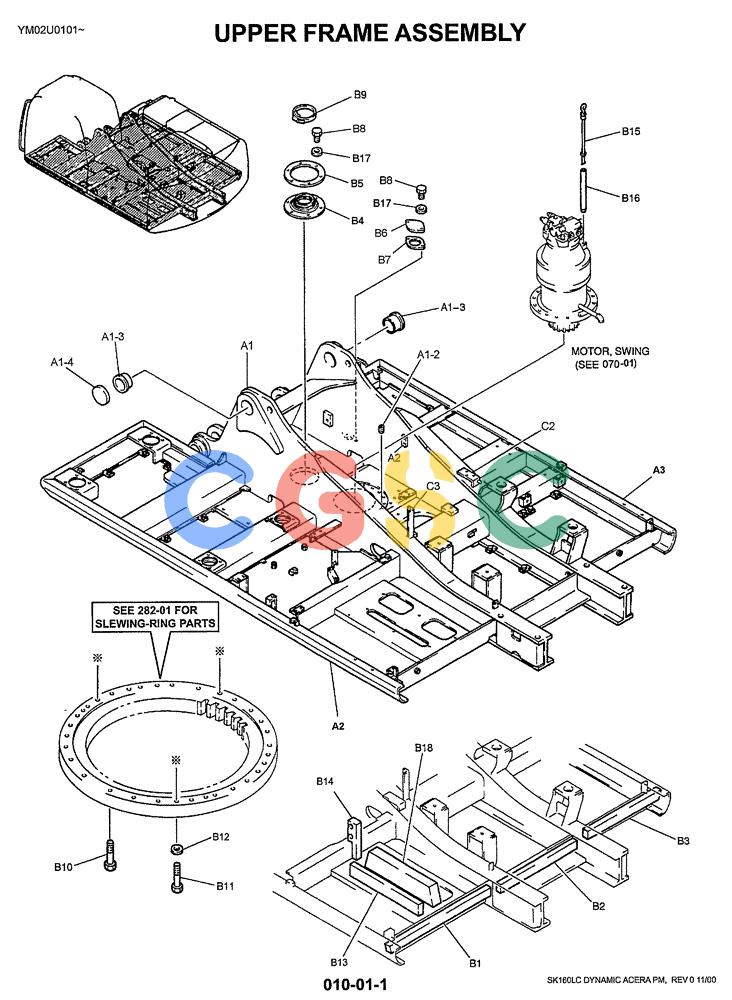

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-001) - UPPER FRAM ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
460 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM52F00008P1 | [1] | FRAME, UPP ASSY | FRAME, UPP ASSY |
| A1. | YM52F00004F1 | [1] | CENTER SECTION | |
| A1-2. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
| A1-3. | YM52F01012P1 | [2] | BUSHING | KOBID 85 x OD 100 x 56mm Long Flange 118mm |
| A1-4. | 2414T2784 | [1] | COVER | KOBID 95 X OD 146.4 x Th 06mm |
| A2. | YM53F00003P1 | [1] | DECK, LH | |
| A3. | YM53F00002P1 | [1] | DECK, RH | |
| . . | YM52F00006F1 | [1] | FRAME GROUP, UPPER | |
| B1. | YM52F01017P1 | [1] | FOAM INSULATION | KOB |
| B2. | YM52F01018P1 | [1] | INSULATING PANEL | KOB |
| B3. | YM52F01019P1 | [1] | FOAM INSULATION | KOB |
| B4. | LQ52F01081P1 | [1] | SEAL | KOB |
| B5. | YN52F01158P1 | [1] | PLATE | KOBSEAL |
| B6. | YN52F01159P1 | [1] | PLATE | KOB |
| B7. | 2416Z434 | [1] | PACKING | KOBRubber |
| B8. | ZS18C10020 | [8] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| B9. | ZC16X14800 | [1] | CLIP | KOBClamp, Hose -- Min 130 x Max 166mm |
| B10. | YN64D01012P1 | [28] | CAP | KOBScrew -- M20x2.50x100mm Superseded by part number: ZS18C20100 |
| B11. | 2420T4564D2 | [3] | BOLT,M20 x 2.5 x 105mm | KOBReamer, M20x2.50x105mm |
| B12. | ZW13H20000 | [3] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| B13. | YM52F01020P1 | [1] | INSULATING PANEL | KOB |
| B14. | YM52F01022P1 | [1] | INSULATION( 10)N/A | INSULATION( 10)N/A |
| B15. | 2420R561D1 | [1] | DIPSTICK | KOB |
| B16. | 2420T4039C2D7 | [1] | RIGID TUBE | KOB |
| B17. | YN52F01157P1 | [8] | SEAL | KOB |
| B18. | YM52F01021P1 | [1] | INSULATION( 10) N/A | INSULATION( 10) N/A |
