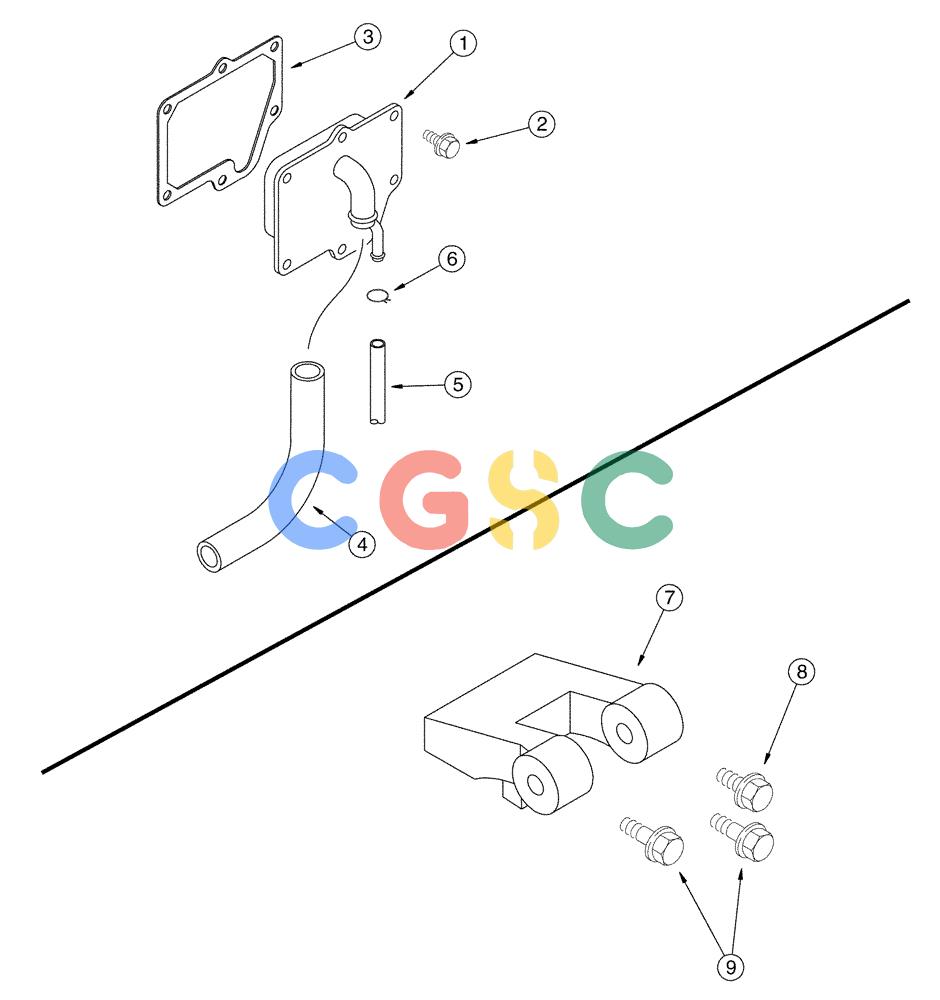

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (02-016) - CRANKCASE, BREATHER (FLX3300B CASE ENGINE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
J944610
|
[1] |
BREATHER
|
CAS
Superseded by part number: 87436828, J948068, 87437056, 86625099, 214-1314, 87437060, J948079, 87437062
|
| 2. |
87015915
|
[6] |
BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd
|
RAC
|
| 3. |
J944683
|
[1] |
GASKET
|
CAS
Mounting Superseded by part number: 87436828
|
| 4. |
J944713
|
[1] |
HOSE,100.00 mm
|
CAS
Superseded by part number: 87437062, 86625099, 87437060, 87437056, 87436828, 214-1314, J948068, J948079
|
| 5. |
J944714
|
[1] |
TUBE,320.00 mm
|
CAS
|
| 6. |
86637700
|
[1] |
HOSE CLAMP,#18, 1 1/8", Spring
|
FAR
|
| 7. |
J944311
|
[1] |
SUPPORT
|
CAS
Bracket Superseded by part number: 87360715
|
| 8. |
9804261
|
[1] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 9. |
844-10030
|
[2] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
