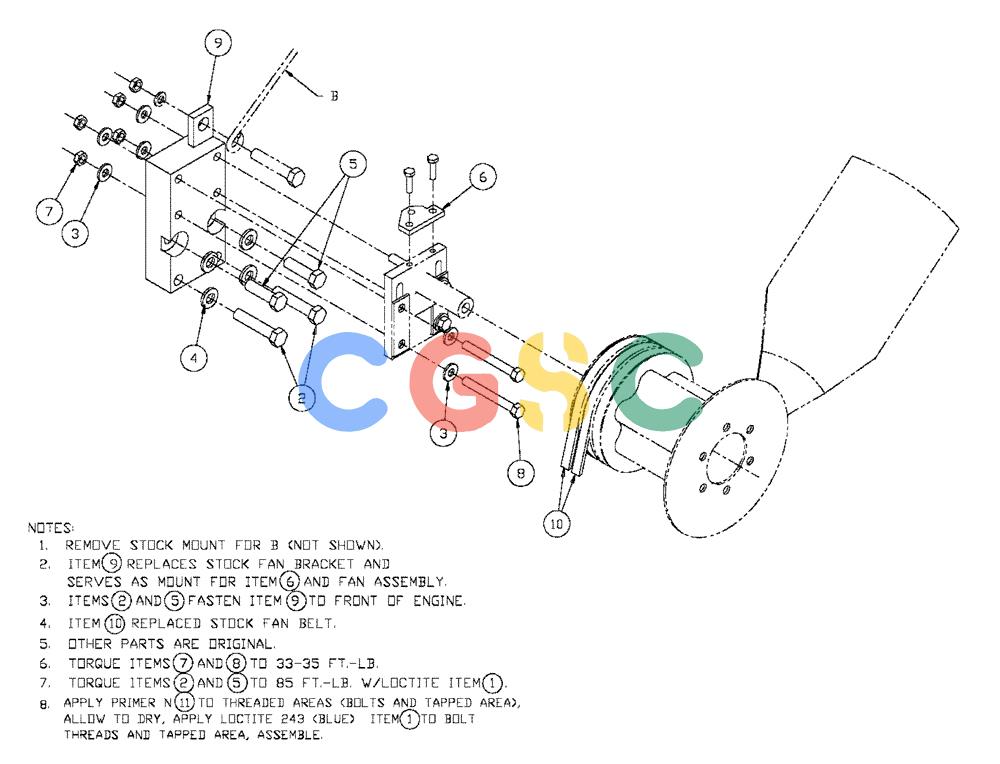

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (02-035) - FAN MOUNTING (FLX3300B CAT ENGINE & FLX3330B) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
678 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
BN1913378C
|
[2] |
BOLT
|
BN
1/2-13 X 2.5, HH, G8 Superseded by part number: 426-840
|
| 3. |
BN2292371
|
[8] |
NUT
|
BN
3/8, FW, G8
|
| 4. |
87529240
|
[4] |
WASHER,0.53" ID x 1.06" OD x 0.13" Thk
|
BN
0.531 x 1.062 x 0.134 HTS DOR HDN
|
| 5. |
BN300169
|
[2] |
SCREW,1/2" - 13 x 1 3/4"
|
BN
1/2"-13 x 1.75, HH, G8
|
| 6. |
BN303781
|
[1] |
FAN
|
BN
Tightener Bracket
|
| 7. |
BN305104
|
[4] |
FLANGE NUT
|
BN
3/8-16, FLN, G8 Superseded by part number: 329-286
|
| 8. |
BN305441
|
[4] |
SCREW,3/8" - 16 x 3 1/4", Gr 8
|
BN
3/8-16 X 3.25, HH, G8
|
| 9. |
BN311318
|
[1] |
MOUNTING PLATE
|
BN
Fan Relocate, 32
|
| 10. |
BN311322
|
[3] |
BELT,3208.00 mm L
|
BN
Fan Drive
|
