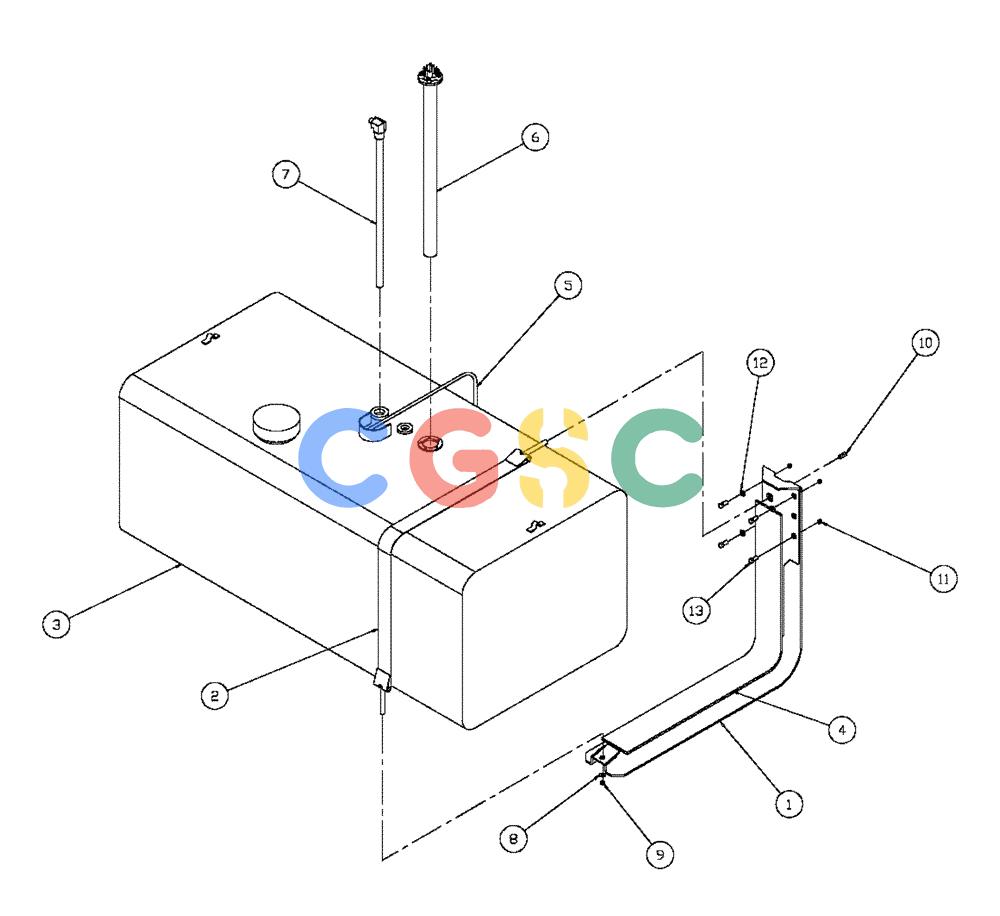

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (02-039) - FUEL TANK GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267439
|
[3] |
BRACKET, SUPPORTING
|
TYR
Fuel Tank
|
| 2. |
BN2395008-002
|
[3] |
STRAP
|
TYR
Assembly, Fuel Tank
|
| 3. |
BN307678
|
[1] |
TANK
|
TYR
Fuel 150 Gallon
|
| . . |
BN2395003-003
|
[1] |
CAP
|
BN
Fuel Cap, 878
|
| . . |
BN2395003-004
|
[1] |
GASKET
|
BN
For Fuel Cap
|
| 4. |
87484460
|
[15] |
BELT,76.67 mm W x 6096.00 mm L
|
BRR
4 Ply, Cut To Fit
|
| 5. |
BN2390873
|
[4] |
HOSE,0.31" ID
|
BN
Fuel, 815-25R
|
| 6. |
BN306489
|
[1] |
ASSEMBLY
|
BN
Fuel Tube Type, 20"
|
| 7. |
BN7133010
|
[1] |
TUBE
|
BN
Fuel P/U
|
| 8. |
BN50155
|
[3] |
WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk
|
BN
5/8", G5
|
| 9. |
BN300407
|
[3] |
FLANGE NUT
|
BN
Flg, 1/2"-13, G8
|
| 10. |
BN2395003-005
|
[3] |
NUT
|
BN
Fuel Tank Strap Superseded by part number: 87343935, 87310599
|
| 11. |
100038
|
[12] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 12. |
BN300500
|
[24] |
WASHER,M12, 10.9
|
BN
Superseded by part number: 86625255
|
| 13. |
86629541
|
[12] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
