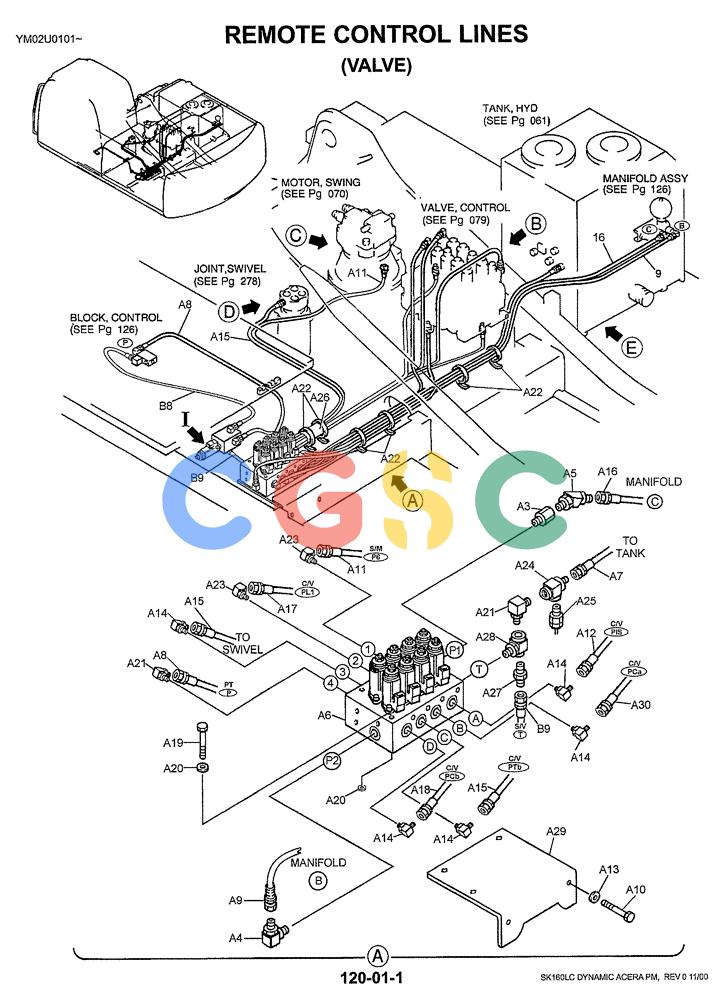

| . . | YM64H00003F1 | [1] | CONTROL LINES, VALVE | |
| A1. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A2. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(PF 3/8)(Incls. O-Ring ZD12P01400) |
| A3. | HH25R06006GE | [1] | ELEC CONNECTOR | KOBw/FILTER (PF 3/8) |
| A4. | HH35X06006G3 | [1] | ELBOW | KOB90° -- 3/8"PFx3/8"PFx42.5mm Long (Incls. O-Ring ZD12P01400) |
| A5. | ZH42X04006 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB45° -- 1/4"PFx3/8"PFx53.5mm Long (Incls. O-Ring 237-6006) |
| A6. | YM35V00002F1 | [1] | SOLENOID VALVE | KOBSee CPM |
| A7. | 2444R1119D160 | [1] | HOSE | KOB(PF 3/8, L= 1600mm) |
| A8. | 2420R537D150 | [1] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB3/8" PF, 1500mm Long (59-1/16 in) Superseded by part number: HX21E06150DX |
| A9. | 2420R537D265 | [1] | FLEXIBLE HOSE,9.60mm ID x 2650mm L | KOB(PF 3/8, L=2650mm) |
| A10. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| A11. | 2420R349D170 | [1] | FLEXIBLE HOSE | KOB(PF 1/4, 1700mm Long (66-59/64 in)) Superseded by part number: HX21E04170DX |
| A12. | 2420R349D190 | [1] | HOSE,6.35mm ID x 1900mm L | KOB(PF 1/4, 1900mm Long (74-13/16 in)) |
| A13. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| A14. | ZH32X04000 | [6] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| A15. | 2420R349D165 | [2] | HOSE,1650.00 mm | KOBPF 1/4" Superseded by part number: HX21E04165DX |
| A16. | 2420R349D225 | [1] | HOSE | KOB(PF 1/4, L=2250rnm) Superseded by part number: HX21E04225DX |
| A17. | 2420R349D210 | [1] | FLEXIBLE HOSE | KOBPF1/4, 2100mm Long (82-11/16 in) |
| A18. | 2420R349D200 | [1] | HOSE ASSY. | KOB(PF 1/4, 2000mm Long (78-3/4 in)) |
| A19. | ZS18C10075 | [3] | SCREW,Hex, M10 x 75mm | KOBM10x1.50x75mm |
| A20. | ZW16H10000 | [6] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| A21. | ZH32X06000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| A22. | PY01P01043D6 | [7] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
| A23. | ZH42X04000 | [2] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004), (PF 1/4) |
| A24. | 2444Z2536 | [1] | TEE | KOB(PF 3/8-PT 3/8) |
| A25. | 2479R2348 | [1] | SWITCH,95 Degrees C, 203 Degrees F | KOBHydraulic Oil Temperature (PT 3/8) |
| A26. | YN64H01018P1 | [1] | GROMMET | KOB |
| A27. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(PF 3/8-PF 1/4)(Incls. O-Ring 237-6006) |
| A28. | YN64H01048P1 | [1] | TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring | KOB(Incls. O-Ring ZD12P01400) (PF 3/8) |
| A29. | YM64H01011P1 | [1] | BRACKET | |
| A30. | 2420R349D150 | [1] | HOSE,6.35mm ID x 1500mm L | KOBPF 1/4 |
| . . | YM64H00004F1 | [1] | CONTROL LINES, VALVE | |
| B1. | YN64H01089P1 | [1] | BRACKET | KOB |
| B2. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| B3. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| B4. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B5. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| B6. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| B7. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| B8. | 2444R963D23 | [1] | FLEXIBLE HOSE | KOB(PF 1/4, 1300mm Long (51-3/16 in)) |
| B9. | 2444R1120D035 | [1] | HOSE | KOBPF 1/4, 350mm Long (13-49/64 in) |
| B10. | 2420R349D205 | [1] | HOSE | KOB(PF 1/4, L=2050mm) |
| B11. | YM35V00001F1 | [1] | VALVE | KOBASSY. SOLENOID |
