卡特零件查询（735） 319-3961: VALVE GP-RETARDER HYD CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
903 次

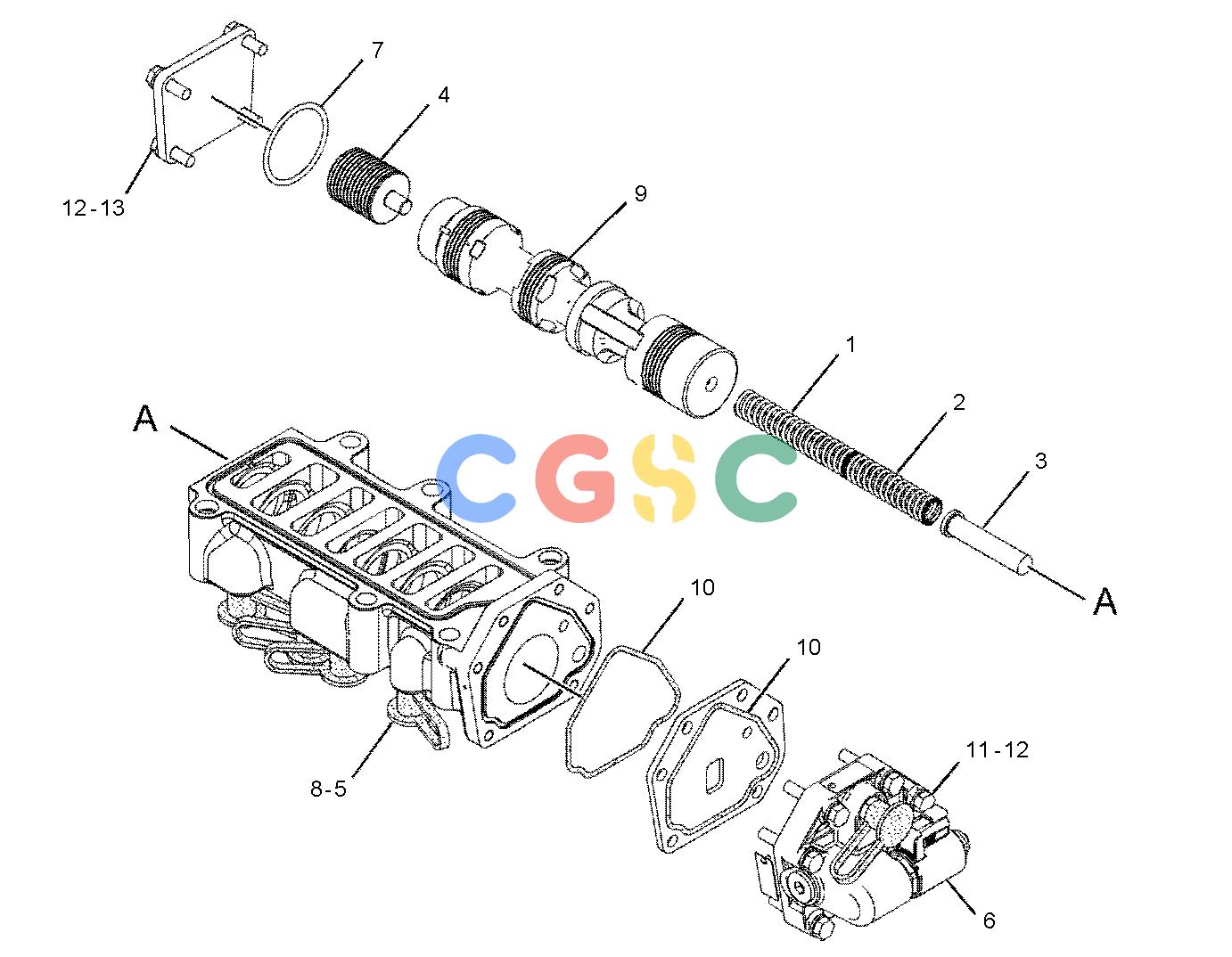

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-5646 | [1] | SPRING | |
| 2. | 2S-6538 | [1] | SPRING | |
| 3. | 2S-6547 | [1] | STOP | |
| 4. | 5S-4498 | [1] | SLUG | |
| 5. | 6V-0852 | [4] | CAP-DUST | |
| 6. | Y | [1] | VALVE GP-REDUCING |
| 7. | 8M-5010 | [1] | SEAL-O-RING | |
| 8. | 164-5567 | [4] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 9. | 349-1171 | [1] | SPOOL | |
| 10. | 224-2639 | [2] | SEAL-O-RING | |
| 11. | 7X-0818M | [6] | BOLT(M8X1.25X45-MM) | |
| 12. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
