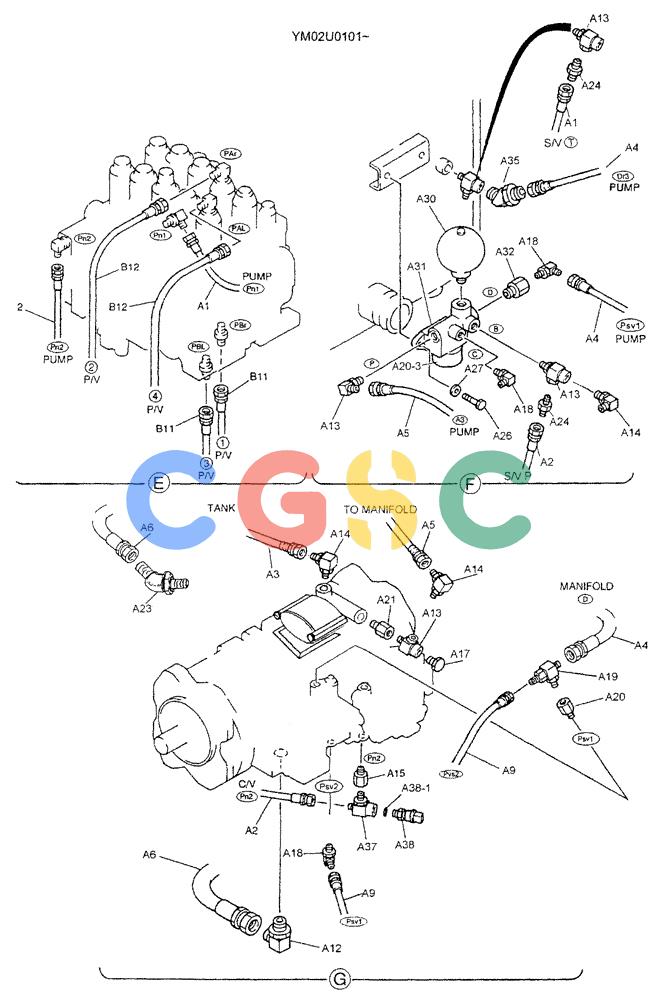

| . . | YM06H00002F1 | [1] | CONTROL LINES, PUMP | |
| A1. | 2444R1120D100 | [1] | HOSE | KOBPF 1/4, 1000mm Long (39-3/8 in) |
| A2. | 2420R349D105 | [1] | HOSE,1050.00 mm | KOB1/4" PF, 1050mm Long (41-21/64 in) |
| A3. | 2444R1119D045 | [1] | HOSE | KOBPF1/4, 450mm Long (17-23/32 in) Superseded by part number: 2444R1119D046 |
| A4. | 2420R349D072 | [1] | FLEXIBLE HOSE | SM(PF 1/4, L=720mm) Superseded by part number: 24820R63D072 |
| A5. | 2420R537D055 | [1] | HOSE ASSY.,9.60mm ID x 550mm L | KOB(PF 3/8, L=550mm) |
| A6. | ZX22M12070 | [1] | HOSE ASSY. | KOB(PF 3/4, L=700mm) |
| A7. | 2420R349D035 | [1] | HOSE | KOBPF MA, 350mm Long (13-49/64 in) |
| A8. | 2420R349D042 | [1] | HOSE ASSY. | KOBPF 1/4, 420mm Long (16-1/2 in) Superseded by part number: 2420R349D045 |
| A9. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| A10. | 2444R1120D035 | [1] | HOSE | KOBPF 1/4, 350mm Long (13-49/64 in) |
| A11. | YM06H01001P1 | [1] | BRACKET | |
| A12. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| A13. | HH55Q06006G1 | [3] | TEE | KOB3/8" PF (Incls. O-Ring ZD12P01400) |
| A14. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| A15. | 2444Z2336 | [1] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| A16. | HH25X04004G2 | [1] | HYD CONNECTOR | KOBPF 1/4, (Incls. O-Ring ZD12P01100) |
| A17. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| A18. | ZH32X04000 | [6] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| A19. | ZH52X04000 | [1] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB1/4" PF (Incls. O-Ring 237-6004) |
| A20. | HH25R04004G5 | [1] | HYD CONNECTOR | KOBw/FILTER (PF 1/4)(Incls. O-Ring ZD12P01100) |
| A21. | 2444T2505 | [1] | HYD CONNECTOR | KOB1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400) |
| A22. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| A23. | ZH42X12000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOB45° -- 3/4" PF (Incls. O-Ring 237-6012) |
| A24. | ZH22X04006 | [2] | HYD CONNECTOR | KOB(PF 3/8-PF 1/4)(Incls. O-Ring 237-6006) |
| A25. | YY35V00001F1 | [1] | SOLENOID VALVE | KOBSee CPM |
| A26. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| A27. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| A28. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| A29. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| A30. | 2445R373F1 | [1] | ACCUMULATOR | KOB |
| A31. | YN50V00011F2 | [1] | FILTER | KOBFILTER ASSY, INLINE |
| A31-3. | YN50V01001S005 | [1] | ELEMENT | KOB Superseded by part number: 84565888 |
| A32. | HH25R08004G1 | [1] | HYD CONNECTOR | KOB1/4"PFx1/2"PFx36mm Long (Incls. O-Ring ZD12P01800) |
| A33. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A34. | PY01P01043D6 | [2] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
| A35. | ZH42X06000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006), (PF 3/8) |
| A36. | 2444Z3331 | [2] | ELEC CONNECTOR | KOB(PF 1/4) |
| A37. | PU13E01002D2 | [2] | TUBE | KOB840mm Long (33-1/16 in) |
| . . | YM62H00001F1 | [1] | CONTROL LINES, PROPEL | |
| B1. | YX30V00004F1 | [1] | VALVE | KOBPILOT See CPM Superseded by part number: YX30V00004F2 |
| B2. | HH25X04004G2 | [1] | HYD CONNECTOR | KOBPF 1/4, (Incls. O-Ring ZD12P01100) |
| B3. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| B4. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(PF 3/8)(Incls. O-Ring ZD12P01400) |
| B5. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| B6. | ZS28C10025 | [4] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm |
| B7. | ZW16K10000 | [4] | WASHER | KOBID 10.5 x OD 18 x Th 2.0mm |
| B8. | YX52S00005P1 | [2] | PRESSURE SWITCH | KOBSENSOR PRESS (FF 1/4) Superseded by part number: YX52S00012F1 |
| B8-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| B9. | 2420R349D090 | [1] | HOSE,6.35mm ID x 900mm L | KOBPF1/4, 900mm Long (35-7/16 in) |
| B10. | 2444R1119D100 | [1] | HOSE | KOB3/8" PF, 1000mm Long (39-3/8 in) |
| B11. | 2420R537D280 | [2] | HOSE,9.60mm ID x 2800mm L | KOBPF 3/8 |
| B12. | 2420R537D325 | [2] | FLEXIBLE HOSE,9.60mm ID x 3250mm L | KOB(PF 3/8, L=3250mm) |
| B13. | YN68H01035P1 | [3] | CLAMP | KOB |
| B14. | ZS18C08040 | [6] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| B15. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| . . | YN64H00069F1 | [1] | SPARE PART | KOBCONTROL LINES, BLOCK |
| C1. | YR64H01009P1 | [1] | BLOCK | KOB |
| C2. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| C3. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| C4. | 2444Z2336 | [1] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| C5. | 2444Z2359 | [1] | TEE | KOB3/8" PT (Incls. O-Ring ZD12P01400) |
| C6. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(PF 3/8)(Incls. O-Ring ZD12P01400) |
| C7. | 2444Z2457 | [1] | TEE | KOB(2x FF 1/4-FF 3/8) |
| C8. | 2444T2505 | [1] | HYD CONNECTOR | KOB1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400) |
| C9. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
