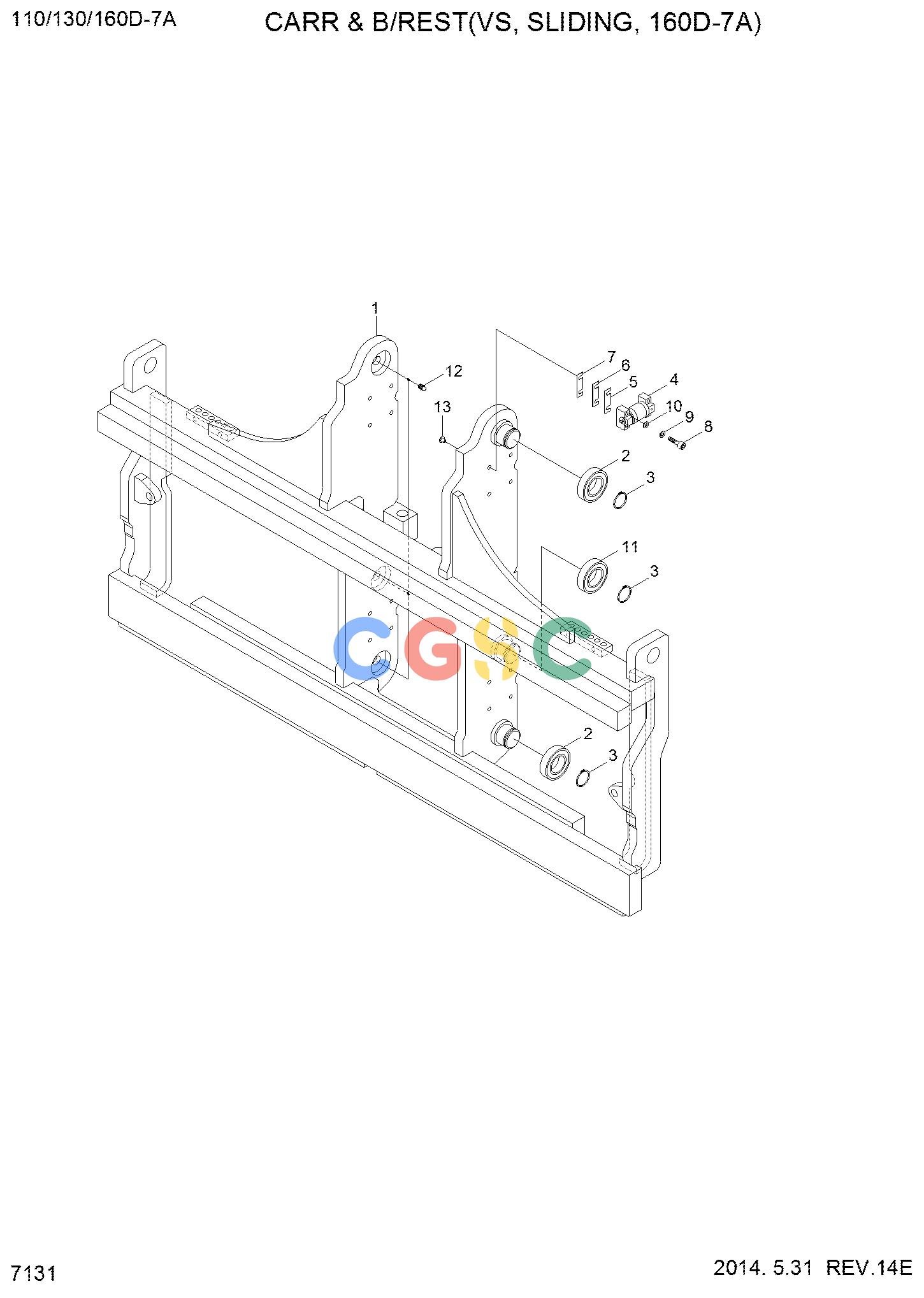

现代零件查询110/130/160DF-7 CARR & B/REST(VS, SLDING, 160DE)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
471 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
62FT-41011
|
[1] |
CARRIAGE & BACKREST WA
|
|
| 2. |
61FT-18602
|
[4] |
LOAD R/BEARING(OD=206)
|
|
| 2. |
61FT-18651
|
[4] |
LOAD R/BEARING(OD=207)
|
|
| 3. |
S601-070004
|
[6] |
RING-RETAINING
|
|
| 4. |
61FT-18381
|
[4] |
SIDE ROLLER ASSY
|
|
| 5. |
61FT-18500
|
[4] |
SHIM(5.0T)
|
|
| 6. |
61FT-18510
|
[8] |
SHIM(1.0T)
|
|
| 7. |
61FT-18520
|
[8] |
SHIM(0.5T)
|
|
| 8. |
S017-140406
|
[16] |
BOLT-HEX
|
|
| 9. |
S411-140006
|
[16] |
WASHER-SPRING
|
|
| 10. |
S403-141006
|
[16] |
WASHER-PLAIN
|
|
| 11. |
61FT-28601
|
[2] |
LOAD R/BRG ASSY
|
|
| 12. |
S651-810008
|
[6] |
NIPPLE-GREASE
|
|
| 13. |
61FT-27420
|
[16] |
CAP-RUBBER
|
|
| 13. |
41QA-40190
|
[16] |
CAP-HEX
|
|
