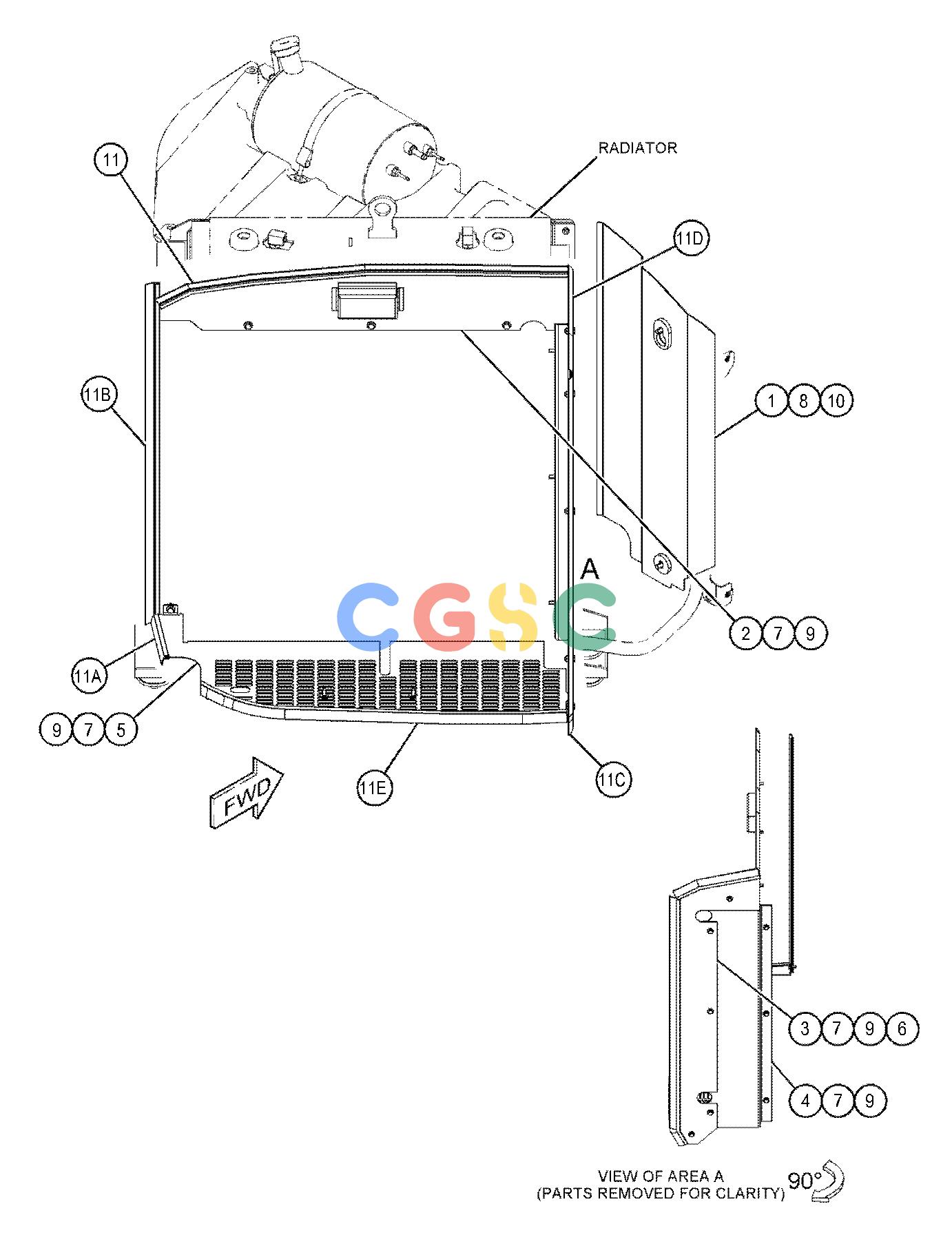

卡特零件查询（735） 508-2499: BAFFLE GP
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 365-4218 | [1] | BAFFLE AS | |
| 2. | 508-2498 | [1] | PLATE AS | |
| 3. | 508-2503 | [1] | BAFFLE | |
| 4. | 508-2504 | [1] | BRACKET | |
| 5. | 547-7139 | [1] | GUARD | |
| 6. | 344-5674M | [5] | NUT(M8X1.25-THD) | |
| 7. | 5P-4116 | [24] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 9. | 8T-4189M | [19] | BOLT(M8X1.25X20-MM) | |
| 10. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 11. | 136-7728J | | SEAL(10.2-DM) | |
| 11A. | 136-7728J | | SEAL(1.8-DM) | |
| 11B. | 136-7728J | | SEAL(10.1-DM) | |
| 11C. | 136-7728J | | SEAL(10.8-DM) | |
| 11D. | 136-7728J | | SEAL(3.2-DM) | |
| 11E. | 136-7728J | | SEAL(12.5-DM) | |
| | J | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
