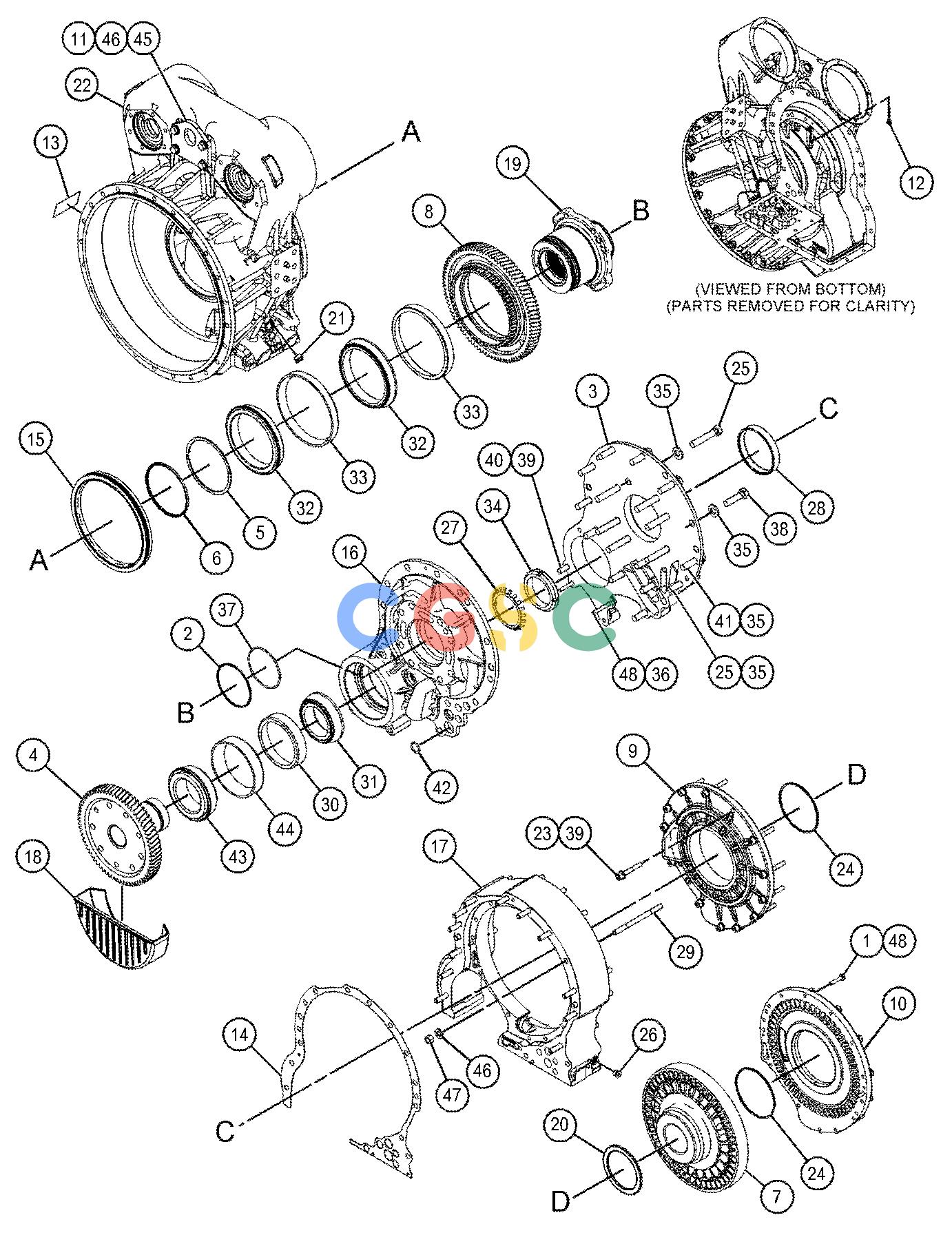

卡特零件查询（735） 490-3779: HOUSING GP-TORQUE CONVERTER
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-5219M | [2] | BOLT(M8X1.25X40-MM) | |
| 2. | 136-3378 | [1] | SEAL-O-RING | |
| 3. | 265-5834 | [1] | MANIFOLD | |
| 4. | 265-5840 | [1] | GEAR(70-TEETH) | |
| 5. | 274-4252 | [1] | RING-RETAINING | |
| 6. | 274-4254 | [1] | RING-SEAL | |
| 7. | 277-6901 | [1] | ROTOR-RETARDER | |
| 8. | 295-8261 | [1] | GEAR(55-TEETH) | |
| 9. | 304-5103 | [1] | STATOR-RETARDER | |
| 10. | 304-5104 | [1] | STATOR-RETARDER | |
| 11. | 304-8981 | [1] | PLATE-LIFTING | |
| 12. | 307-2671 | [1] | PLUG AS | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| | 214-7566 | [1] | SEAL-O-RING | |
| 13. | 338-0891 | [1] | PLATE-INFORMATION(TRANSMISSION) | |
| 14. | 352-1944 | [1] | GASKET | |
| 15. | 363-2112 | [1] | SEAL-LIP TYPE | |
| 16. | 366-0683 | [1] | MANIFOLD | |
| 17. | 375-2451 | [1] | HOUSING AS-TORQUE CONVERTER(INTERMEDIATE) | |
| | 1A-2223 | [2] | DOWEL | |
| | 2H-1190 | [1] | DOWEL | |
| | 3H-0703 | [4] | DOWEL | |
| 18. | 380-2810 | [1] | SHIELD AS | |
| 19. | 419-0034 | [1] | CARRIER AS | |
| | 1A-2223 | [1] | DOWEL | |
| 20. | 459-1195 | [1] | BEARING-THRUST | |
| 21. | 472-8171 | [1] | PLUG GP-ENGINE(AIR TEMPERATURE SENSOR) | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 22. | 515-9357 | [1] | HOUSING AS-TORQUE CONVERTER | |
| | 1A-2223 | [4] | DOWEL | |
| | 5M-7937 | [2] | DOWEL | |
| 23. | 095-0658M | [13] | BOLT-SOCKET HEAD(M10X1.5X70-MM) | |
| 24. | 128-1663 | [2] | RING-SEAL | |
| 25. | 172-9966M | [13] | BOLT(M12X1.75X65-MM) | |
| 26. | 183-3407 | [1] | PLUG AS | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 27. | 1B-6161 | [1] | LOCK | |
| 28. | 274-6111 | [1] | RACE-BEARING | |
| 29. | 287-3144M | [13] | STUD(M12X1.75X165-MM) | |
| 30. | 2P-8986 | [1] | CUP-BEARING | |
| | 415-1912 | [1] | CUP-BEARING | |
| 31. | 2P-8987 | [1] | CONE-BEARING | |
| | 374-1845 | [1] | BEARING-TAPERED ROLLER | |
| 32. | 416-6337 | [2] | BEARING | |
| 33. | 416-6338 | [2] | BEARING-CUP | |
| 34. | 4H-7859 | [1] | LOCKNUT-BEARING | |
| 35. | 5P-8245 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 36. | 5P-8347M | [2] | BOLT(M8X1.25X70-MM) | |
| 37. | 6V-3551 | [1] | SEAL-O-RING | |
| 38. | 6V-5684M | [6] | BOLT(M12X1.75X45-MM) | |
| 39. | 6V-5839 | [14] | WASHER(11X21X2.5-MM THK) | |
| 40. | 6V-5843M | [1] | BOLT(M10X1.5X45-MM) | |
| 41. | 6V-8197M | [1] | BOLT(M12X1.75X40-MM) | |
| 42. | 7L-9061 | [2] | SEAL-O-RING | |
| 43. | 8H-7801 | [1] | CONE-BEARING | |
| 44. | 8H-7803 | [1] | CUP-BEARING | |
| 45. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 46. | 8T-4223 | [17] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 47. | 8T-4244M | [13] | NUT(M12X1.75-THD) | |
| 48. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
