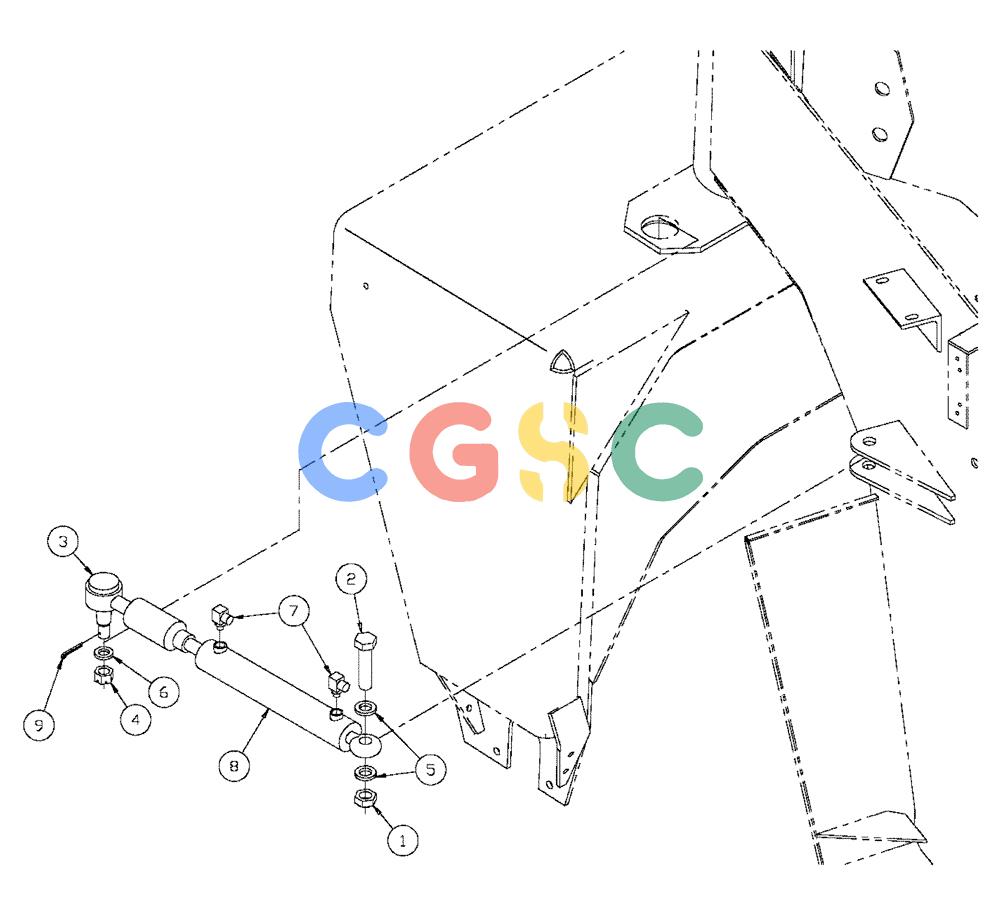

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (06-006) - STEERING CYLINDER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN1470411F
|
[1] |
LOCK NUT
|
BN
1"-14 Flex
|
| 2. |
428-1672
|
[1] |
BOLT,Hex, 1" - 14 x 4-1/2", Gr 8
|
BN
Hex, 1"-14 x 4", G8
|
| 3. |
BN2290206
|
[1] |
STUD
|
BN
Ball, End L24-SV
|
| 4. |
BN320210
|
[1] |
JAM NUT
|
BN
1 1/8"-12, Jam
|
| 5. |
BN2298333
|
[2] |
WASHER
|
BN
Hardened 1 WA 1772
|
| 6. |
87310608
|
[1] |
WASHER,22mm ID x 44mm OD x 5mm Thk
|
BN
22 x 44 x 5 mm, HDN, DOR
|
| 7. |
BN302557
|
[2] |
FITTING
|
BN
8MOR-6MB X 90
|
| 8. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Cylinder, 2 X 1 X 12, -6FB, Nitro Bar
|
| 9. |
BN50624
|
[1] |
COTTER PIN
|
BN
5/32 X 2
|
