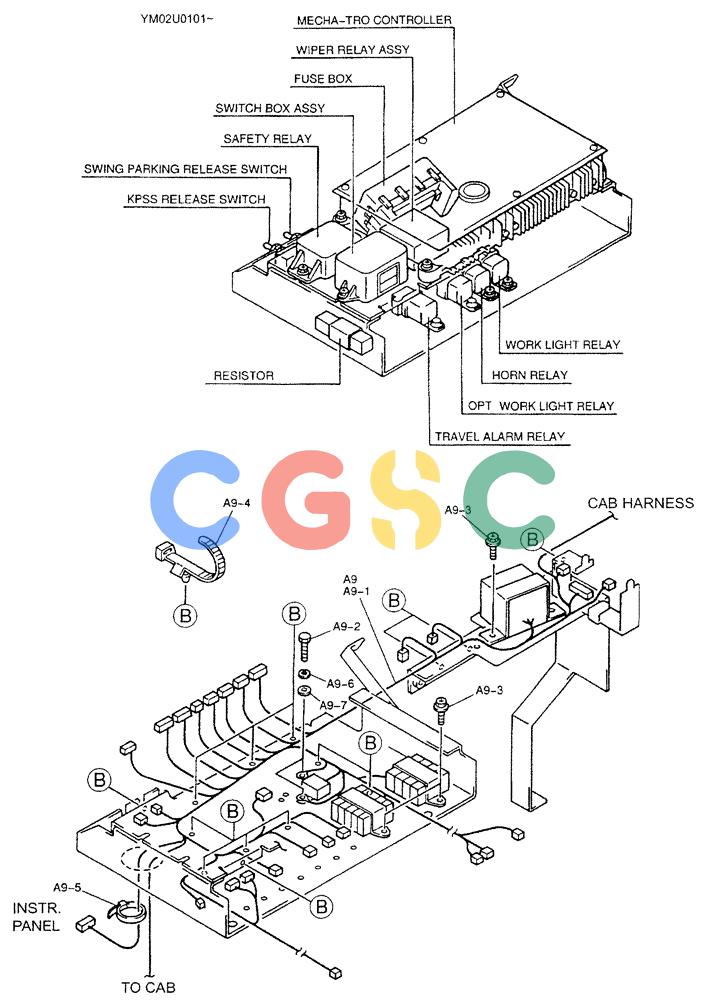

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-052[02]) - CONTROLLER GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
736 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM22E00003F1 | [1] | CONTROL | KOBAssembly - NSS - Order individual parts |
| A1. | YN22E01033P2 | [1] | BOX | KOB |
| A2. | YN22E01027P1 | [1] | PLATE | KOB |
| A3. | YN50E00004F1 | [1] | SWITCH ASSY | KOBBOX (C-3) |
| A5. | YM22E00001F1 | [1] | CONTROL | KOB(C-1 KPSS) Superseded by part number: YN22E00108F1 |
| A6. | LC22E01001D1 | [1] | RESISTOR,16ohm | KOB16 Ohm, (E-4) |
| A7. | LC73E00001F1 | [1] | FUSE BOX | KOB(E-1) |
| A7-1. | YN73E00001S001 | [1] | BASE | KOB |
| A7-2. | YN73E00001S002 | [1] | COVER | KOB |
| A7-3. | 2479R655S10 | [6] | FUSE | KOB5 Amp Superseded by part number: 2479U717S5 |
| A7-4. | 2479R655S8 | [4] | FUSE,10 Amp | KOB10 Amp Superseded by part number: 87522597 |
| A7-5. | 2479R655S9 | [8] | FUSE,20 Amp | KOB20 Amp |
| A7-6. | LC73E00001S006 | [1] | WIRE HARNESS | KOBHARNESS Superseded by part number: LC73E00001F1 |
| A7-7. | YN73E01010P1 | [1] | LABEL | KOB |
| A8. | YR24S00002P1 | [2] | RELAY | KOBSAFETY (R-5, R-6) |
| A9. | YM14E00001F1 | [1] | HARNESS ASSY, CAB | |
| A9-1. | YM14E01001P3 | [1] | WIRE HARNESS | KOB |
| A9-2. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| A9-3. | ZM66C06020 | [6] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| A9-4. | YN03E01001D5 | [14] | CLIP | KOB195mm Long (7-43/64 in) -- Black |
| A9-5. | PY01P01043D3 | [1] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| A9-6. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| A9-7. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| A9-8. | 2432R233D1 | [1] | CLIP | KOB37x12x40mm |
| A10. | YN50S01003P1 | [1] | SWITCH | KOBKPSS RELEASE (SW-5) |
| A11. | YX50E00002F1 | [1] | SWITCH | KOBSWING PARKING RELEASE (SW-4) |
| A12. | YN22M01013P1 | [1] | LABEL | KOB |
| A13. | YN22M01014P1 | [1] | LABEL | KOBDecal, Swing Parking Brake Release Lock and Normal |
| A14. | ZM41C04016 | [1] | BOLT | KOBM04x0.7x16mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C04016 |
| A15. | ZM61C06016 | [7] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| A16. | ZM61C06020 | [3] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| A17. | YT24E00001F1 | [1] | RELAY | KOBWIPER/WASHER (R-7) |
| A18. | ZM61C06030 | [2] | BOLT | KOBM06x1.0x30mm (Incls. Washer & Lockwasher) |
| A19. | 2420Z699 | [1] | GROMMET | KOB |
| A20. | YN22E01012P1 | [1] | RUBBER | KOB |
| A21. | ZM61C06035 | [2] | BOLT | KOBM06x1.0x35mm (Incls. Washer & Lockwasher) |
| A22. | YN24S00001P1 | [1] | RELAY,24V, 10 Amp | KOBTRAVEL ALARM (R-8) |
| . . | YN22E00060F1 | [1] | CONTROLLER INSTALLATION | |
| B1. | ZM22C10025 | [9] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| B2. | ZM66C06016 | [4] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| B3. | YN24E00005F1 | [1] | RELAY | KOB |
| B3-1. | YN24E01004P3 | [1] | PLATE | KOB Superseded by part number: YN24E01004P5 |
| B3-2. | ZM61C06016 | [3] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| B3-3. | YN77S00005F1 | [1] | CONVERTER | KOB Superseded by part number: YT77S00011P1 |
| B3-4. | YY24S00001P1 | [1] | RELAY | KOBFLASHER Superseded by part number: YY24S00001P2 |
| B4. | YN22E01032P1 | [1] | PLATE | KOB |
| B5. | YN22E01028P1 | [1] | SUPPORT | KOB |
| B6. | YN25S00001P1 | [1] | TIMER | KOB |
| B7. | ZM66C06020 | [3] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| A4. | VAME077148 | [1] | RELAY | KOBSAFETY (R-4) |
