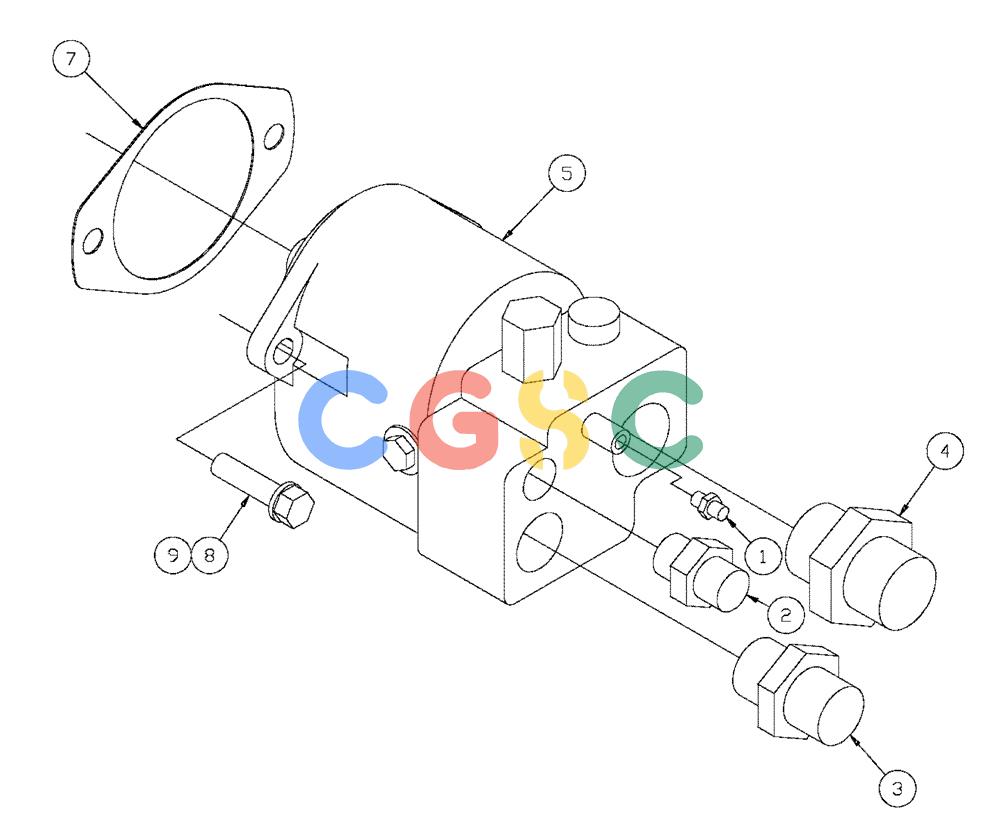

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (06-008) - HYDRAULIC PUMP GROUP (FLX3300B CASE ENGINE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN302640
|
[1] |
FITTING
|
BN
4MOR-4MB
|
| 2. |
BN302650
|
[1] |
FITTING
|
BN
8MOR-8MB
|
| 3. |
BN302655
|
[1] |
FITTING
|
BN
12Mor-12Mb
|
| 4. |
BN302659
|
[1] |
FITTING
|
BN
20MOR-16MB
|
| 5. |
BN317546
|
[1] |
PUMP
|
BN
Gear, LS, 1.77, SP, RH
|
| . . |
BN317546R
|
[1] |
REMAN-HYD PUMP
|
BN
FLX3300B, FLX3330B BOTH (12/99-9/02)
|
| . . |
BN317546C
|
[1] |
CORE-HYDRAULIC PUMP
|
BN
Return Number
|
| 7. |
BN69793
|
[1] |
GASKET
|
BN
2 Bolt SAE A Pad
|
| 8. |
827-10040
|
[2] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd
|
CAS
Superseded by part number: 43248
|
| 9. |
140017
|
[2] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
