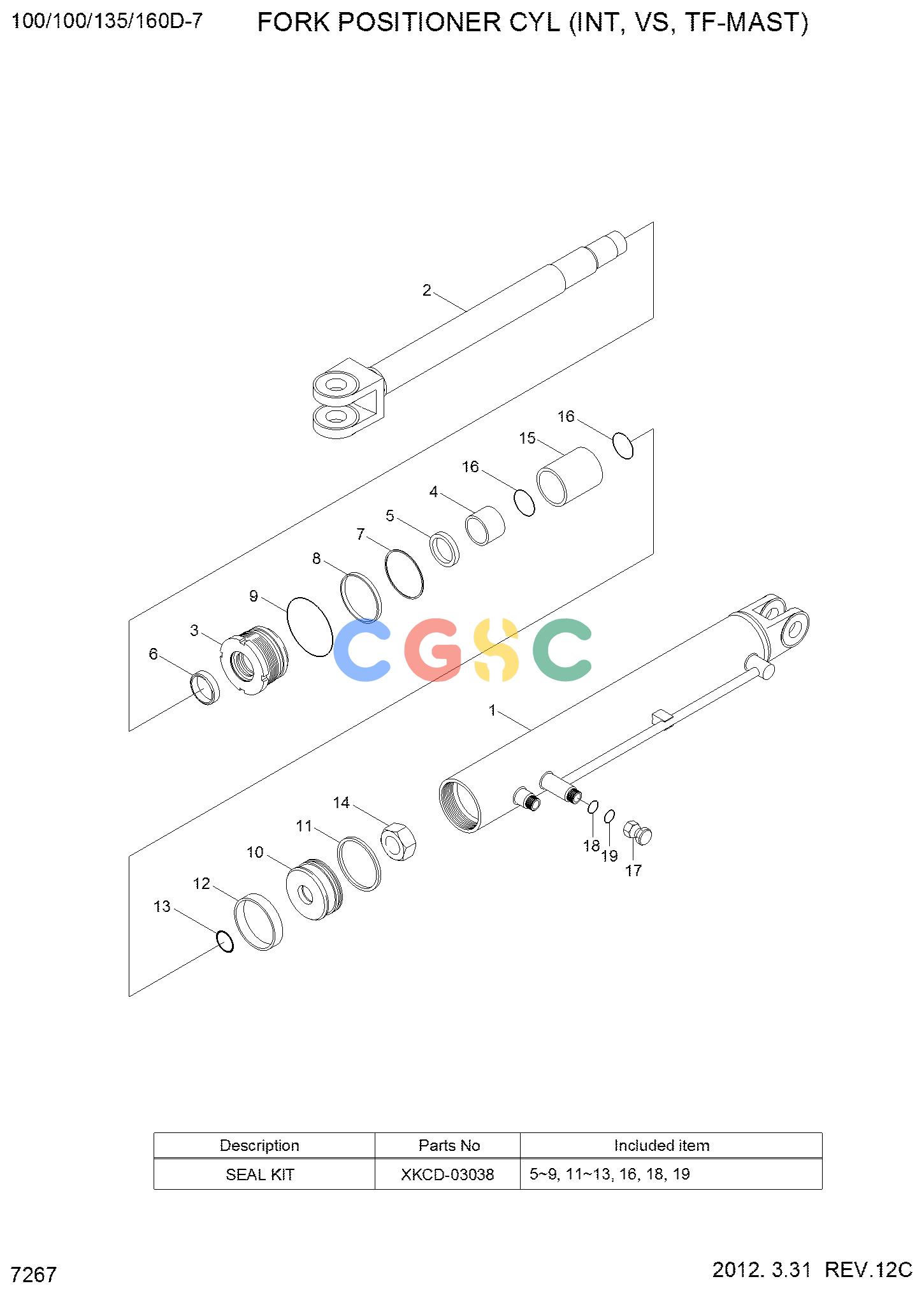

现代零件查询110/130/160DF-7 FORK POSITIONER CYL (INT, VS,TF-MAST)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
298 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
35FT-07500
|
[1] |
FORK POSITIONER CYL
|
|
| . |
34FT-07500
|
[1] |
FORK POSITIONER CYL
|
|
| 1. |
XKCD-03036
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCD-03025
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCD-03037
|
[1] |
ROD ASSY
|
|
| 2. |
XKCD-03026
|
[1] |
ROD ASSY
|
|
| 3. |
XKCD-03027
|
[1] |
ROD COVER
|
|
| 4. |
XKCD-03028
|
[1] |
ROD BUSHING
|
|
| K5. |
XKCD-00790
|
[1] |
U-PACKING
|
|
| K6. |
XKCD-00791
|
[1] |
DUST WIPER
|
|
| K7. |
XKCD-01059
|
[1] |
O-RING
|
|
| K8. |
XKCD-03029
|
[1] |
RING-BACK UP
|
|
| K9. |
XKCD-00691
|
[1] |
O-RING
|
|
| 10. |
XKCD-03030
|
[1] |
PISTON
|
|
| K11. |
XKCD-00725
|
[1] |
SEAL-PISTON
|
|
| K12. |
XKCD-03031
|
[1] |
RING-WEAR
|
|
| K13. |
XKCD-03032
|
[1] |
O-RING
|
|
| 14. |
XKCD-03033
|
[1] |
NUT-NYLON, HEX
|
|
| 15. |
XKCD-03034
|
[1] |
SPACER
|
|
| K16. |
XKCD-01299
|
[1] |
O-RING
|
|
| 17. |
XKCD-00698
|
[1] |
CAP-DUST
|
|
| K18. |
XKCD-00696
|
[1] |
O-RING
|
|
| K19. |
XKCD-00697
|
[1] |
O-RING
|
|
| K. |
XKCD-03038
|
[1] |
SEAL KIT
|
|
