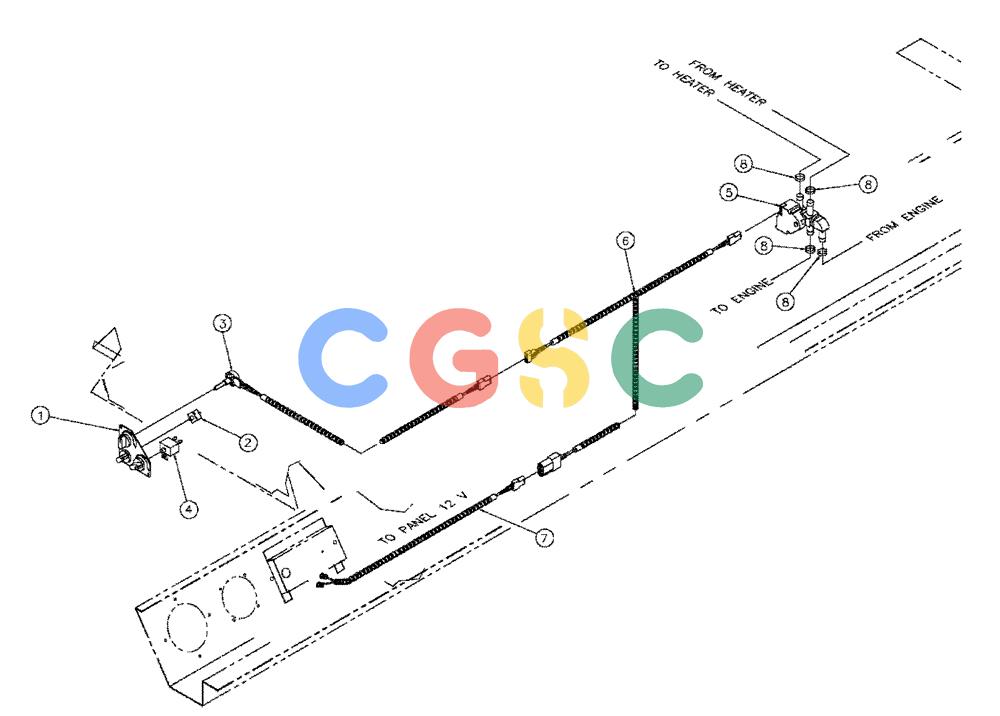

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (01-007) - TEMPERATURE CONTROL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN316427
|
[1] |
Control Group
|
|
| . . |
BN315869
|
[1] |
PLATE
|
BN
Temp Controls, Cab
|
| . . |
BN316428
|
[3] |
KNOB
|
BN
Control
|
| . . |
BN316429
|
[1] |
DECAL
|
BN
Heater Control Panel
|
| 2. |
BN2394976
|
[1] |
SWITCH
|
BN
Blower Speed
|
| 3. |
BN316421
|
[1] |
POTENTIOMETER,10,000 Ohm
|
BN
Temperature Control
|
| 4. |
BN2402030
|
[1] |
THERMOSTAT
|
BN
A/C (3-11313) Superseded by part number: 109268C2
|
| 5. |
BN316146
|
[1] |
MOTOR
|
BN
|
| 6. |
BN316437
|
[1] |
WIRE HARNESS
|
BN
Power Temperature Control
|
| 7. |
BN316493
|
[1] |
WIRE HARNESS
|
BN
Titan A/C EXT.
|
| 8. |
BN2296337
|
[4] |
CLAMP
|
BN
H10 SS
|
