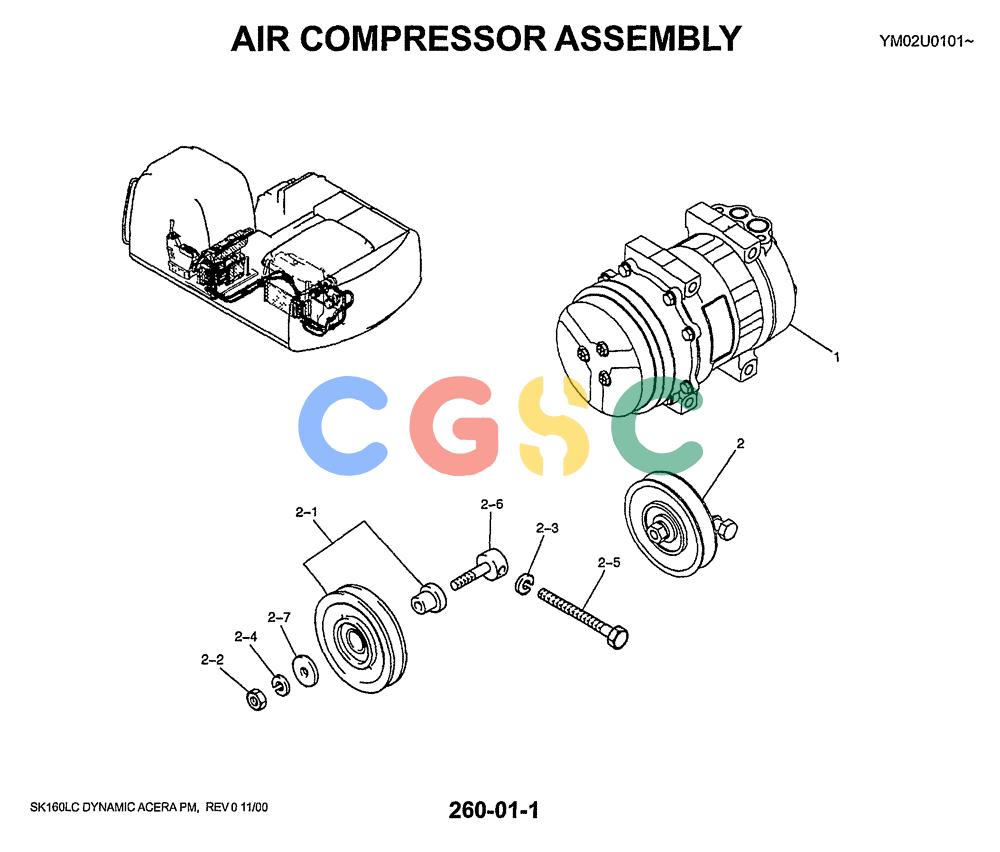

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-059) - AIR COMPRESSOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
534 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC91V00002F1 | [1] | COMPRESSOR | KOBAIR Superseded by part number: LC91V00002F3 |
| . . | LC91V00002F3R | [1] | REMAN-A/C COMPRESSOR,W/ Pulley | RACSK160LC DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101, AIR, Reman for New PN LC91V00002F1 |
| . . | LC91V00002F3C | [1] | CORE-A/C COMPRESSOR | RACReturn Number |
| 1. | LC91V00001F1 | [1] | AIRCOND. COMPRESSOR,W/ Pulley | KOBAIR |
| 2. | YX20M01029F1 | [1] | PULLEY ASSY. | KOB Superseded by part number: YX20M01029F4 |
| 2-1. | 24100U1176S16 | [1] | PULLEY | KOB Superseded by part number: YX20M01029F4 |
| 2-2. | 24100U1176S25 | [1] | NUT | KOBM10 |
| 2-3. | 24100U1176S27 | [1] | LOCK WASHER | KOBM08 Superseded by part number: 83990583 |
| 2-4. | 24100U1176S26 | [1] | LOCK WASHER | KOBM10 Superseded by part number: ZW26X10000 |
| 2-5. | 24100U1176S18 | [1] | BOLT | KOB |
| 2-6. | YX20M01029S006 | [1] | SHAFT | KOB |
| 2-7. | 24100U1176S19 | [1] | STOP | KOB |
