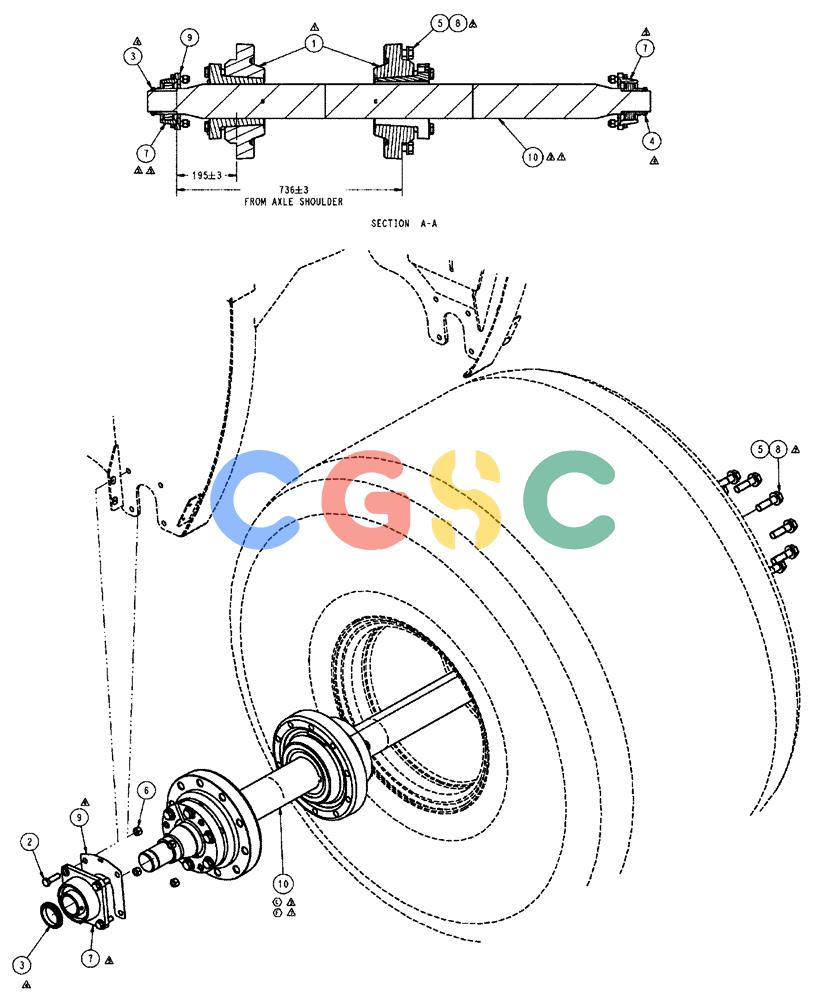

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (04-001) - FRONT AXLE GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
417 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
257826A1
|
[2] |
HUB
|
BN
Assembly, 115 MM Axle
|
| 2. |
120090
|
[8] |
BOLT,Hex, M16 x 50mm, Cl 8.8
|
NH
|
| 3. |
87268062
|
[1] |
BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm
|
BN
Bearing, LH Thread
|
| 4. |
87268061
|
[1] |
BEARING LOCK NUT,79.4 mm ID x 84.1 mm OD x 15.88 mm
|
BN
Bearing, RH Thread
|
| 5. |
827-22080
|
[10] |
BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9
|
CAS
Superseded by part number: 87670757
|
| 6. |
832-46416
|
[8] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 7. |
86986542
|
[2] |
FLANGED BEARING
|
BN
70 mm, 4 Bolt Flange
|
| 8. |
896-11022
|
[10] |
WASHER,24mm ID x 44mm OD x 4mm Thk
|
CAS
Superseded by part number: 76088905
|
| 9. |
87268063
|
[6] |
SHIM
|
BN
Front Axle Bearing
|
| 10. |
87396362
|
[1] |
SHAFT
|
TYR
Front Axle
|
| 10. |
87268060
|
[1] |
SHAFT
|
TYR
Front Axle Superseded by part number: 87396362
|
