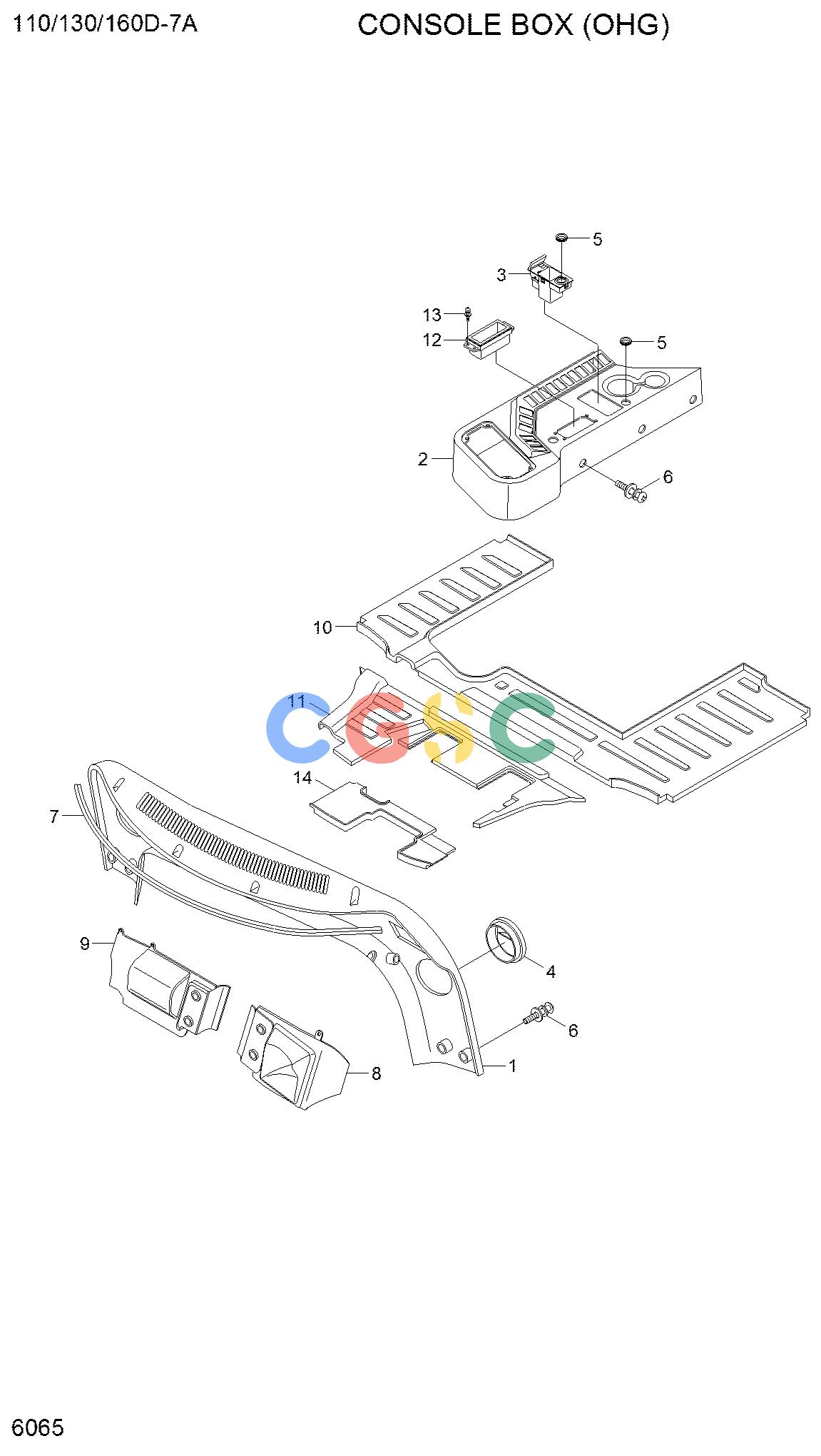

现代零件查询110/130/160DF-7 CONSOLE BOX (OHG)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
142 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
70FT-35202
|
[1] |
CONSOLE BOX GROUP
|
|
| 1. |
71FQ-35131
|
[1] |
DASH BOARD
|
|
| 2. |
71FT-35501
|
[1] |
CONSOLE BOX
|
|
| 3. |
71FT-35411
|
[1] |
COVER ASSY
|
|
| 4. |
71FQ-35150
|
[4] |
NOZZLE-AIR,REAR
|
|
| 5. |
S661-260300
|
[2] |
CAP-RUBBER
|
|
| 6. |
S132-081526
|
[20] |
SCREW-W/WASHER
|
|
| 7. |
71FQ-34280
|
[1] |
WEATHER STRIP
|
|
| 8. |
11FT-95701
|
[1] |
COVER-LH
|
|
| 9. |
11FT-95710
|
[1] |
COVER-RH
|
|
| 10. |
71FT-35203
|
[1] |
MAT FLOOR
|
|
| 11. |
71FT-35224
|
[1] |
MAT FLOOR
|
|
| 12. |
21M9-31810
|
[1] |
COVER
|
|
| 13. |
S131-051526
|
[4] |
SCREW-W/WASHER
|
|
| 14. |
71FT-35640
|
[1] |
MAT FLOOR
|
|
