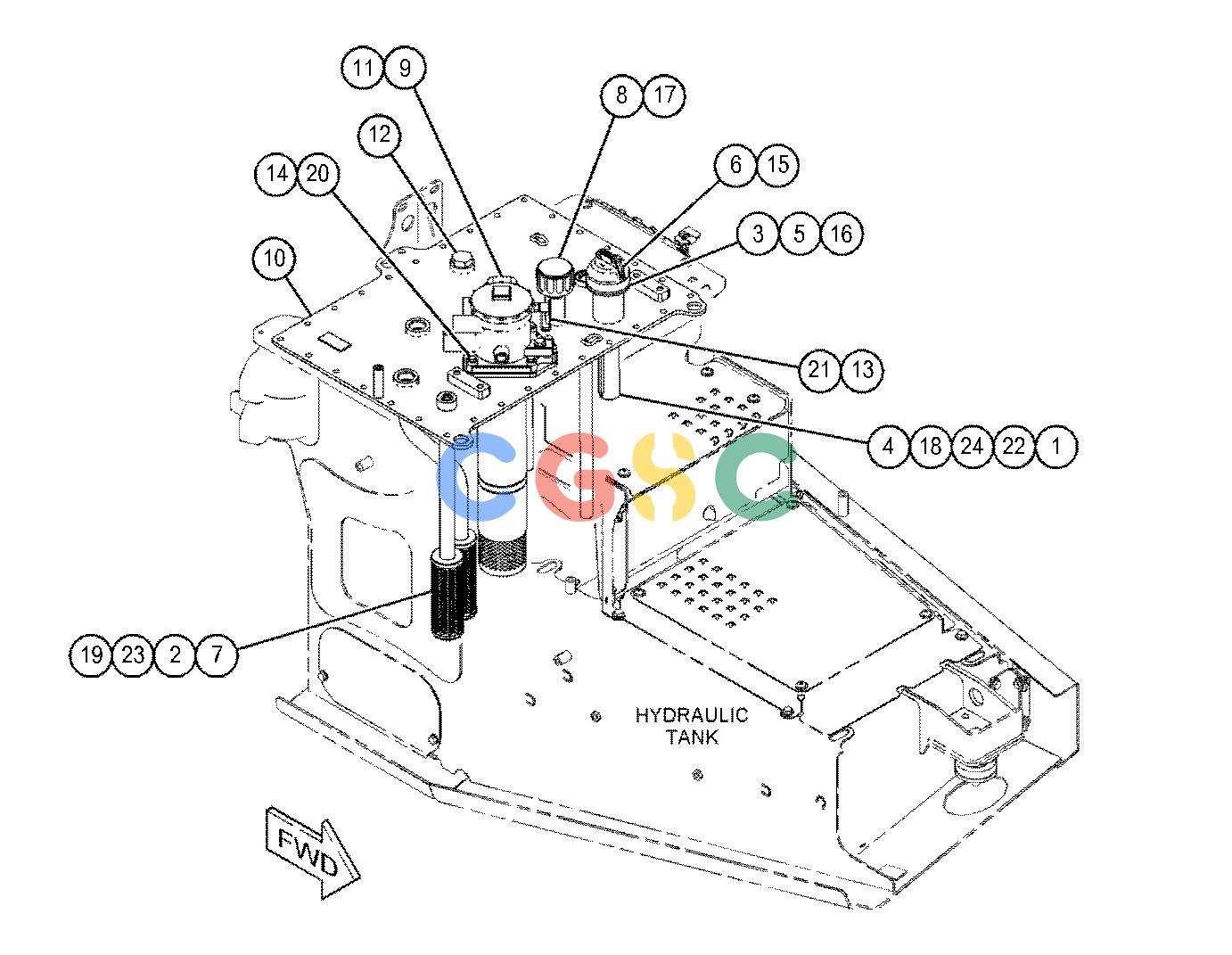

卡特零件查询（735） 523-4913: COVER GP-HYDRAULIC TANK
广数供应链运营团队, 15 02月, 2025，浏览：
718 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2D-4202 | [1] | PLATE | |
| 2. | 4T-8698 | [2] | WASHER(12.2X62X3.5-MM THK) | |
| 3. | 5D-1911 | [1] | COVER-HYDRAULIC CAP | |
| 4. | 492-6794 | [1] | STRAINER(PLASTIC) | |
| 5. | 7H-1447 | [1] | CAP-FILLER(HYDRAULIC TANK) | |
| 6. | 9M-7394 | [1] | LEVER | |
| 7. | 119-4885 | [2] | SCREEN | |
| 8. | 157-7911 | [1] | BREATHER | |
| 9. | 523-4917Y | [1] | FILTER GP-OIL | |
| 10. | 551-5371 | [1] | COVER AS-FILTER | |
| 11. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 12. | 164-4180 | [1] | PLUG AS | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 13. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8C-3446 | [1] | VALVE-SAMPLING | |
| 14. | 198-4776 | [5] | WASHER-HARD(8.8X20X8-MM THK) | |
| 15. | 1L-5072 | [1] | DOWEL | |
| 16. | 2J-7761 | [1] | RING-RETAINING | |
| 17. | 3D-2824 | [1] | SEAL-O-RING | |
| 18. | 6H-9361 | [1] | RING-RETAINING | |
| 19. | 6V-7744M | [2] | LOCKNUT(M10X1.5-THD) | |
| 20. | 7X-2537M | [5] | BOLT(M8X1.25X35-MM) | |
| 21. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 22. | 8T-2275 | [1] | BALL | |
| 23. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 9H-6454 | [1] | GASKET | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
