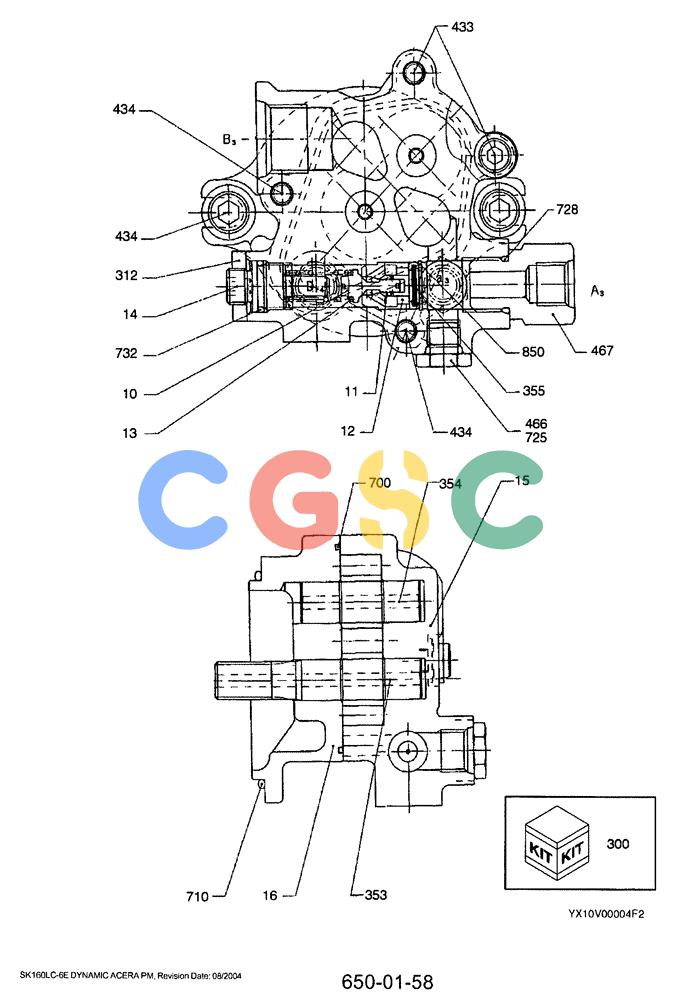

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-025) - PUMP ASSY, GEAR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX10V00004F2 | [1] | PUMP | KOB |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET (PART OF KIT) |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT (PART OF KIT) |
| 12. | YN10V00014S012 | [1] | RING | KOB |
| 13. | YN10V00014S013 | [1] | SPRING | KOB |
| 14. | YN10V00014S014 | [1] | SCREW | KOB |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONCASE (PART OF KIT) |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONCASE (PART OF KIT) |
| 300. | YN10V00033R100 | [1] | SHAFT, PLANETARY CAR | KOBREPAIR KIT (INCLUDES 10,11,15, 16, 353, 354) |
| 312. | YN10V00006S312 | [1] | LOCK NUT | KOBM14x1.50mm |
| 353. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR (PART OF KIT) |
| 354. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR (PART OF KIT) |
| 355. | YN10V00006S355 | [1] | FILTER | KOB |
| 433. | YN10V00006S433 | [2] | SOCKET | KOBM08 |
| 434. | YN10V00006S434 | [2] | SOCKET | KOBM08 |
| 435. | YX10V00004S435 | [2] | SOCKET | KOB |
| 466. | 2441U667S466 | [2] | PLUG | KOB1/4" PF |
| 467. | YN10V00006S467 | [1] | ADAPTER | KOB1/2" x 3/8" PF |
| 700. | YN10V00006S700 | [1] | RING | KOB |
| 710. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOBID 79.40 ± 0.69 x OD 85mm |
| 725. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 728. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 732. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 850. | ZR26X01800 | [1] | RING | KOBRetaining -- ID 18 x OD 19.5 x Th 1.0mm |
