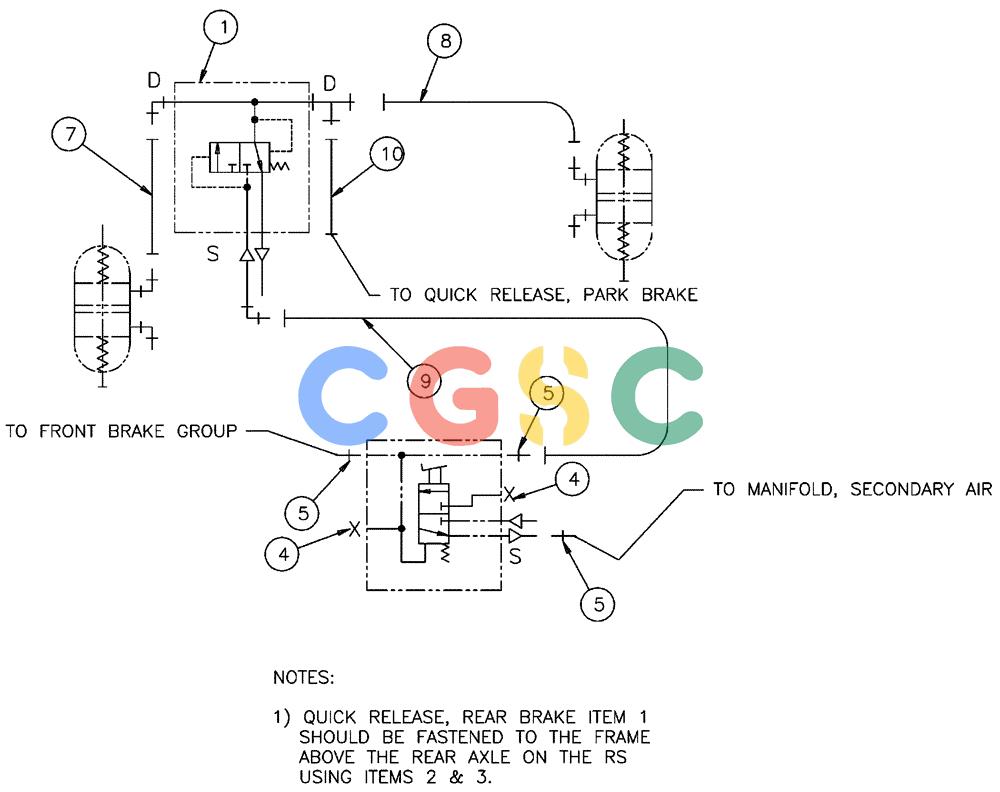

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (07-006) - SERVICE BRAKE GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Quick Release, Rear Brake
|
| 2. |
43128
|
[4] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 3. |
86528579
|
[4] |
NUT,M8 x 1.25
|
WIN
|
| 4. |
BN1666161
|
[2] |
PLUG
|
BN
Allen Head 1/2
|
| 5. |
BN2290182
|
[3] |
FITTING
|
BN
0103-8-8S
|
| 7. |
342924A1
|
[1] |
HOSE
|
BN
6 x 21"
|
| 8. |
342926A1
|
[1] |
HOSE
|
BN
6 x 35"
|
| 9. |
342923A1
|
[1] |
HOSE
|
BN
8 x 225"
|
| 10. |
342925A1
|
[1] |
HOSE
|
BN
6 x 28"
|
