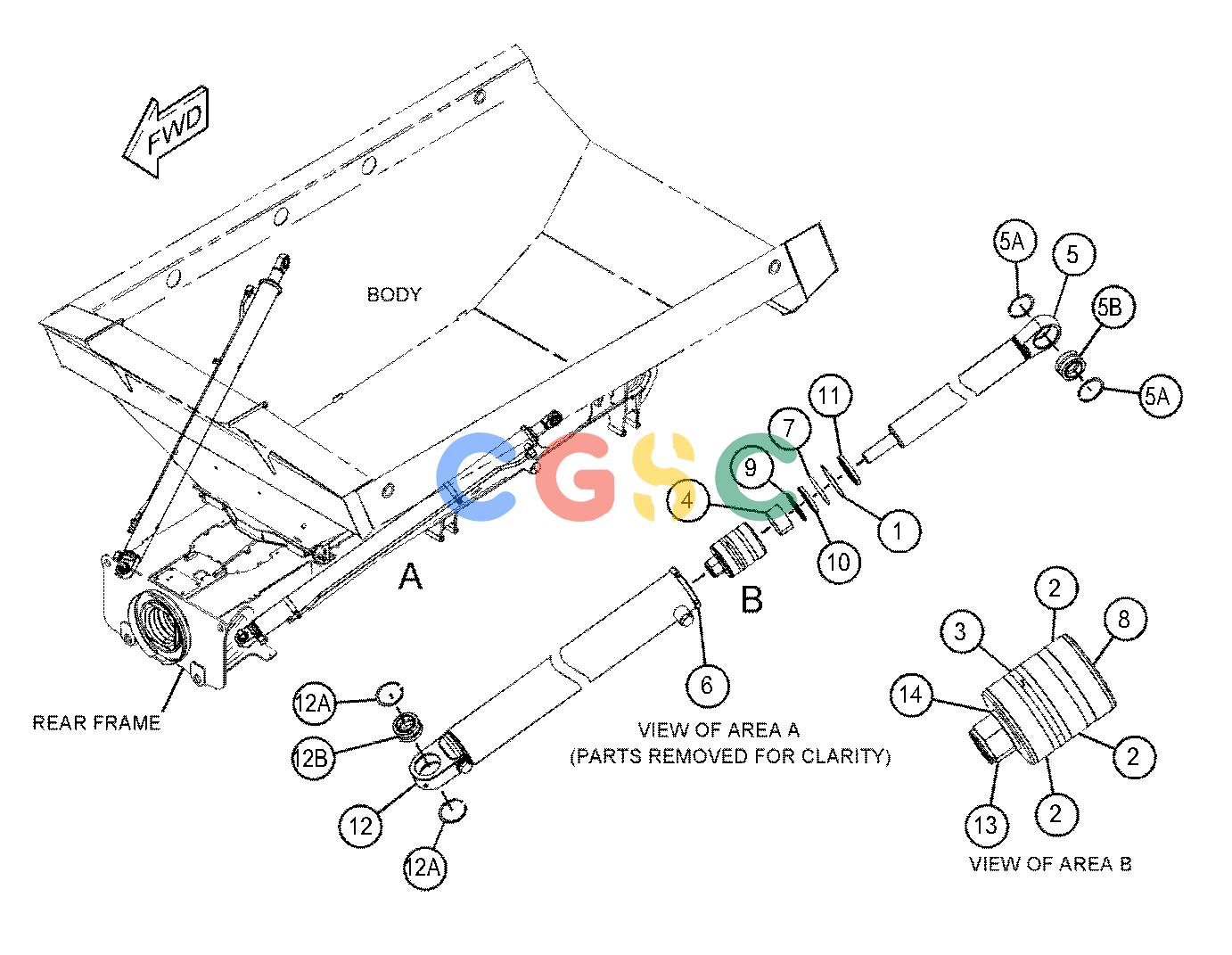

卡特零件查询（735） 447-1582: CYLINDER GP-HOIST
广数供应链运营团队, 15 02月, 2025，浏览：
692 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2K-4096 | [1] | RING-BACKUP | |
| 2. | 4J-4630 | [3] | RING-WEAR | |
| 3. | 9X-7264 | [1] | SEAL AS | |
| 4. | 132-4907 | [1] | RING-WEAR | |
| 5. | 141-6670 | [1] | ROD AS | |
| 5A. | 1J-6472 | [2] | RING-RETAINING | |
| 5B. | 066-5815 | [1] | BEARING-SELF-ALIGNING | |
| 6. | 143-7680 | [1] | HEAD AS | |
| | 311-9318 | [1] | SEAL-WIPER | |
| 7. | 175-7904 | [1] | SEAL-O-RING | |
| 8. | 283-8469 | [1] | PISTON | |
| 9. | 311-9316 | [1] | SEAL AS-BUFFER | |
| 10. | 311-9317 | [1] | SEAL-U-CUP | |
| 11. | 311-9318 | [1] | SEAL-WIPER | |
| 12. | 447-1583 | [1] | CYLINDER AS | |
| 12A. | 1J-6472 | [2] | RING-RETAINING | |
| 12B. | 066-5815 | [1] | BEARING-SELF-ALIGNING | |
| 13. | 2U-2576 | [1] | NUT(1-1/2-6-THD) | |
| 14. | 3S-6162 | [1] | WASHER-HARD(40.5X67X6-MM THK) | |
