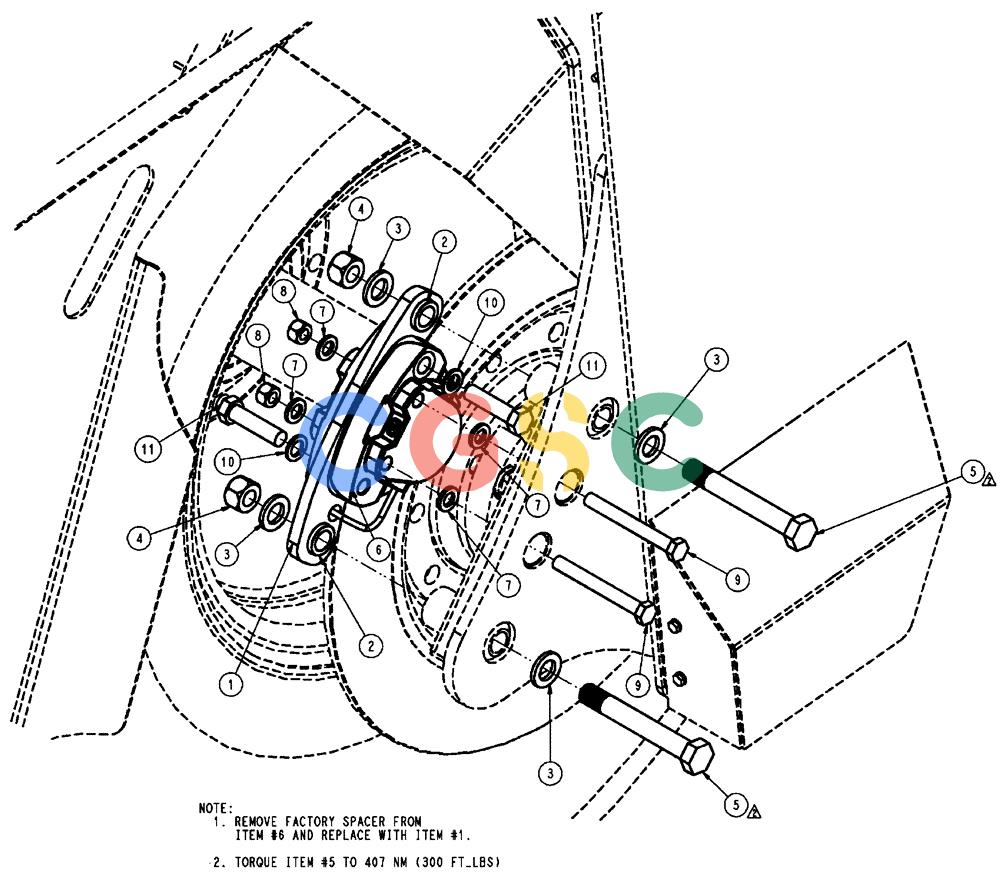

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (07-008) - BRAKE CALIPER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
326 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87268288
|
[1] |
SPACER
|
BN
Brake, Mach
|
| 2. |
87268287
|
[2] |
SPACER
|
BN
Bushing
|
| 3. |
87016608
|
[4] |
WASHER,25.8mm ID x 44.5mm OD x 5mm Thk
|
RAC
|
| 4. |
832-41424
|
[2] |
NUT
|
BN
M24 x 3, Cl 10 Superseded by part number: 87344027
|
| 5. |
343378A1
|
[2] |
BOLT
|
BN
M24-3 X 175, HH, 10.9
|
| 6. |
343996A1
|
[1] |
CALIPER
|
BN
brake, Mico, 02-520-250 (complete)
|
| . . |
343996A1R
|
[1] |
REMAN-BRAKE ASSY.
|
BN
Reman For FLX3010, FLX3510
|
| . . |
343996A1C
|
[1] |
CORE-BRAKE ASSY.
|
BN
Return Number
|
| . . |
S107710
|
[1] |
SCREW
|
CAS
bleeder plug
|
| . . |
87271759
|
[1] |
TUBE
|
BN
Assembly
|
| . . |
87271760
|
[2] |
HYD CONNECTOR
|
BN
|
| . . |
87271758
|
[2] |
BLEEDER
|
BN
assembly
|
| . . |
BN314703
|
[1] |
KIT
|
BN
brake repair
|
| . . |
BN314704
|
[1] |
KIT
|
BN
brake lining
|
| 7. |
86625266
|
[4] |
WASHER,17.5mm ID x 30mm OD x 4mm Thk
|
GI
|
| 8. |
86512555
|
[2] |
NUT,M16 x 2, Cl 10
|
FOR
|
| 9. |
827-16140
|
[2] |
BOLT,Hex, M16 x 2 x 140mm, Cl 10.9
|
CAS
Superseded by part number: 87341861
|
| 10. |
495-81039
|
[2] |
WASHER,25/32" x 1 1/4" x .120"
|
CAS
Superseded by part number: 87024778
|
| 11. |
280128
|
[2] |
BOLT,Hex, 3/4" - 10 x 3", Gr 8
|
FOR
|
