凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (07-016) - AIR HORN GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
745 次

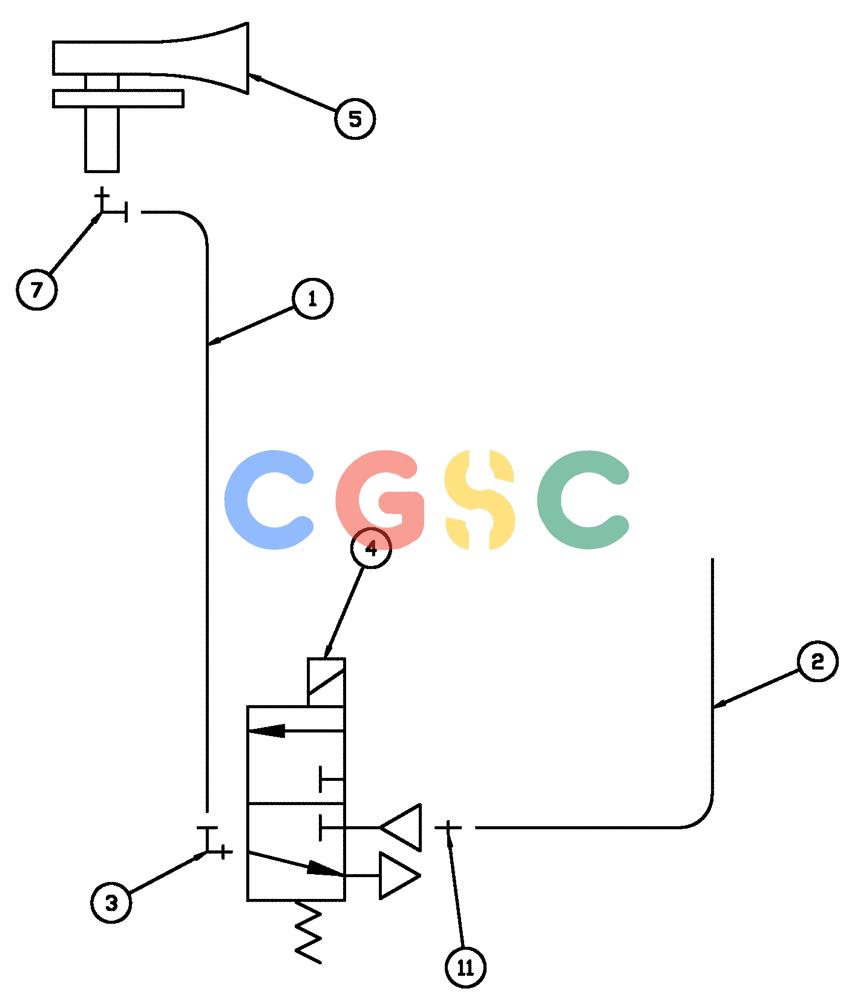

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87265540
|
[1] |
TUBE,0.375" DIA
|
BN
Black 3/8 x 120"
|
| 2. |
BN2292088
|
[1] |
AIR INTAKE TUBE
|
BN
3/8" Black Superseded by part number: 84422568
|
| 3. |
BN2399411
|
[1] |
ADAPTER
|
BN
Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting
|
| 5. |
87268289
|
[1] |
HORN
|
BN
Fultone, Black
|
| 7. |
BN2399413
|
[1] |
HYD CONNECTOR
|
BN
Tube ME380180
|
| 8. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 9. |
353308
|
[2] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 10. |
87529314
|
[4] |
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
|
BN
6.6 x 12.5 x 2 mm, HDN, DOR
|
| 11. |
BN2399403
|
[1] |
ADAPTER
|
BN
1/4" MPT x 3/8" OD Tube, Push Lock Fitting
|
