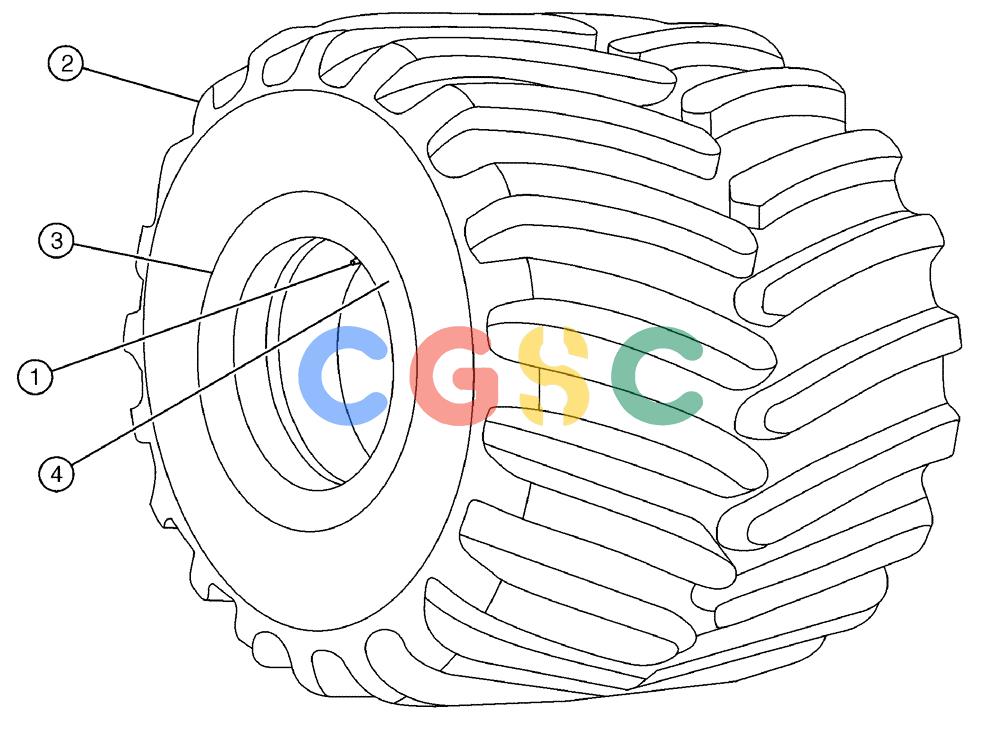

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (05-001[02]) - REAR TIRE GROUP ( TIRE SET, 66, 16P, XT GY ) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
BN324464
|
[1] |
MTD LH, 66 X 43, 16 Ply, XT
|
|
| . . |
BN324465
|
[1] |
MTD RH, 66 X 43, 16 Ply, XT
|
|
| 1. |
362766A1
|
[1] |
VALVE STEM
|
BN
TR-618A
|
| 2. |
BN321219
|
[1] |
66 X 43-25, 16Ply, FS
|
|
| 3. |
BN323605
|
[1] |
WHEEL
|
BN
36 X 25, 0 off, SIL
|
| 4. |
333089A1
|
[1] |
DECAL
|
BN
torque wheel nuts Superseded by part number: 47765851
|
| . . |
BN315229
|
[24] |
WHEEL NUT
|
BN
Flange, Wheel, 22 mm
|
| . . |
BN7136021
|
[1] |
MUD CLEANER
|
BN
Scraper-Left Rear
|
| . . |
BN7136022
|
[1] |
MUD CLEANER
|
BN
Scraper-Right Rear
|
| . . |
BN2391858
|
[1] |
O-RING
|
BN
OR25T Black
|
| . . |
BN2297235
|
[1] |
LOCKING RING
|
BN
LR25T
|
| . . |
BN2396615
|
[1] |
FLANGE
|
TYR
FL025T
|
