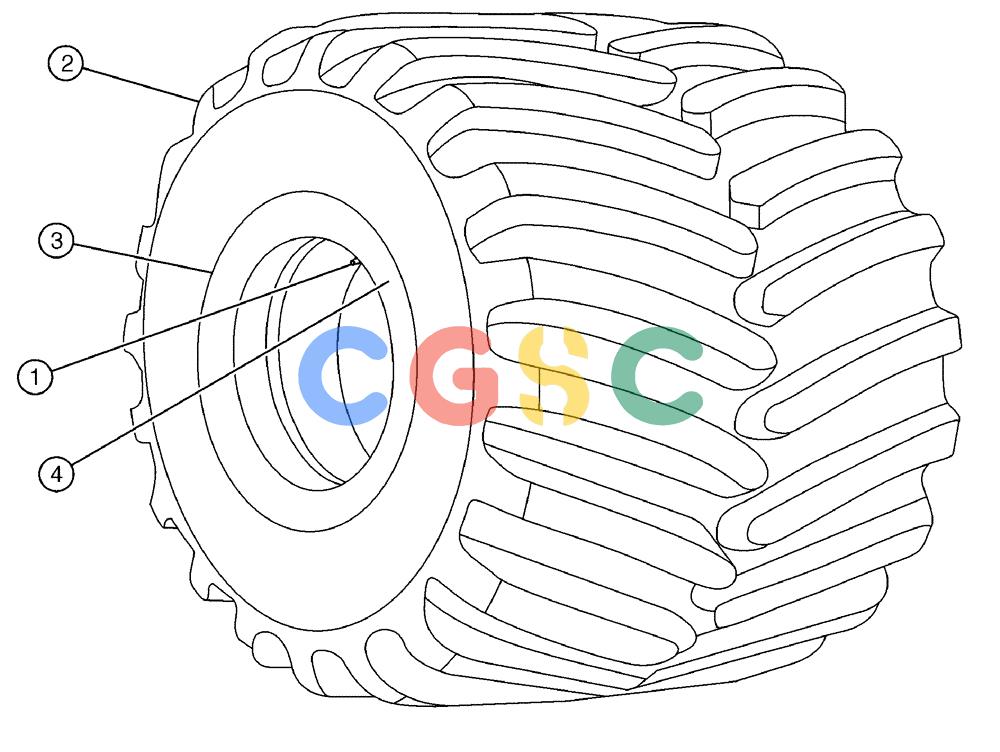

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (05-001[04]) - REAR TIRE GROUP (TIRE SET, 73, 16P, XT GY ) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
463 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
BN324473
|
[1] |
MTD LH, 73 X 43, 16 Ply, XT
|
|
| . . |
BN324474
|
[1] |
MTD RH, 73 X 43, 16 Ply, XT
|
|
| 1. |
BN306493
|
[1] |
VALVE STEM
|
BN
Stem
|
| 2. |
BN307127
|
[1] |
73 X 43-25, 16 Ply, STG XT
|
|
| 3. |
BN323606
|
[1] |
WHEEL
|
BN
Rear
|
| 4. |
333089A1
|
[1] |
DECAL
|
BN
torque wheel nuts Superseded by part number: 47765851
|
| . . |
BN315229
|
[24] |
WHEEL NUT
|
BN
Flange, Wheel, 22 mm
|
| . . |
BN302168
|
[1] |
MUD CLEANER
|
BN
Left Rear
|
| . . |
BN302169
|
[1] |
MUD CLEANER
|
BN
Right Rear
|
| . . |
BN304755
|
[1] |
O-RING,7mm Thk x 757mm ID, 65 Duro
|
BN
Superseded by part number: 87380444
|
| . . |
BN304754
|
[1] |
RING
|
TYR
Lock 32" Superseded by part number: 184472C1
|
| . . |
BN304753
|
[1] |
RING
|
TYR
Flange, Side 32 X 1.70
|
