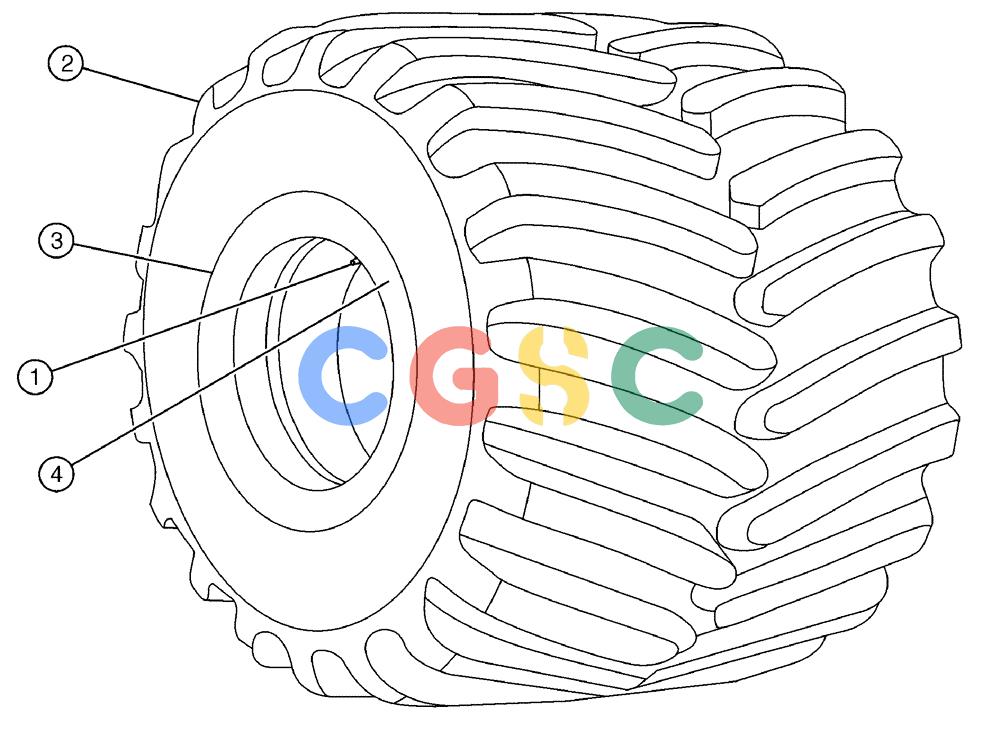

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (05-002[03]) - FRONT TIRE GROUP (TIRE ASSEMBLY, 66 RADIAL, FS) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
BN324417
|
[1] |
MTD Front, 66 Radial FS
|
|
| 1. |
362766A1
|
[1] |
VALVE STEM
|
BN
TR-618A
|
| 2. |
BN323372
|
[1] |
1050/50R25, FS
|
|
| 3. |
BN322353
|
[1] |
WHEEL
|
BN
front
|
| 4. |
333089A1
|
[1] |
DECAL
|
BN
torque wheel nuts Superseded by part number: 47765851
|
| . . |
827-22080
|
[10] |
BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9
|
CAS
Superseded by part number: 87670757
|
| . . |
896-11022
|
[10] |
WASHER,24mm ID x 44mm OD x 4mm Thk
|
CAS
Superseded by part number: 76088905
|
| . . |
BN2391858
|
[1] |
O-RING
|
BN
OR25T Black
|
| . . |
BN2396615
|
[1] |
FLANGE
|
TYR
FL025T
|
