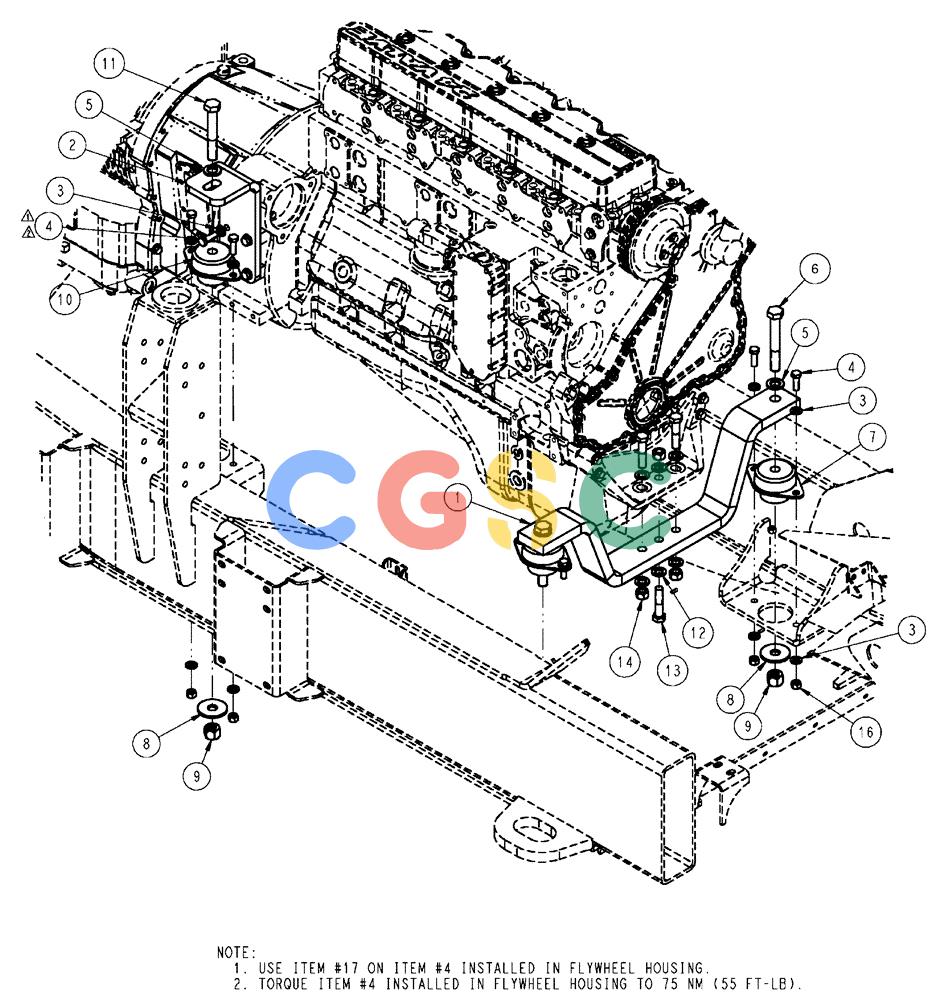

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-003) - ENGINE MOUNTS GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN322759
|
[1] |
CROSSMEMBER
|
BN
Engine
|
| 2. |
BN322752
|
[2] |
PLATE
|
BN
Rear Engine Mount
|
| 3. |
86625255
|
[8] |
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
|
GI
|
| 4. |
626-12035
|
[16] |
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
|
CAS
|
| 5. |
86625260
|
[4] |
WASHER,21.8mm ID x 37.5mm OD x 4mm Thk
|
FAR
|
| 6. |
84025013
|
[2] |
BOLT,Hex, M20 x 140mm, Cl 10.9
|
PLO
|
| 7. |
BN322889
|
[2] |
MOUNTING PLATE
|
BN
Front Engine
|
| 8. |
BN322925
|
[4] |
WASHER
|
BN
Rebound M20
|
| 9. |
264031
|
[4] |
NUT,M20 x 2.5, Cl 10
|
BER
|
| 10. |
BN324263
|
[2] |
MOUNTING PLATE
|
BN
Rear Engine
|
| 11. |
86639145
|
[2] |
BOLT,Hex, M20 x 130mm, Cl 10.9
|
FAR
|
| 12. |
86625266
|
[6] |
WASHER,17.5mm ID x 30mm OD x 4mm Thk
|
GI
|
| 13. |
9847468
|
[3] |
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
|
NH
Superseded by part number: 87015545
|
| 14. |
832-46416
|
[3] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 16. |
100038
|
[8] |
NUT,M12 x 1.75, Cl 8
|
NH
|
