神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (09-018 ) - OIL LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
785 次

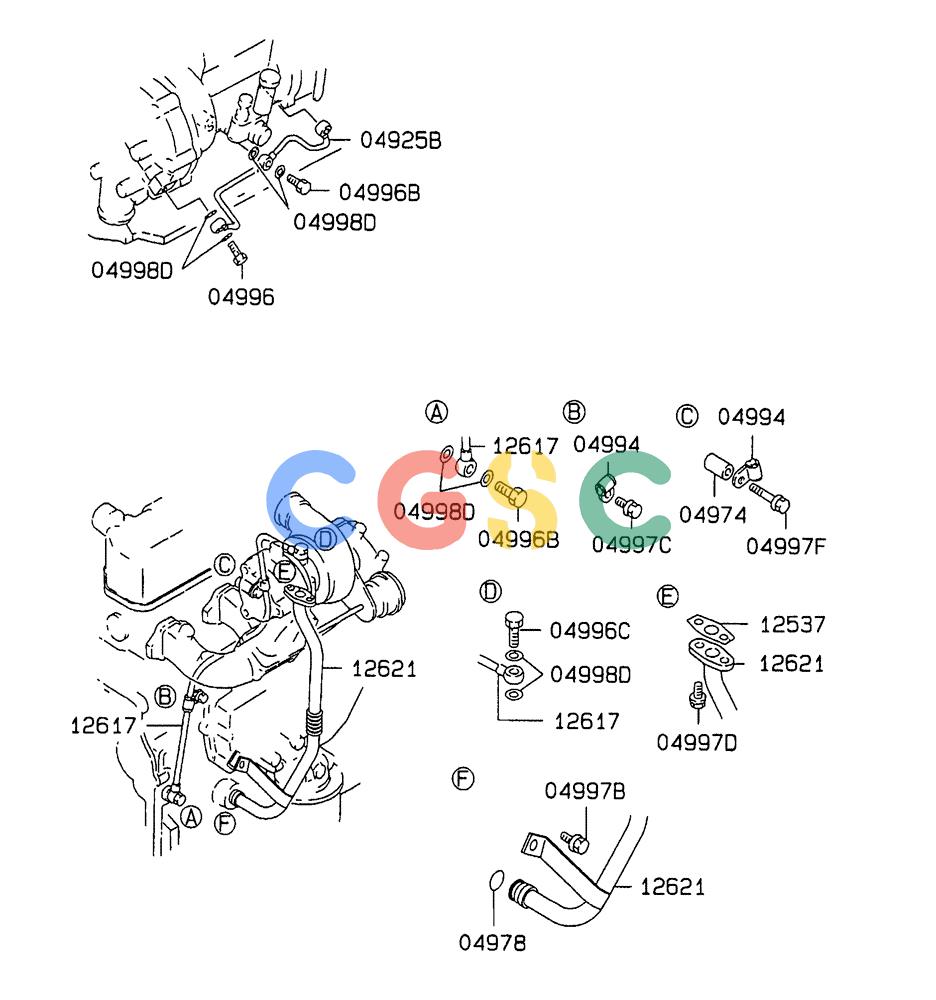

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 04925B. | VAME018449 | [1] | TUBE | KOBENG OIL LINE 0203-1- |
| 4974. | VAME920014 | [1] | SPACER, ENG OIL LINE 0203-1-T=25 | |
| 4978. | VAMH035015 | [1] | O-RING | KOBENG OIL LINE 0203-1-,17 |
| 4994. | VA3003638302 | [2] | CLAMP ENG OIL LINE 0203-1- | CLAMP ENG OIL LINE 0203-1- |
| 4996. | VA3117546100 | [1] | SCREW | KOB0203-1-10X20 |
| 04996B. | VAMH037279 | [1] | BOLT | KOBENG OIL LINE 0203-1-10X20 |
| 04996C. | VAMF650102 | [1] | SCREW | KOBENG OIL LINE 0203-1-10X20 |
| 04997B. | VAMF140223 | [1] | BOLT | KOBENG OIL LINE 0203-1-FLANGE,8X16 |
| 04997C. | VAMF140221 | [1] | BOLT | KOBENG OIL LINE 0203-1-FLANGE,8X12 |
| 04997D. | VAMH000999 | [2] | BOLT | KOBENG OIL LINE 0203-1-FLANGE.6X12 |
| 04997F. | VAMF140231 | [1] | BOLT | KOBENG OIL LINE 0203-1-FLANGE,8X35 |
| 04998D. | VAMF660063 | [8] | GASKET | KOBENG OIL LINE 0203-1-,10 Superseded by part number: VAF420210000 |
| 12537. | VAMD194403 | [1] | GASKET | KOBT/C OIL RETURN TUBE 0203-1- Superseded by part number: VAMR258477 |
| 12617. | VAME080619 | [1] | TUBE | KOBT/C OIL FEED 0203-1- |
| 12621. | VAME217035 | [1] | TUBE | KOBT/C OIL RETURN 0203-1- |
