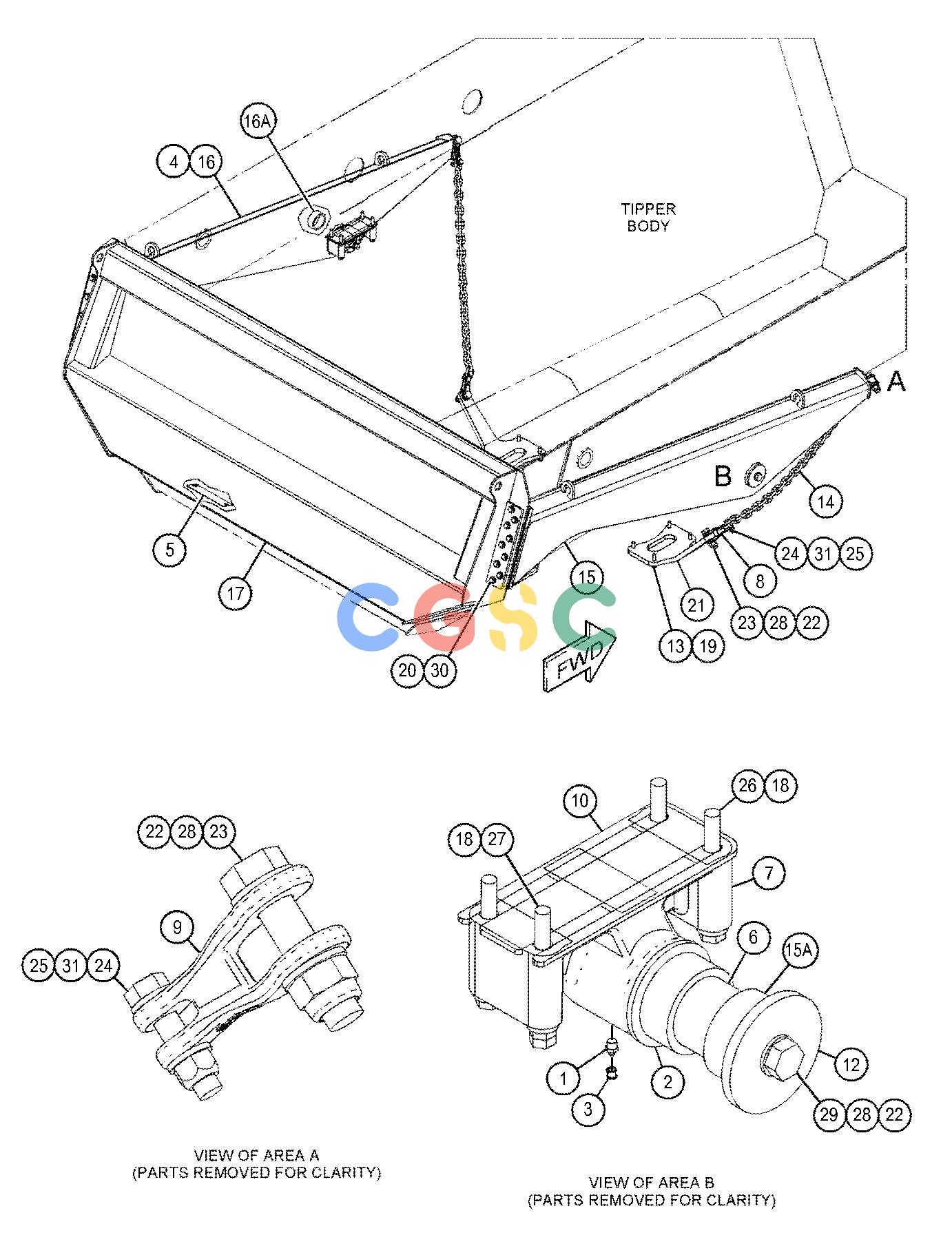

卡特零件查询（735） 526-6596: TAILGATE AR
广数供应链运营团队, 15 02月, 2025，浏览：
270 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 3U-2837 | [2] | PAD-THRUST | |
| 3. | 5U-7151 | [2] | CAP-GREASE | |
| 4. | 154-6369B | [12] | SHIM(3-MM THK) | |
| | 360-4699B | [4] | SHIM(1-MM THK) | |
| 5. | 169-4040 | [4] | SHIM(2-MM THK) | |
| 6. | 192-9068 | [2] | PIN | |
| 7. | 233-1363 | [2] | PIVOT(TAILGATE) | |
| 8. | 257-7244 | [2] | LINK(LONG)(CAST) | |
| 9. | 257-7245 | [4] | LINK(SHORT)(CAST) | |
| 10. | 337-0716 | [6] | SHIM(6-MM THK) | |
| 12. | 437-1907 | [2] | WASHER(27X130X12-MM THK) | |
| 13. | 8T-0357M | [8] | BOLT(M16X2X70-MM) | |
| 14. | 552-5801 | [2] | CHAIN AS | |
| | | | (EACH INCLUDES) |
| | 3U-2838 | [30] | CHAIN | |
| 15. | 552-5799 | [1] | ARM AS(RH) | |
| 15A. | 192-9067 | [2] | BUSHING | |
| | 552-5802 | [1] | PLATE AS-ARM | |
| 16. | 555-2373 | [1] | ARM AS(LH) | |
| 16A. | 192-9067 | [2] | BUSHING | |
| | 552-5803 | [1] | PLATE AS-ARM | |
| 17. | 525-9938 | [1] | TAILGATE GP | |
| | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | 154-4812 | [2] | ABSORBER-SHOCK | |
| | 526-2691 | [1] | PLATE AS | |
| 18. | 198-4780 | [8] | WASHER-HARD(17.5X32X8-MM THK) | |
| 19. | 267-8821 | [8] | WASHER(17X36X12-MM THK) | |
| 20. | 3E-9411 | [18] | WASHER-HARD(17.5X38X6-MM THK) | |
| 21. | 556-8971 | [2] | PLATE | |
| 22. | 6V-7676M | [6] | NUT(M24X3-THD) | |
| 23. | 7X-2489M | [4] | BOLT(M24X3X100-MM) | |
| 24. | 7X-2554M | [4] | BOLT(M16X2X70-MM) | |
| 26. | 7X-2557M | [8] | BOLT(M16X2X140-MM) | |
| 27. | 7X-2558M | [8] | BOLT(M16X2X150-MM) | |
| 28. | 8T-4167 | [14] | WASHER-HARD(26X44X4-MM THK) | |
| 29. | 9X-8913M | [2] | BOLT(M24X3X300-MM) | |
| 30. | 8T-4175M | [18] | BOLT(M16X2X90-MM) | |
| | | | -OR- |
| | 7X-2556M | [18] | BOLT(M16X2X100-MM) | |
| | | | -OR- |
| | 8T-4173M | [18] | BOLT(M16X2X110-MM) | |
| 31. | 8T-4778M | [4] | LOCKNUT(M16X2-THD) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
