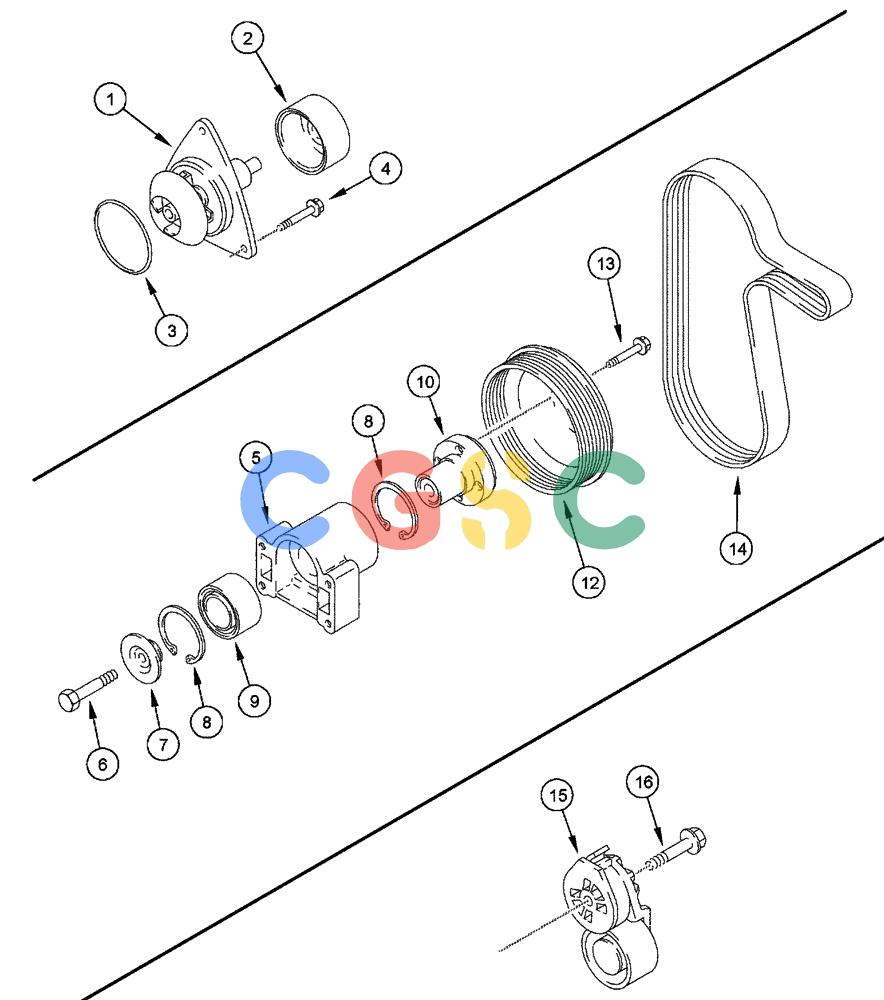

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-033) - WATER PUMP, FAN DRIVE, AND BELT TENSIONER, FLX 3510 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
J804927
|
[1] |
WATER PUMP
|
CAS
Kit - Water Pump Superseded by part number: 87308650
|
| . . |
87308650R
|
[1] |
REMAN-WATER PUMP
|
RAC
FLX3010, FLX3510 Both (8/04-8/06) Reman for New P/N J804927
|
| . . |
87308650C
|
[1] |
CORE-WATER PUMP
|
RAC
Return Number
|
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Pump - Water
|
| 3. |
238-5244
|
[1] |
O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro
|
CAS
Superseded by part number: 455025
|
| 4. |
J934054
|
[3] |
FLANGE BOLT
|
CAS
Hex, Flange, 8 - 1.25 X 28 MM Superseded by part number: 9671714
|
| 5. |
J942896
|
[1] |
SUPPORT
|
CAS
Assembly, Fan
|
| 6. |
J907769
|
[1] |
BOLT,Hex, M10 x 70mm, Cl 12.9
|
CAS
hex, special, M10 x 70 mm, class 12.9
|
| 7. |
J923044
|
[1] |
RETAINER
|
CAS
Fan Hub Superseded by part number: J923044AM
|
| 8. |
100-21250
|
[2] |
SNAP RING,2.50", Int, #250
|
CAS
Superseded by part number: 34039
|
| 9. |
J910739
|
[1] |
BALL BEARING,35mm ID x 64mm OD x 37mm W
|
CAS
|
| 10. |
J911924
|
[1] |
HUB
|
CAS
Fan
|
| 12. |
J926855
|
[1] |
PULLEY,187.23mm OD
|
CAS
Fan
|
| 13. |
86050286
|
[4] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 14. |
BN325050
|
[1] |
V-BELT,28.00 mm W x 2607.00 mm L
|
BN
Fan, See Figure 02-030 Superseded by part number: 84057710
|
| 15. |
87409564
|
[1] |
BELT TENSIONER
|
RAC
Superseded by part number: 87436755AM
|
| 16. |
J282433
|
[1] |
FLANGE BOLT,Hex, M10 x 1.5 x 85mm
|
CAS
|
