神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (00-005) - MALE PF PLUGS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
342 次

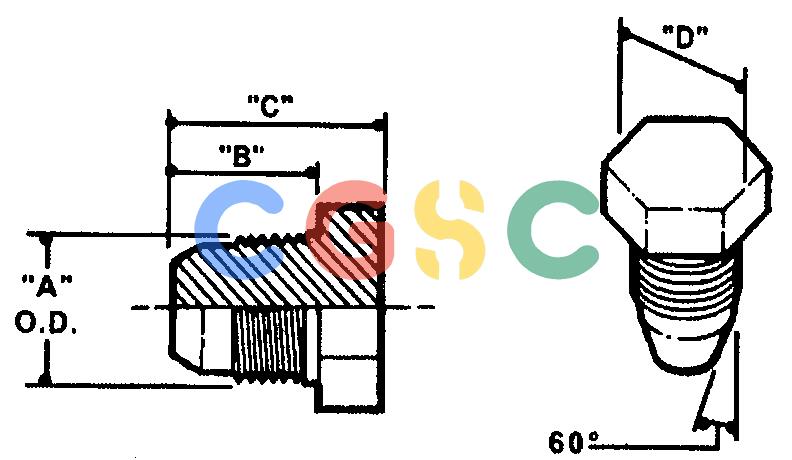

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2444Z2728D1 | [1] | PLUG | KOB1/4"PFx24.5mm Long (No O-Ring supplied), "A" O.D.: 13.5, "B" LENGTH: 16.5, "C" LENGTH: 24.5, "D" FLATS: 14, PLUG SIZE: PF 1/4 |
| . . | 2444Z2728D2 | [1] | PLUG | KOBMALE PF PLUGS, "A" O.D.: 16.6, "B" LENGTH: 17.5, "C" LENGTH: 25.5, "D" FLATS: 17, PLUG SIZE: PF 3/8 |
| . . | 2444Z2728D3 | [1] | PLUG | KOBMALE PF PLUGS, "A" O.D.: 20.6, "B" LENGTH: 20.0, "C" LENGTH: 31.0, "D" FLATS: 22, PLUG SIZE: PF 1/2 |
| . . | 2444Z2728D4 | [1] | PLUG | KOBMALE PF PLUGS, "A" O.D.: 26.2, "B" LENGTH: 21.5, "C" LENGTH: 34.0, "D" FLATS: 27, PLUG SIZE: PF 3/4 |
| . . | 2444Z2728D5 | [1] | PLUG | KOBMALE PF PLUGS, "A" O.D.: 33.3, "B" LENGTH: 23.5, "C" LENGTH: 36.0, "D" FLATS: 36, PLUG SIZE: PF 1 |
