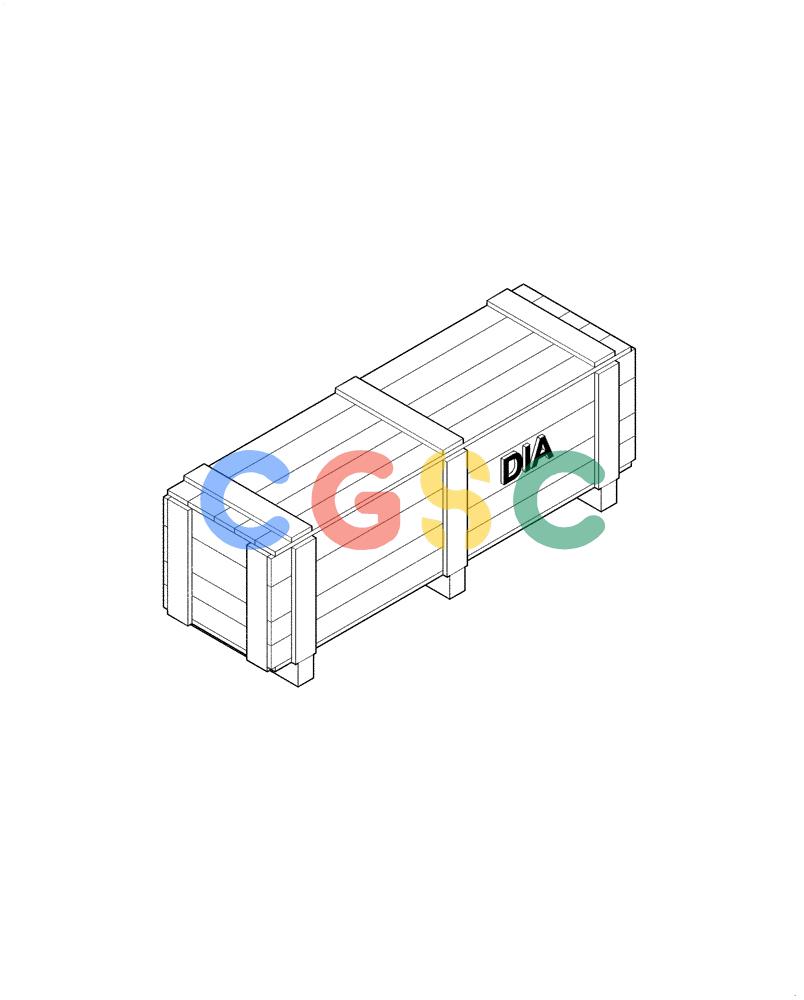

| . . | YM32TU1036F1 | [1] | KIT | KOB |
| 1. | 24100P1005F1 | [1] | VALVE | KOB Superseded by part number: 24100P1005F3 |
| 2. | 24100P1006F1 | [2] | VALVE | KOB Superseded by part number: 24100P1006F2 |
| 3. | 2414Z199D100 | [4] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
| 4. | 2416N6141 | [1] | BLOCK | KOB |
| 6. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 10. | 2420R349D085 | [1] | HOSE,6.35mm ID x 850mm L | KOB850mm Long (33-29/64 in) |
| 14. | 2420R349D280 | [1] | HOSE | KOBPF 1/4 Superseded by part number: HX21E04280DX |
| 15. | 2420R349D315 | [1] | HOSE | KOB(PF 1/4) 3150mm Long (124 in) |
| 16. | 2420T4404 | [2] | PLUG | KOB1-1/16" - 12 UNC |
| 17. | 2432T2434 | [1] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| 18. | 2432T5924 | [5] | CLAMP | KOBSingle Block -- 80x50x25mm |
| 19. | 2432T6122 | [5] | CLAMP | KOBSingle Block -- 75x50x25mm |
| 20. | 2444P1744D2 | [2] | CONNECTION | KOB(No O-Ring supplied) |
| 22. | 2444R1120D110 | [1] | HOSE | KOB(1/4" PF) 1100mm Long (43-19/64 in) |
| 23. | 2444R399D7 | [1] | ELBOW | KOB |
| 27. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 29. | 2444Z3722D4 | [1] | HOSE | KOB(1" PF) 800mm Long (31-1/2 in) |
| 30. | 2479U1190F32 | [1] | SWITCH | KOB |
| 32. | HG23H12012G1 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 33. | HG23H12016G1 | [1] | HYD CONNECTOR | KOB1 3/16"-12UN-PF1" Superseded by part number: YW03H01227P1 |
| 34. | HG24F10012G3 | [1] | HYD CONNECTOR | KOB1"-14UNS - 3/4"PT x 90mm Long (Incls. O-Ring ZD12P02400) |
| 35. | HG33F10016G1 | [1] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) 56mm Long |
| 36. | HG33H16012G1 | [1] | ELBOW | KOB |
| 39. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 42. | LB42H01001P1 | [4] | CLAMP | KOB |
| 43. | LB42H01004P1 | [2] | BUSHING,28mm ID x 45mm OD x 68mm L | KOB |
| 45. | LC42H01020P1 | [2] | BUSHING,34mm ID x 53mm OD x 68mm L | KOB |
| 47. | LS43H01005P1 | [4] | CLAMP,43mm ID, 12mm Bolt Hole, J Type | KOB |
| 49. | PY03M01026P1 | [1] | PIN | KOBM08x1.25x115mm Long |
| 50. | PY20T01062P1 | [1] | CAUTION DECAL | KOBDecal, Caution - Attachment operation by foot pedal. Always check the … |
| 53. | YM03H01015P1 | [1] | TUBE | KOB |
| 54. | YM03H01041P2 | [1] | BRACKET | KOB Superseded by part number: YM03H01065P1 |
| 55. | YM03H01042P1 | [1] | TUBE | KOB |
| 56. | YM03H01043P1 | [1] | SUPPORT | KOB |
| 57. | YM12B01041P1 | [1] | LINK | KOB |
| 58. | YM12B01042P1 | [1] | POWER ARM | KOB |
| 59. | YM42H01056P1 | [1] | O-RING,29.87mm ID x 33.43mm OD x 1.78mm | KOBID 29.87 ± 0.15 x OD 33.43mm Superseded by part number: YY42H01313P1 |
| 60. | YM42H01105P1 | [1] | TUBE | KOB |
| 61. | YM42H01106P1 | [1] | TUBE,2714, 1252 mm L | KOB |
| 62. | YM42H01117P1 | [1] | TUBE,2353, 166 mm L | KOB |
| 63. | YM42H01118P1 | [1] | TUBE,2353, 166 mm L | KOB |
| 64. | YM43H01040P1 | [1] | TUBE,1209, 84 mm L | KOB |
| 65. | YM43H01041P1 | [1] | TUBE,1209, 84 mm L | KOB |
| 66. | YN02B01031D2 | [1] | SPACER | KOB |
| 67. | YN03H01489P1 | [1] | BLOCK | KOB |
| 68. | YN03M01266P2 | [1] | RUBBER SLEEVE | KOB |
| 69. | YN03M01319P1 | [1] | PEDAL | KOB |
| 74. | YN20T01414P1 | [1] | LABEL | KOBDecal, Caution - Maintenance - (when using nibbler or breaker) … |
| 75. | YN26M00054P1 | [1] | FLOOR MAT | KOB |
| 77. | YN30V00080F1 | [1] | VALVE | KOB |
| 79. | YN42H01366P1 | [1] | CLAMP | KOB |
| 80. | YN68H01035P1 | [2] | CLAMP | KOB |
| 87. | YT20T01054P1 | [1] | LABEL | KOBDecal, Caution - Do not set this switch to nibbler combined flow operation … |
| 88. | YT30M01002F1 | [1] | LOCK | KOBAssembly |
| 90. | YV50V00001P1 | [1] | ELEMENT | KOB |
| 91. | YW43H01044P1 | [2] | BRACKET | KOB |
| 92. | YX52S00010P1 | [1] | SENSOR | KOBPressure (PF 1/4) Superseded by part number: LC52S00019P1 |
| 93. | YY20T01039P1 | [1] | LABEL | KOBDecal, Caution, Procedure to change selector valve… |
| 94. | ZD12A01600 | [4] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 95. | ZD12A01800 | [9] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 96. | ZD12A02100 | [4] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 97. | ZD12P02400 | [2] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 98. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 99. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 101. | ZE72X16000 | [2] | PLUG | KOB(Incls. O-Ring ZD12P02900) |
| 102. | ZG23F10012 | [1] | HYD CONNECTOR | KOB5/8"-3/4" PT (Incls. O-Ring ZD12P02400) |
| 103. | ZG33F10012 | [1] | 90 ELBOW,1"-14 UNS x PF 3/4" | KOB90° -- 1" -14UNS - PF 3/4 (Incls. O-Ring ZD12P02400) |
| 104. | ZH22X04000 | [3] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 105. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 106. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 107. | ZH32X04006 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| 110. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 111. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 113. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 114. | ZS18C08025 | [10] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 117. | ZS18C08065 | [4] | SCREW,Hex, M8 x 65mm | KOBM08x1.25x65mm |
| 119. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 120. | ZS18C10030 | [8] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 121. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 122. | ZS18C12045 | [4] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 123. | ZS18C12060 | [20] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm |
| 124. | ZS18C12065 | [3] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 125. | ZS28C10020 | [2] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 126. | ZW16H08000 | [16] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 127. | ZW16H10000 | [8] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 128. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 130. | ZW16X08000 | [7] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 131. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 133. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 134. | ZW26X12000 | [26] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 135. | ZX20H12105 | [2] | HOSE | KOB1050mm Long (41-21/64 in) |
| 136. | ZX30H10058 | [1] | HOSE | KOB |
| 137. | ZX30H10066 | [1] | HOSE | KOB |
| 138. | ZX50H12185 | [1] | HOSE | KOB1850mm Long (72-53/64 in) |
| 139. | ZX50H16185 | [1] | HOSE | KOB1850mm Long (72-53/64 in) |
| 140. | PY01P01043D6 | [6] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
