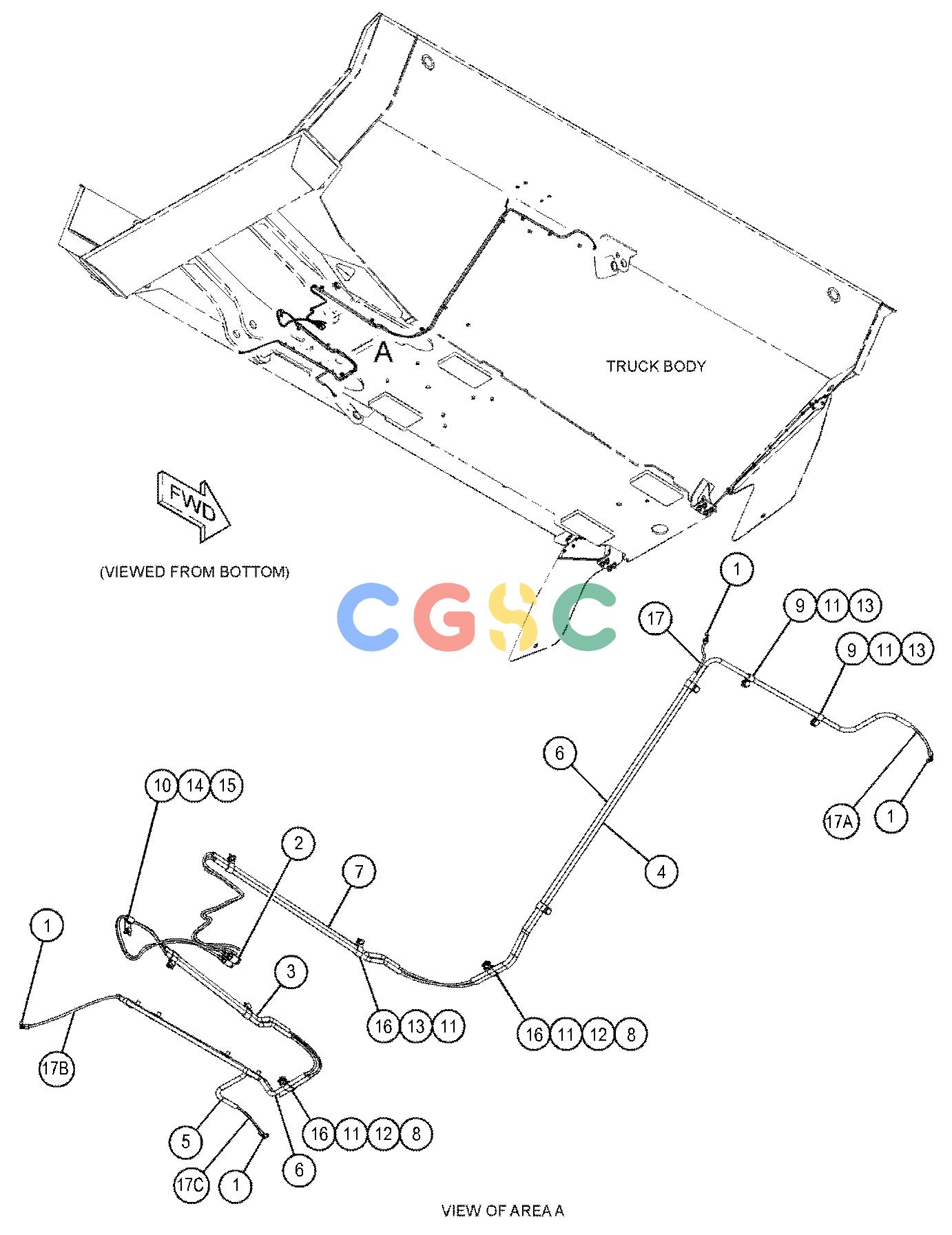

卡特零件查询（735） 526-0554: LINES GP-LUBRICATION
广数供应链运营团队, 15 02月, 2025，浏览：
123 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-3464 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 2. | 221-1585 | [2] | INJECTOR AS-GREASE(NO. 8.5) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 3. | 420-5328 | [2] | COVER-HOSE | |
| 4. | 525-9534 | [1] | TUBE | |
| 5. | 525-9535 | [1] | TUBE | |
| 6. | 525-9536 | [2] | TUBE | |
| 7. | 525-9537 | [2] | TUBE | |
| 8. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 9. | 3U-2752 | [4] | CLIP(LOOP) | |
| 10. | 4D-9517 | [1] | CLIP(SLOT) | |
| 11. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 13. | 8T-4191M | [12] | BOLT(M10X1.5X16-MM) | |
| 14. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 15. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 9M-4995 | [10] | CLIP | |
| 17. | 161-9030E | | HOSE(325-CM) | |
| 17A. | 161-9030E | | HOSE(396-CM) | |
| 17B. | 161-9030E | | HOSE(299-CM) | |
| 17C. | 161-9030E | | HOSE(368-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
