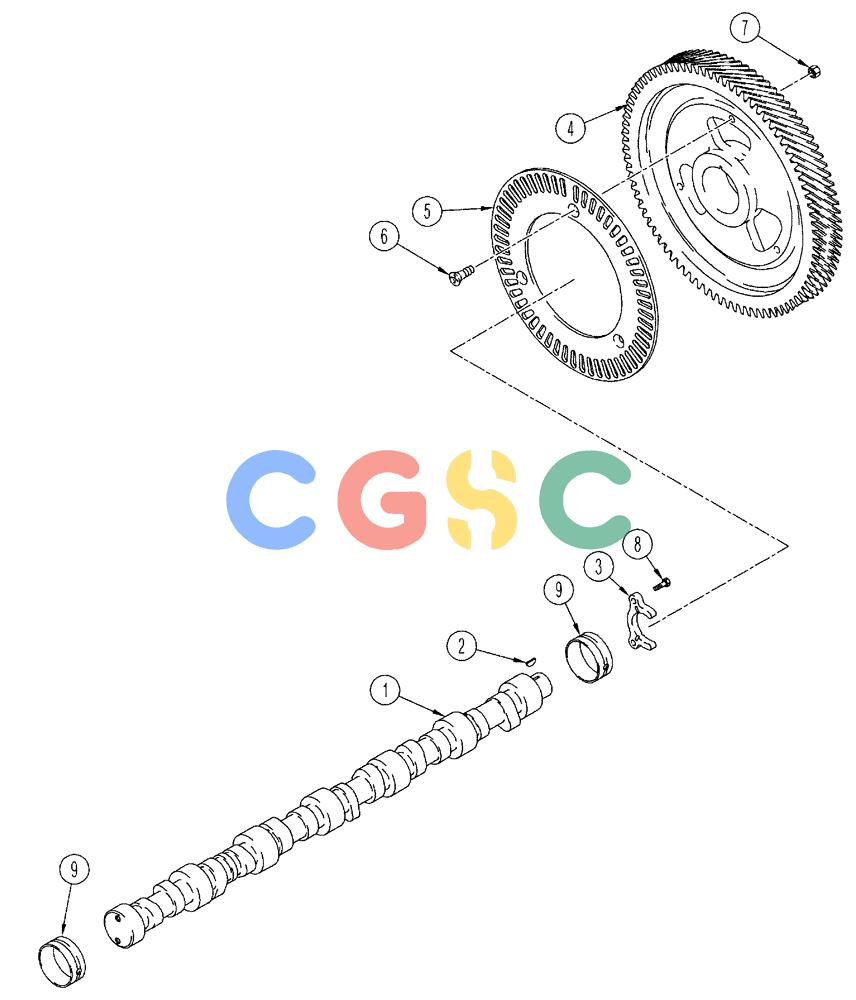

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-053) - CAMSHAFT, FLX 3010 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
835 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
J938163
|
[1] |
CAMSHAFT
|
CAS
|
| 1. |
J938163R
|
[1] |
REMAN-CAMSHAFT
|
CAS
FLX3010
|
| 1. |
J938163C
|
[1] |
CORE-CAMSHAFT
|
CAS
Return Number
|
| 2. |
10205810
|
[1] |
WOODRUFF KEY,4mm x 6.5mm x 15.72mm
|
TOR
Superseded by part number: 10205820
|
| 3. |
J944001
|
[1] |
SUPPORT
|
CAS
Camshaft Thrust
|
| . . |
J944298
|
[1] |
GEAR
|
CAS
Assembly - Camshaft
|
| 4. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Gear - Camshaft
|
| 8. |
J900227
|
[2] |
BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9
|
CAS
|
| 9. |
J945320
|
[7] |
BUSHING
|
CAS
Camshaft
|
