429461A1
|
[1] |
ENGINE
|
BN
QSC 300 HP, 535 Superseded by part number: 382365A1, 382365A1, 84252737R, 382365A1, 84252737R, J991308
|
| . . |
382365A1
|
[1] |
BASIC ENGINE
|
CAS
8.3L, 24 Valve, 6 Cyl. Superseded by part number: 84252737R
|
| . . |
84252737R
|
[1] |
REMAN-BASIC ENGINE
|
RAC
FLX3010, FLX3510
|
| . . |
84252737C
|
[1] |
CORE-BASIC ENGINE
|
RAC
Return Part Number
|
| . . |
J991308
|
[1] |
SHORT ENGINE
|
CAS
Block Assembly- New
|
| . . |
JR991308
|
[1] |
REMAN-SHORT ENGINE
|
CAS
|
| . . |
6830SHBC
|
[1] |
CORE-SHORT ENGINE
|
CAS
Engine, Short Block Cyl.
|
| . . |
84271502
|
[1] |
KIT
|
BN
KIT, CYLINDER BLOCK CUMMINS 4089078
|
| . . |
J939299
|
[1] |
BASIC BLOCK
|
CAS
Assembly - Stripped, Engine Superseded by part number: 87775138, 87444195
|

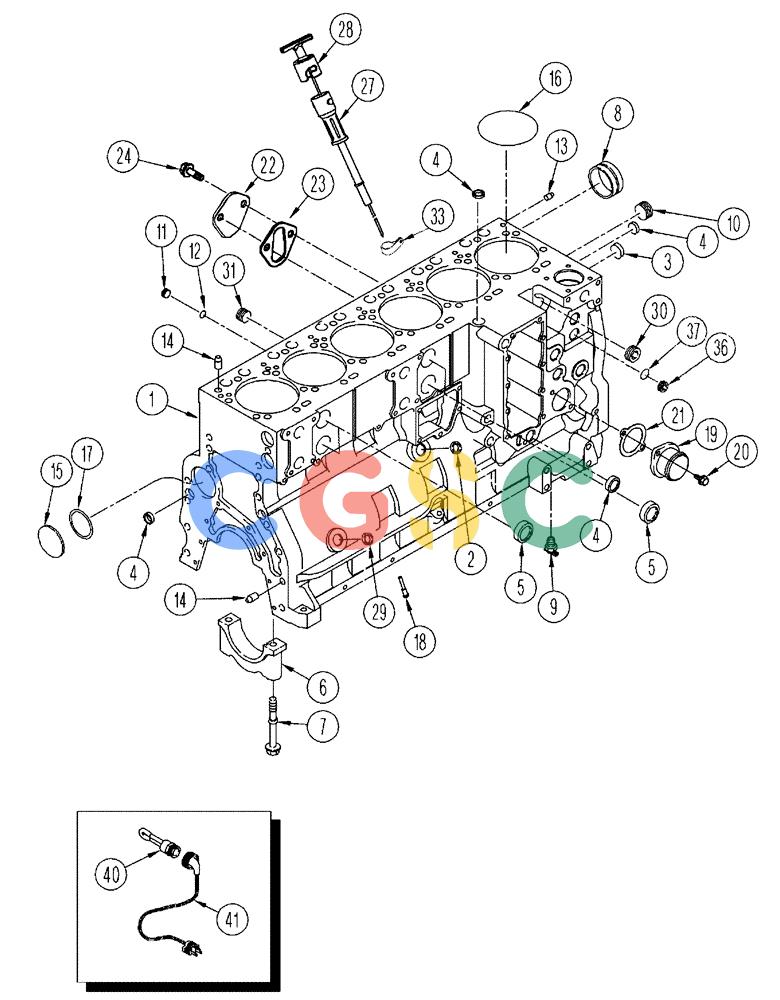

| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Block-Engine
|
| 3. |
A77586
|
[2] |
PLUG
|
IH
Expansion, 28.9 mm od
|
| 4. |
A77506
|
[4] |
PLUG
|
IH
Expansion, 21 mm od
|
| 5. |
J905401
|
[4] |
PLUG
|
IH
Expansion, 35 MM OD
|
| 5A. |
87708865
|
[1] |
PLUG,M42 x 2
|
RAC
M42 - 2 Threaded Plug Used On Reman and Newer Blocks
|
| 6. |
J936058
|
[7] |
BEARING CAP
|
CAS
Main Bearing Superseded by part number: 87444056
|
| 7. |
J916369
|
[14] |
FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9
|
CAS
Superseded by part number: J916369AM
|
| 8. |
J945329
|
[7] |
CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L
|
CAS
|
| . . |
J800332
|
[1] |
KIT
|
CAS
Block Hardware Superseded by part number: 86625234, J907177, J926048AM, J678923, J901846AM, 86625135, J900257AM, J928031, 86637927
|
| 9. |
217-103
|
[1] |
COCK, DRAIN
|
CAS
valve, 1/4" PT Superseded by part number: 86625234
|
| 10. |
86625135
|
[1] |
PLUG,1" - 11-1/2 NPT
|
RAC
|
| 11. |
J678923
|
[6] |
PLUG,M10 x 1
|
CAS
Hex Socket, 10 MM
|
| 12. |
86625087
|
[1] |
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
|
FAR
|
| 13. |
J900257
|
[2] |
PIN,10.01mm OD x 16mm L
|
CAS
10 mm x 16 mm long Superseded by part number: J900257AM
|
| 14. |
J901846
|
[4] |
PIN,12.01mm OD x 24mm L
|
IH
Dowel Superseded by part number: J901846AM
|
| 15. |
41-3044
|
[1] |
PLUG,Exp, 2 3/4"
|
CAS
Superseded by part number: 86637927
|
| 16. |
J907177
|
[6] |
SEAL,118mm ID x 122.32mm OD x 4mm Thk
|
IH
Sealing
|
| 17. |
J926048
|
[1] |
O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro
|
CAS
Sealing, 66 MM Id Superseded by part number: J926048AM
|
| 18. |
J928031
|
[12] |
NOZZLE,8.5mm OD x 30mm L
|
CAS
Piston Cooling
|
| 19. |
J913030
|
[1] |
FITTING
|
CAS
Water
|
| 20. |
845-8020
|
[2] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
|
| 21. |
J945603
|
[1] |
GASKET,1.65mm Thk
|
CAS
Mounting, Water Inlet
|
| 22. |
J948083
|
[1] |
COVER
|
CAS
Plate Superseded by part number: J948083AM
|
| 23. |
J939258
|
[1] |
GASKET,1.21mm Thk
|
CAS
lift pump
|
| 27. |
87418224
|
[1] |
TUBE,13.29mm L
|
BRR
Dipstick
|
| 28. |
87418222
|
[1] |
DIPSTICK
|
BRR
Engine Oil
|
| 29. |
J943808
|
[1] |
PLUG
|
CAS
Expansion Superseded by part number: J943808AM
|
| 30. |
263136
|
[1] |
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
|
NH
PLUG, MAGNETIC
|
| 31. |
444704
|
[1] |
PLUG,Hex Soc, 1/2"-14
|
CAS
Superseded by part number: 87034671
|
| 32. |
J920443
|
[1] |
PLUG
|
CAS
Expansion, 30 mm od
|
| 33. |
A77508
|
[1] |
CLAMP
|
CAS
P-Type, 7/16" id
|
| 36. |
313244A1
|
[2] |
PLUG
|
CAS
hex socket, 22 mm
|
| 37. |
313246A1
|
[1] |
O-RING,2.2mm Thk x 19.3mm ID
|
CAS
19 mm id x 2.2 mm
|
| . . |
310493A1
|
[1] |
KIT
|
CAS
engine block heater, 120V, 1000W
|
| 41. |
87105748
|
[1] |
ELECTRIC CABLE,120V, 15A
|
GI
1829 mm (72") (Engine Block Heater, 120 Volt)
|
| . . |
310494A1
|
[1] |
KIT
|
CAS
engine block heater, 240V, 1000W
|
| 41. |
J913112
|
[1] |
WIRE HARNESS
|
CAS
Heater (Engine Block Heater, 120 V)
|
