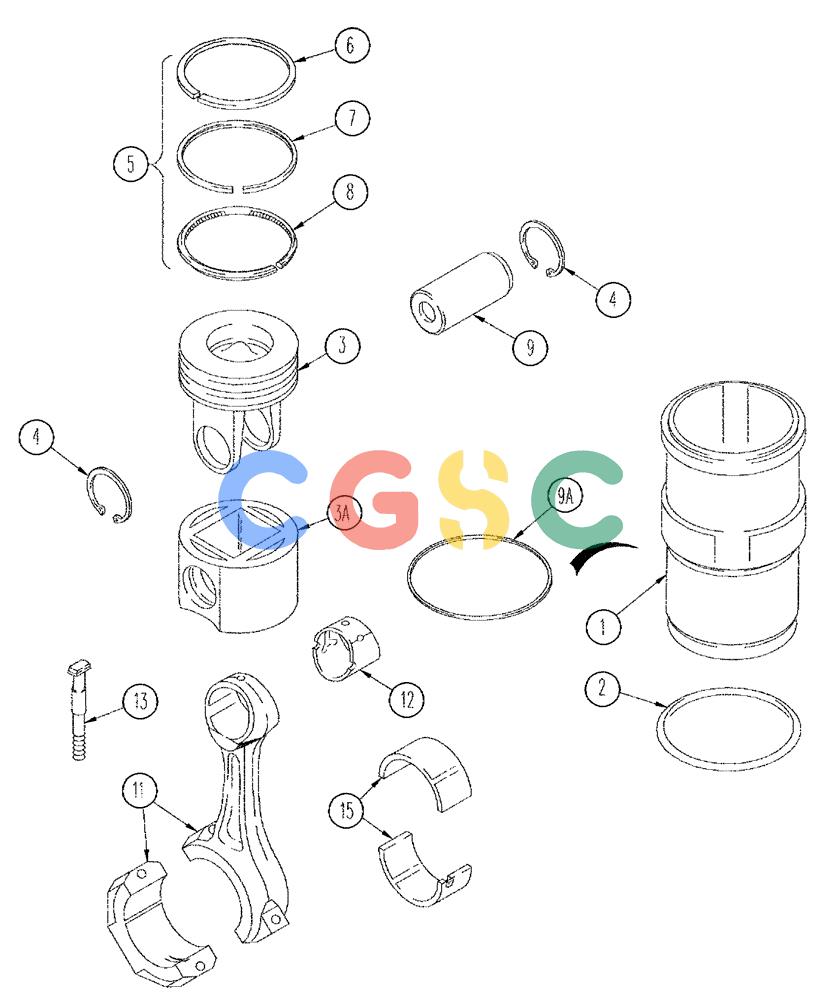

87422167
|
[6] |
KIT
|
CAS
Piston, Standard Superseded by part number: 84148666, J948095, J907177
|
| 1. |
J948095
|
[1] |
SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L
|
CAS
|
| 2. |
J907177
|
[1] |
SEAL,118mm ID x 122.32mm OD x 4mm Thk
|
IH
Sealing
|
| . . |
87422166
|
[1] |
PISTON RINGS KIT
|
CAS
Piston, With Rings, Standard Superseded by part number: 87428848
|
| 3. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Piston
|
| 4. |
100-21175
|
[2] |
SNAP RING,1.75", Int, #175
|
CAS
Superseded by part number: 66967
|
| 5. |
J800912
|
[1] |
PISTON RINGS KIT
|
CAS
Standard
|
| 9. |
J934046
|
[6] |
PISTON PIN,45mm OD x 91mm L
|
CAS
|
| 9A. |
J924445
|
[1] |
SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk
|
CAS
|
| 9A. |
J924446
|
[1] |
SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk
|
CAS
|
| 9A. |
J924447
|
[1] |
SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk
|
CAS
|
| 9A. |
J924448
|
[1] |
SHIM,0.762mm Thk
|
CAS
|
| 9A. |
J924449
|
[1] |
SHIM,1.000mm Thk
|
CAS
|
| 11. |
JR945703
|
[6] |
REMAN-CONNECTING ROD
|
CAS
Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly
|
| 11. |
JC945703
|
[1] |
CORE-ROD CONNECTING
|
CAS
Return Number
|
| 11. |
J945703
|
[6] |
ROD
|
CAS
Connecting Superseded by part number: 87546493, 87546493, 87546566, 87546493, 87546566, 87546618
|
| 12. |
87687031
|
[1] |
BUSHING,45.02mm ID x 49.01mm OD x 43mm L
|
RAC
Connecting Rod
|
| 13. |
J944679
|
[2] |
BOLT
|
CAS
Special, Rod, Bearing Cap Superseded by part number: J944679AM
|
| 15. |
87443389
|
[6] |
BEARING LINER
|
BRR
Kit - Upper And Lower, Standard
|
| 15. |
84156219
|
[6] |
BEARING LINER
|
CAS
kit - upper and lower, 0.25 mm undersize
|
| 15. |
84156220
|
[6] |
BEARING SET
|
CAS
kit - upper and lower, 0.50 mm undersize
|
| 15. |
84156221
|
[6] |
BEARING SET
|
CAS
Kit - Upper and Lower, 0.75 mm Undersize
|
| 15. |
84156222
|
[6] |
BEARING SET
|
CAS
kit - upper and lower, 1.00 mm undersize
|
